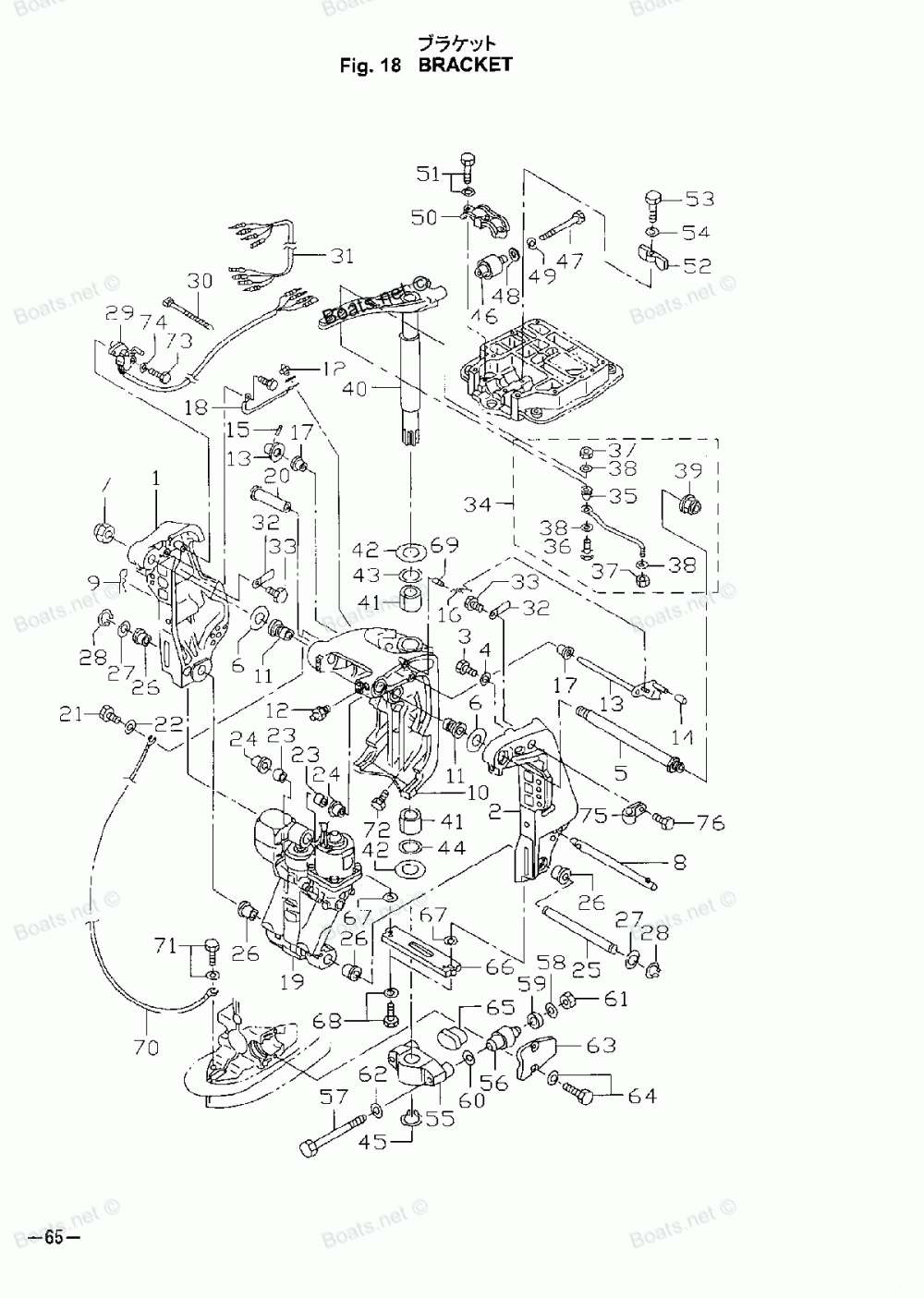

Кронштейн крепления к транцу
Кронштейн крепления к транцу

Кронштейн крепления к транцу

Nissan NSD90B

Кронштейн крепления к транцу

#

oem код

название

цена

1

STERN BRACKET RIGHT

STERN BRACKET RIGHT

2

STERN BRACKET LEFT

STERN BRACKET LEFT

3

Болт

Болт

4

Шайба

Шайба

5

BRACKET BOLT

BRACKET BOLT

6

WASHER, 25.7 - 50 - 1

WASHER, 25.7 - 50 - 1

7

NYLON NUT, 7/8

NYLON NUT, 7/8

8

Штанга

Штанга

9

PIN, THRUST ROD

PIN, THRUST ROD

10

SWIVEL BRACKET

SWIVEL BRACKET

11

BUSHING, 25.6 - 28.6 - 40

BUSHING, 25.6 - 28.6 - 40

12

GREASE NIPPLE

GREASE NIPPLE

13

TILT STOPPER

TILT STOPPER

14

GRIP, TILT STOPPER

GRIP, TILT STOPPER

15

Пружинный Штифт

Пружинный Штифт

16

SPRING, TILT STOPPER

SPRING, TILT STOPPER

17

COLLAR, 10.2 - 12 - 12

COLLAR, 10.2 - 12 - 12

18

GROUND CABLE

GROUND CABLE

19

POWER TRIM & TILT

POWER TRIM & TILT

20

CYLINDER PIN UPPER

CYLINDER PIN UPPER

21

Болт

Болт

22

WASHER, 6.5 - 23 - 1.5

WASHER, 6.5 - 23 - 1.5

23

BUSHING, 18 - 24 - 19

BUSHING, 18 - 24 - 19

24

BUSHING, 18 - 20 - 20.5

BUSHING, 18 - 20 - 20.5

25

CYLINDER PIN LOWER

CYLINDER PIN LOWER

26

BUSHING, 22 - 25.4 - 23.5

BUSHING, 22 - 25.4 - 23.5

27

WASHER, 22.6 - 30 - 2

WASHER, 22.6 - 30 - 2

28

C-RING, D=22

C-RING, D=22

29

TRIM SENDER

TRIM SENDER

30

BAND LEAD WIRE 104

BAND LEAD WIRE 104

31

EXTENSION CORD, TRIM SENDER

EXTENSION CORD, TRIM SENDER

32

CLAMP, 6.5 - 47.5P

CLAMP, 6.5 - 47.5P

33

Болт

Болт

34

DRAG LINK H

DRAG LINK H

35

SPACER, DRAG LINK H

SPACER, DRAG LINK H

36

BOLT, 3/8 - 50

BOLT, 3/8 - 50

37

NYLON NUT, 3/8

NYLON NUT, 3/8

38

WASHER, 9.6 - 18 - 2

WASHER, 9.6 - 18 - 2

39

SEAL RING, DRAG LINK

SEAL RING, DRAG LINK

40

STEERING SHAFT

STEERING SHAFT

41

BUSHING, 32 - 40 - 45

BUSHING, 32 - 40 - 45

42

THRUST PLATE

THRUST PLATE

43

SEAL RING, STEERING SHAFT

SEAL RING, STEERING SHAFT

44

O-RING, 4.5 - 32

O-RING, 4.5 - 32

45

C-RING, D=32

C-RING, D=32

46

UPPER, MOUNT RUBBER

UPPER, MOUNT RUBBER

47

BOLT, UPPER MOUNT RUBBER

BOLT, UPPER MOUNT RUBBER

48

DAMPER RUBBER, 21 - 36 - 5

DAMPER RUBBER, 21 - 36 - 5

49

WASHER, 11.5 - 32 - 3

WASHER, 11.5 - 32 - 3

50

CAP, UPPER MOUNT RUBBER

CAP, UPPER MOUNT RUBBER

51

Болт

Болт

52

DAMPER, UPPER MOUNT RUBBER

DAMPER, UPPER MOUNT RUBBER

53

Болт

Болт

54

WASHER, 6 - 16 - 1.5

WASHER, 6 - 16 - 1.5

55

MOUNT BRACKET

MOUNT BRACKET

56

LOWER, MOUNT RUBBER

LOWER, MOUNT RUBBER

57

BOLT, LOWER MOUNT RUBBER

BOLT, LOWER MOUNT RUBBER

58

WASHER, 13 - 34 - 3

WASHER, 13 - 34 - 3

60

WASHER, 12.2 - 25 - 2

WASHER, 12.2 - 25 - 2

61

NUT, 12 - P1.5

NUT, 12 - P1.5

62

Шайба

Шайба

63

CAP, LOWER MOUNT RUBBER

CAP, LOWER MOUNT RUBBER

64

BOLT, 8 - 25

BOLT, 8 - 25

65

Резиновый демпфер

Резиновый демпфер

66

Анод

Анод

68

Болт

Болт

69

PIN, TILT STOPPER SPRING

PIN, TILT STOPPER SPRING

70

GROUND CABLE

GROUND CABLE

71

Болт

Болт

72

BOLT, 12 - 20

BOLT, 12 - 20

73

Болт

Болт

75

CLAMP, 6.5 - 14L

CLAMP, 6.5 - 14L

76

Винт

Винт
