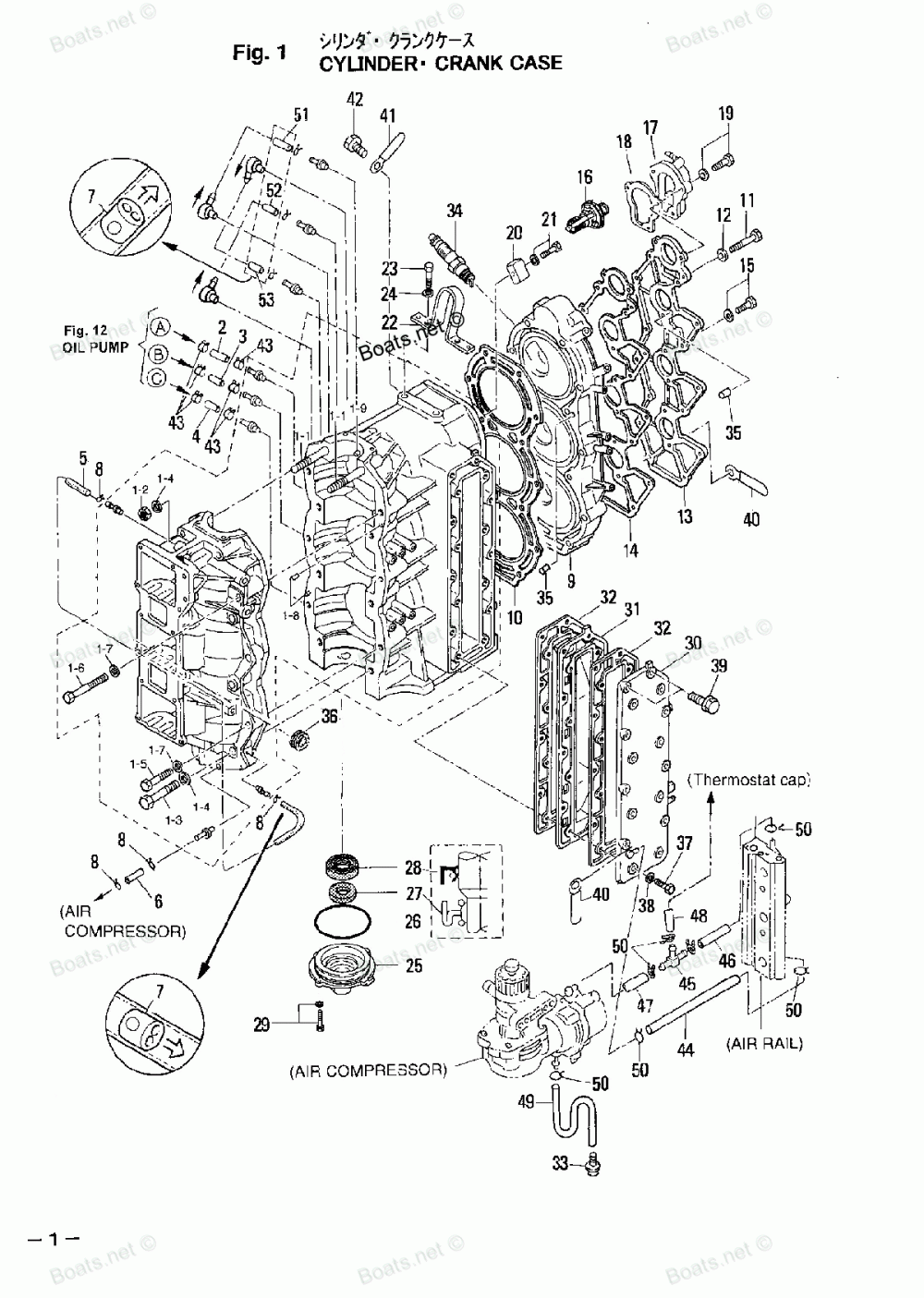

Cylinder - Crank Case

Nissan NSD90B
Nissan
#oem кодцена
1
3Y9B011000
CYLINDER, CRANK CASE
1
3T7B011000
CYLINDER, CRANK CASE
1
9153241065
Шпилька
2
9301211000
NUT, 10 - P1.25
2
98AL40335M
OIL PIPE
3
99AA20260M
OIL PIPE
3
9161291065
Болт
4
99AA20180M
OIL PIPE
4
3B7011160M
WASHER, 10.5 - 20 - 3.2
5
9161240850
Болт
5
98AL40520M
LUBRICATION PIPE D
6
9161240865
Болт
6
98AL40380M
OIL PIPE
7
345010150M
WASHER, 8.5 - 19.5 - 3.2
7
393011600M
LINE CHECK VALVE
8
345011110M
KNOCK, 6 - 12
8
338011330M
CLIP, 7
9
3T9B010011
Головка цилиндра
9
3T9001170M
KNOCK, MAIN BEARING
10
3T9010050M
Прокладка
11
9161290875
Болт
13
3T9B010210
Крышка, головки цилиндра
14
3T9010240M
GASKET, CYLINDER HEAD COVER
15
9101217625
Болт
16
3T9010300M
Термостат
16
3C7010300M
Термостат
17
3T9B010600
CAP, THERMOSTAT
18
3T9010320M
GASKET, THERMOSTAT CAP
19
9101135640
Болт
20
3B7602181M
Анод
21
9101035630
Болт
22
3B7B015130
HANGER
23
9101140820
Болт
24
9413220800
Пружинная шайба
25
3B7012911M
LOWER HEAD, CRANK CASE
26
171000530M
O-RING, 2 - 74.5
27
3C7012150M
OIL SEAL, 19.6 - 35 - 10
28
3T9001210M
OIL SEAL, 35 - 58 - 9
29
9101035620
Болт
30
3T9B023000
EXHAUST COVER, OUTER
31
3B7B023020
EXHAUST COVER, INNER
32
3B7023050M
GASKET, EXHAUST COVER
33
353011380M
WATER NIPPLE
34
970114016M
SPARK PLUG, CHAMPION RC10ECC
34
970111108M
SPARK PLUG, NGK PZFR6H
35
334650120M
KNOCK, 4 - 10
36
3B7760930M
GROMMET, 25 - 5
37
9101140835
Болт
38
9401210800
Шайба
39
9101135840
Болт
40
3T5069710M
CLAMP, 8.5 - 85P
41
309069720M
CLAMP, 6.5 - 47.5P
42
9101036612
Болт
43
3B7090520M
CLIP, 6.9
44
98AB50290M
Водопровод
45
3T7011750M
T-NIPPLE (WITH VALVE)
46
98AB50065M
Водопровод
48
98AB50115M
Трубка
50
338022150M
CLIP, 10
51
98AL40185M
LUBRICATION PIPE
53
98AL40185M
LUBRICATION PIPE
