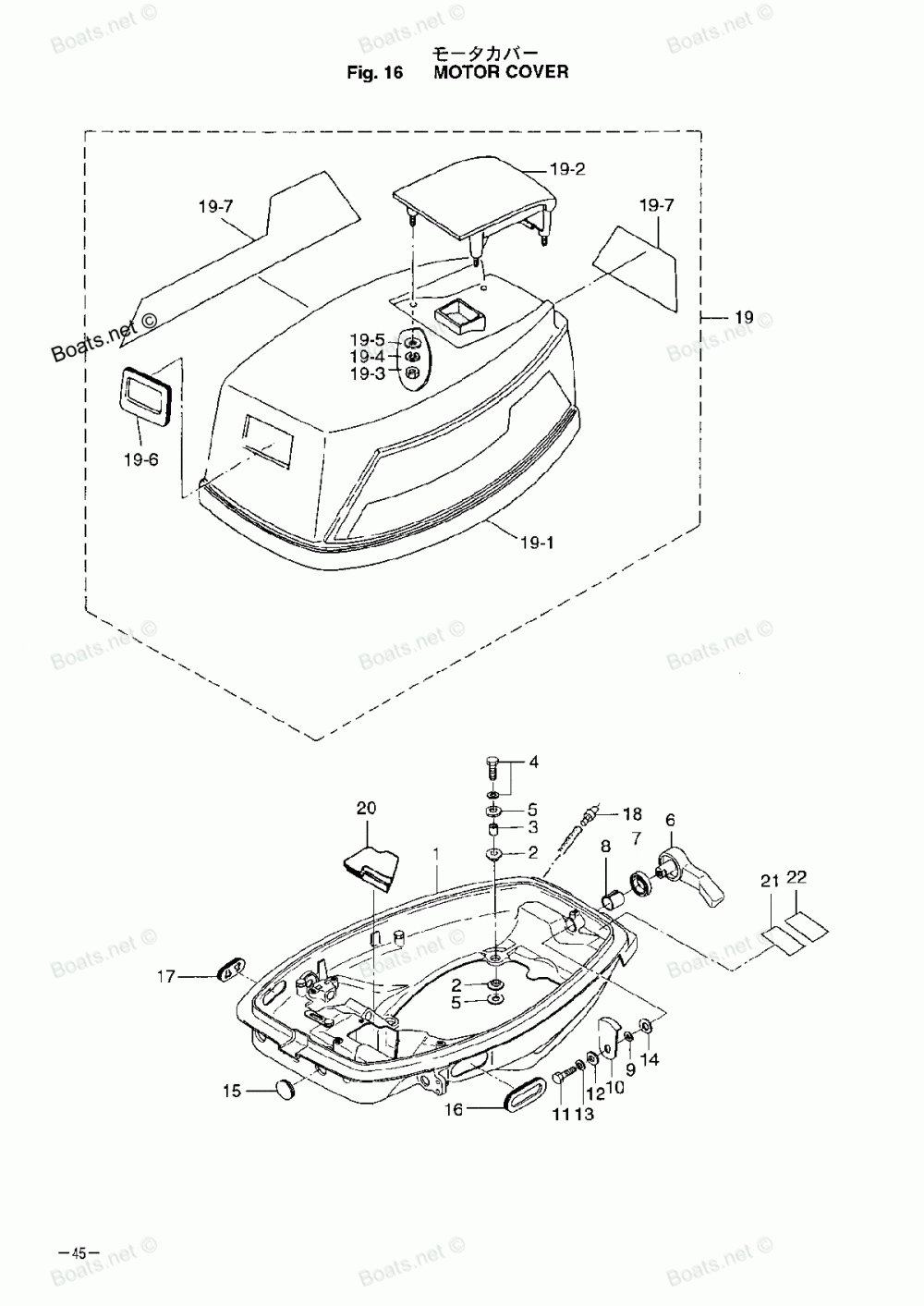

Колпак мотора

Nissan NS25C3
Nissan
#oem кодцена
1
346S671003
MOTOR COVER LOWER
2
346671130M
MOUNT RUBBER, MOTOR COVER LOWER
3
346671140M
SPACER, 6.2 - 9 - 15.7
4
9101130630
Болт
5
346671150M
WASHER, 6.5 - 21 - 1
6
338S671410
HOOK LEVER
7
338671470M
SEAL RING, HOOK LEVER
8
350671050M
BUSHING, 14 - 16.5 - 17.7
9
9414031400
WAVE WASHER, D=14
10
345671421M
COVER HOOK
11
9101030612
Болт
12
3c8663080M
WASHER, 6 - 16 - 1.5
13
9413030600
Пружинная шайба
14
3C8671460M
WASHER, 14 - 22 - 1
15
345671610M
GROMMET, 22 - 3
16
346671650M
GROMMET "B", MOTOR COVER LOWER
17
353671620M
GROMMET, BATTERY CABLE
18
353011380M
WATER NIPPLE
19
3P0S675000
MOTOR COVER UPPER
19-1
3F3675010M
SEAL RUBBER, MOTOR COVER UPPER
19-2
349S675210
Ручка наклона
19-3
9301030600
Гайка
19-5
309700160M
WASHER, 6.5 - 16 - 2
19-6
344675030M
SEAL RUBBER, STARTER
19-7
3P0S878010
DECAL SET
20
346671610M
GROMMET "D", MOTOR COVER LOWER
21
332720250M
LABEL, SPARK PLUG
22
361720260M
LABEL, SPARK PLUG (WITH RESISTANCE)
