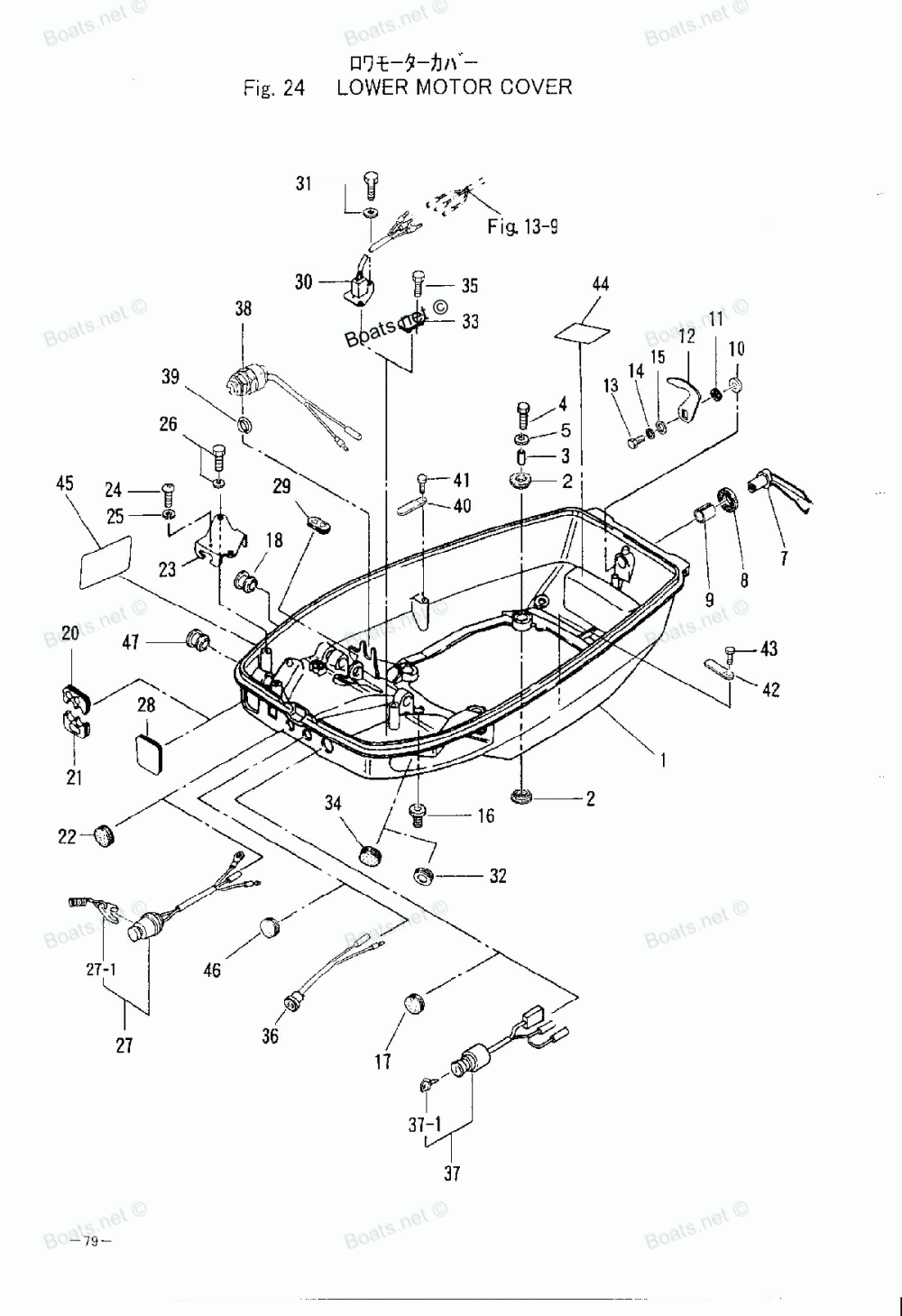

Lower Motor Cover

Nissan NS40D2
Nissan
#oem кодцена
1
3C8S671000
LOWER MOTOR COVER
2
346671130M
MOUNT RUBBER LOWER COVER
3
346671140M
SPACER, 6.2-9-15.7
4
9101140630
Болт
4
9101130630
Болт
5
346671150M
WASHER, 6.5-21-1
7
3C8S671410
HOOK WASHER
8
338671470M
SEAL RING, HOOK LEVER
9
369671050M
BUSHING, HOOK LEVER
10
3C8671460M
WASHER, 14-22-1
11
9414031400
WAVE WASHER, D=14
12
3C8671421M
COVER HOOK
13
9101140612
Болт
14
9413030600
Пружинная шайба
15
3c8663080M
Шайба, 6х16х1.5
16
345662260M
GROMMET, 17-3
17
345760920M
GROMMET, MAIN SWITCH
18
3B7010460M
Заглушка
19
3B7010460M
HOLE PLUG
20
3C8837320M
GROMMET, REMOTE CONTROL CABLE
21
3C8761161M
GROMMET, CORD
21
3C8761160M
GROMMET CORD
22
345671170M
GROMMET, 17-2.7
23
3C8838200M
BRACKET, REMOTE CONTROL CABLE
24
3C8838210M
Винт
25
9413030400
Пружинная шайба
26
9101035616
Болт
26
9101135616
Болт
27
3C8068200M
LANYARD STOP SWITCH
27-1
353068210M
LOCK, LANYARD STOP SWITCH
28
3C8671620M
GROMMET, BATTERY CORD
29
3C8636210M
GROMMET, THROTTLE CABLE
29
3C8636240M
GROMMET, THROTTLE HOLE
30
3C8726130M
SWITCH "B", POWER TRIM & TILT
31
9101035612
Болт
31
9101135612
Болт
32
338671630M
GROMMET, 18-2.5
33
3C8726190M
GROMMET, POWER TRIM & TILT SWITCH
35
9101210610
Болт
36
3C8710400M
PILOT LAMP
37
3C8760202M
MAIN SWITCH ("F" TYPE)
37-1
3F3762180M
KEY, MAIN SWITCH (NO.302)
37-1
3F3762190M
KEY, MAIN SWITCH (NO.303)
37-1
3F3762170M
KEY, MAIN SWITCH (NO.301)
38
3C8760800M
NEUTRAL SWITCH
39
3B7637310M
WASHER, 12.5-24-1
40
309069720M
CLAMP 6.5-47.5P
41
9101030610
Болт
41
9101130610
Болт
45
3C7720300M
LABEL, INTERFERENCE
47
3B2671870M
GROMMET, THROTTLE SHAFT
