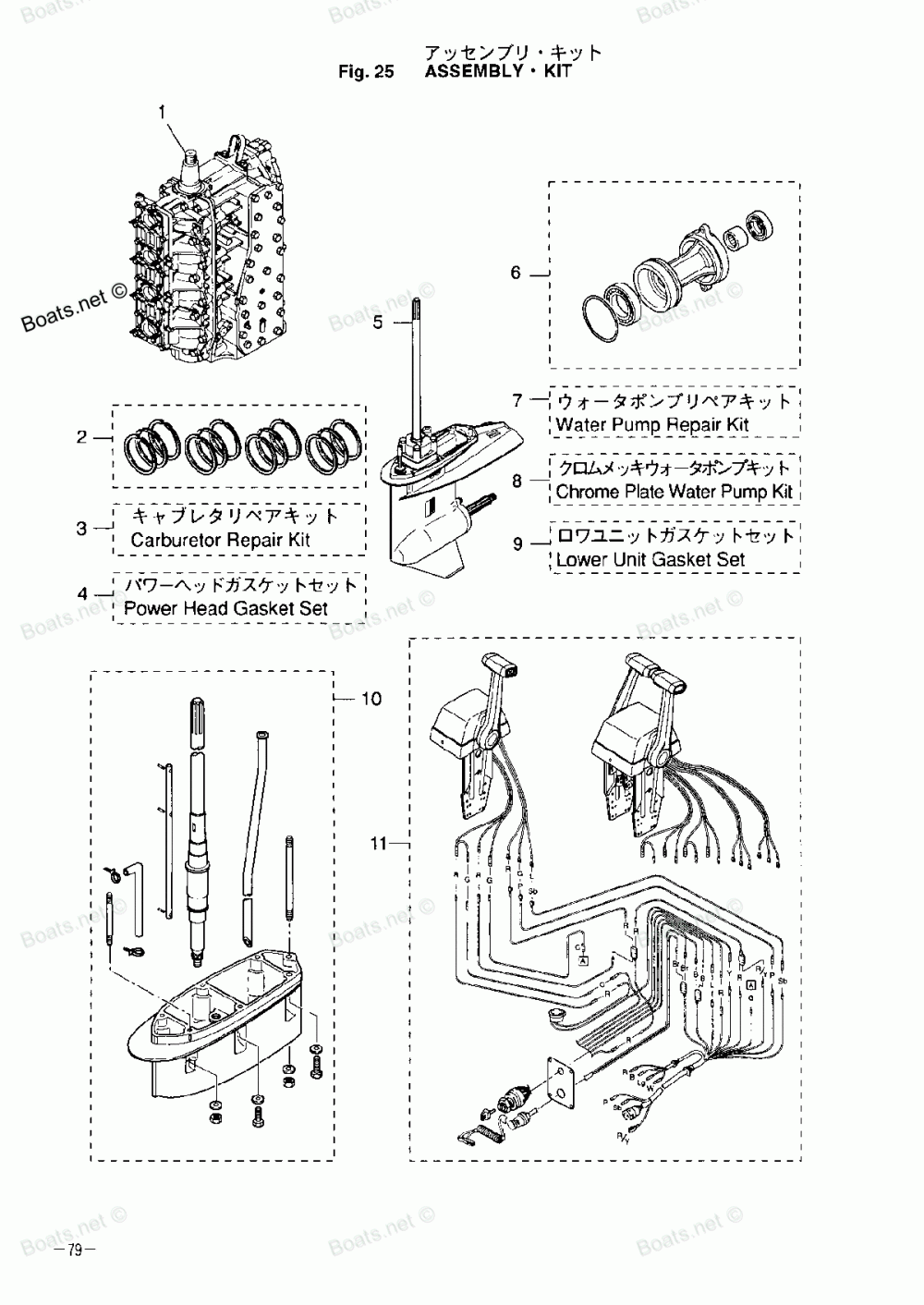

Assembly Kit Каталог оригинальных запчастей для лодочных моторов Nissan NS120A2 (2005)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Assembly Kit

Nissan NS120A2

Assembly Kit

#

oem код

название

цена

1

ENGINE SHORT BLOCK

ENGINE SHORT BLOCK

2

PISTON RING 1ST

PISTON RING 1ST

2

PISTON RING 2ND (0.5MM O/S)

PISTON RING 2ND (0.5MM O/S)

2

PISTON RING 2ND

PISTON RING 2ND

2

PISTON RING SET (STANDARD)

PISTON RING SET (STANDARD)

2

PISTON RING SET (0.5 O/S)

PISTON RING SET (0.5 O/S)

2

PISTON RING 1ST (0.5 O/S)

PISTON RING 1ST (0.5 O/S)

3

Прокладка карбюратора

Прокладка карбюратора

3

GASKET "B", CARBURETOR COVER

GASKET "B", CARBURETOR COVER

3

PLATE A, COVER GASKET

PLATE A, COVER GASKET

3

ARM PIN, FLOAT

ARM PIN, FLOAT

3

Винт

Винт

3

O-RING, FLOAT CHAMBER

O-RING, FLOAT CHAMBER

3

PLATE B, COVER GASKET

PLATE B, COVER GASKET

3

FLOAT VALVE

FLOAT VALVE

3

RUBBER CAP

RUBBER CAP

3

CARBURETOR REPAIR KIT

CARBURETOR REPAIR KIT

3

Винт

Винт

3

Винт

Винт

3

Зажим

Зажим

3

Прокладка

Прокладка

3

Поплавок

Поплавок

3

VALVE PIN

VALVE PIN

3

GASKET A, CARBURETOR COVER

GASKET A, CARBURETOR COVER

3

CARBURETOR REPAIR KIT

CARBURETOR REPAIR KIT

4

O-RING, 1.6-19.2

O-RING, 1.6-19.2

4

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

4

GASKET, INLET MANIFOLD

GASKET, INLET MANIFOLD

4

Прокладка

Прокладка

4

GASKET, CYLINDER HEAD COVER

GASKET, CYLINDER HEAD COVER

4

O-RING, "B"

O-RING, "B"

4

GASKET, 40-62-2

GASKET, 40-62-2

4

GASKET, AIR SILENCER

GASKET, AIR SILENCER

4

GASKET, THERMOSTAT CAP

GASKET, THERMOSTAT CAP

4

GASKET "A", CHECK VALVE

GASKET "A", CHECK VALVE

4

GASKET, ENGINE BASE

GASKET, ENGINE BASE

4

GASKET, AIR SILENCER COVER

GASKET, AIR SILENCER COVER

4

GASKET "B", CHECK VALVE

GASKET "B", CHECK VALVE

4

POWER HEAD GASKET SET

POWER HEAD GASKET SET

4

Прокладка

Прокладка

4

O-RING, 2 - 74.5

O-RING, 2 - 74.5

4

O-RING A

O-RING A

4

OIL SEAL, 35 - 58 - 9

OIL SEAL, 35 - 58 - 9

4

OIL SEAL, 19.6-35-10

OIL SEAL, 19.6-35-10

5

LOWER UNIT ASSEMBLY "UL"

LOWER UNIT ASSEMBLY "UL"

5

LOWER UNIT ASSEMBLY "L"

LOWER UNIT ASSEMBLY "L"

6

PROPELLER SHAFT HOUSING ASSEMBLY

PROPELLER SHAFT HOUSING ASSEMBLY

7

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

7

Болт

Болт

7

Импеллер

Импеллер

7

GASKET, PUMP GUIDE PLATE

GASKET, PUMP GUIDE PLATE

7

Пружинная шайба

Пружинная шайба

7

KEY, WATER PUMP IMPELLER

KEY, WATER PUMP IMPELLER

7

SEAL, PUMP CASE

SEAL, PUMP CASE

7

Шайба

Шайба

7

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

7

LINER, PUMP CASE

LINER, PUMP CASE

7

Болт

Болт

7

Импеллер

Импеллер

7

Шайба

Шайба

7

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

8

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

8

CHROME PLATED WATER PUMP KIT

CHROME PLATED WATER PUMP KIT

8

LINER, CHROME PLATED PUMP CASE

LINER, CHROME PLATED PUMP CASE

9

PACKING, TRIM TAB

PACKING, TRIM TAB

9

GASKET, 10.1 - 15 - 1

GASKET, 10.1 - 15 - 1

9

SHIM. 35-41.9-0.5

SHIM. 35-41.9-0.5

9

GASKET, DRIVER SHAFT HOUSING

GASKET, DRIVER SHAFT HOUSING

9

O-RING, 3.1 - 94.4

O-RING, 3.1 - 94.4

9

O-RING, 3.1-54.4

O-RING, 3.1-54.4

9

LOWER UNIT GASKET SET

LOWER UNIT GASKET SET

9

Прокладка глушителя

Прокладка глушителя

9

OIL SEAL, 30-50-12

OIL SEAL, 30-50-12

9

O-RING, 1.9-6.8

O-RING, 1.9-6.8

9

GASKET, EXHAUST HOUSING

GASKET, EXHAUST HOUSING

9

OIL SEAL, 22 - 42 - 7

OIL SEAL, 22 - 42 - 7

9

O-RING, 3.5-27.7

O-RING, 3.5-27.7

9

Прокладка глушителя

Прокладка глушителя

9

GASKET, 8.1-15-1

GASKET, 8.1-15-1

9

OIL SEAL, 22-42-7

OIL SEAL, 22-42-7

10

EXTENSION HOUSING KIT XL

EXTENSION HOUSING KIT XL

11

TOP MOUNT REMOTE CONTROL ASSEMBLY KIT (RC6E)

TOP MOUNT REMOTE CONTROL ASSEMBLY KIT (RC6E)

11

TOP MOUNT REMOTE CONTROL ASSEMBLY KIT TWIN (RC6ET)

TOP MOUNT REMOTE CONTROL ASSEMBLY KIT TWIN (RC6ET)
