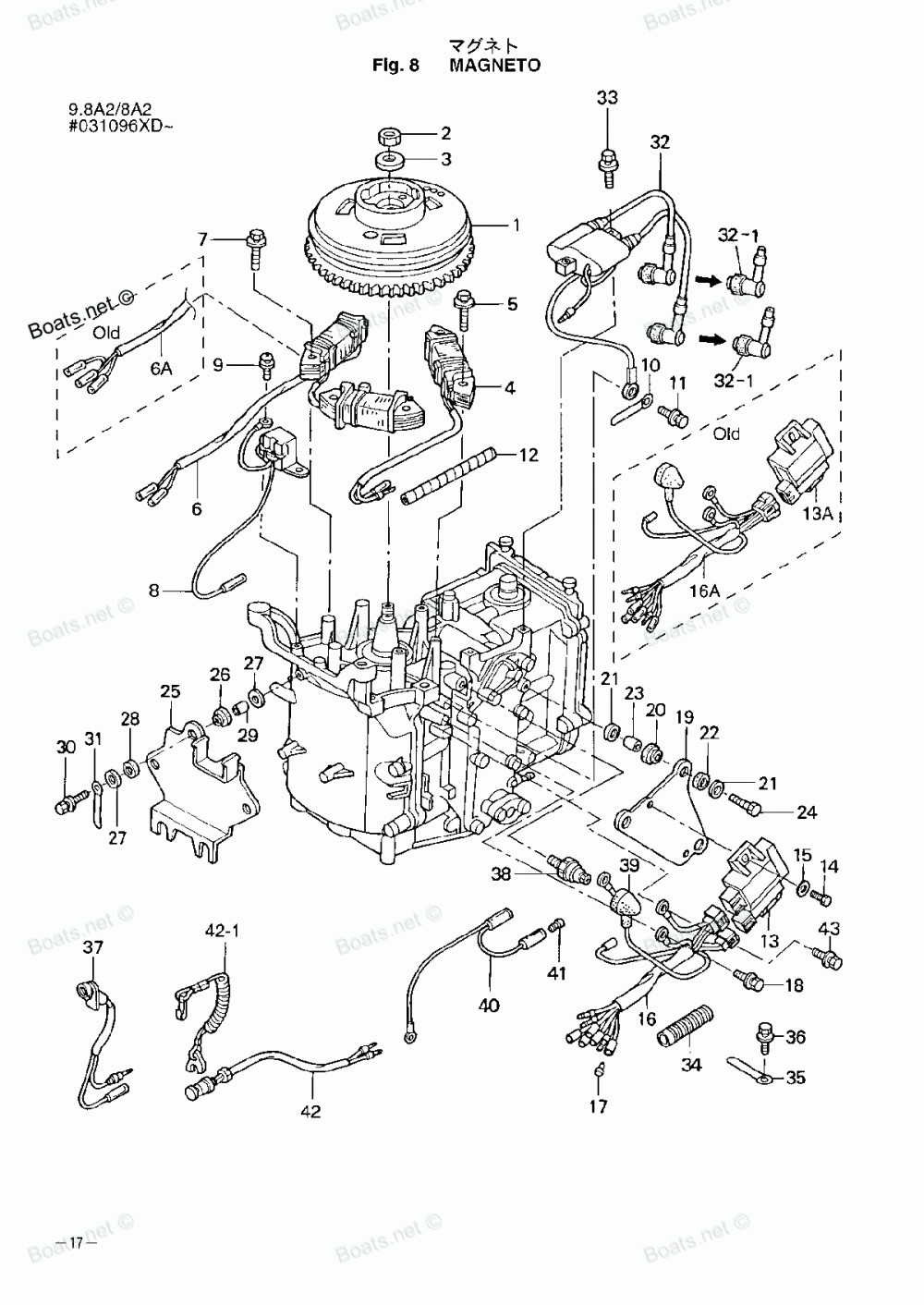

ГЕНЕРАТОР

Nissan NSF8A2
Nissan
#oem кодцена
1
3AA060910M
FLYWHEEL CUP
2
369001320M
NUT, 12 - P1.25
3
9401211200
Шайба
4
3V1060210M
EXCITER COIL (OLD)
4
3AA060210M
EXCITER COIL (NEW)
5
9101035630
Болт
6
3AA060230M
ALTERNATOR (NEW)
6A
3V1060230M
ALTERNATOR (OLD)
8
3V1060710M
PULSER COIL
9
9215030512
Винт
10
309069720M
CLAMP, 6.5 - 47.5P
11
9101035616
Болт
12
3V1761480M
SPIRAL TUBE PROTECTOR
13
3AA060600M
C.D. UNIT (CU7256) (NEW)
13A
3V1060601M
C.D. UNIT (CU7228A) (OLD)
14
3V1601080M
BOLT, 6 - 16, PRE-COATED
15
3c8663080M
WASHER, 6 - 16 - 1.5
16
3AA061670M
CORD ASSEMBLY, C.D. UNIT (NEW)
16A
3V1061670M
CORD ASSEMBLY, C.D. UNIT (OLD)
17
3A3760370M
PLUG "B", CABLE TERMINAL
18
9101035612
Болт
19
3V1060610M
BRACKET, C.D. UNIT
20
3T5069200M
MOUNT RUBBER, 8.5 - 18 - 7
22
3B7063050M
MOUNT RUBBER, 9 - 16 - 4.3
23
3A0760790M
COLLAR, 6.2 - 9 - 7.4
24
9101130625
Болт
25
3V1069000M
ELECTRIC BRACKET
26
3T5069200M
RUBBER MOUNT, 8.5 - 18 - 7
27
3c8663080M
WASHER, 6 - 16 - 1.5
28
3B7063050M
RUBBER MOUNT, 9 - 16 - 4.3
29
3A0760790M
COLLAR, 6.2 - 9 - 7.4
30
9101130620
Болт
31
3T4069720M
CLAMP, 6.5 - 87P
32
3V1060400M
Катушка зажигания
32-1
3H6069990M
PLUG CAP (WITH RESISTANCE)
33
9101035625
Болт
34
3V1061330M
Протектор
36
9101135612
Болт
37
3R3710400M
PILOT LAMP
38
3H6076110M
Датчик давления масла
39
3H6076120M
GROMMET, OIL PRESSURE SWITCH
40
3V5726780M
SEPARATE CORD (BLACK)
41
3A3760370M
PLUG "B", CABLE TERMINAL
42
398068300M
LANYARD STOP SWITCH "A"
42-1
353068210M
LOCK, STOP SWITCH
43
9101035612
Болт
