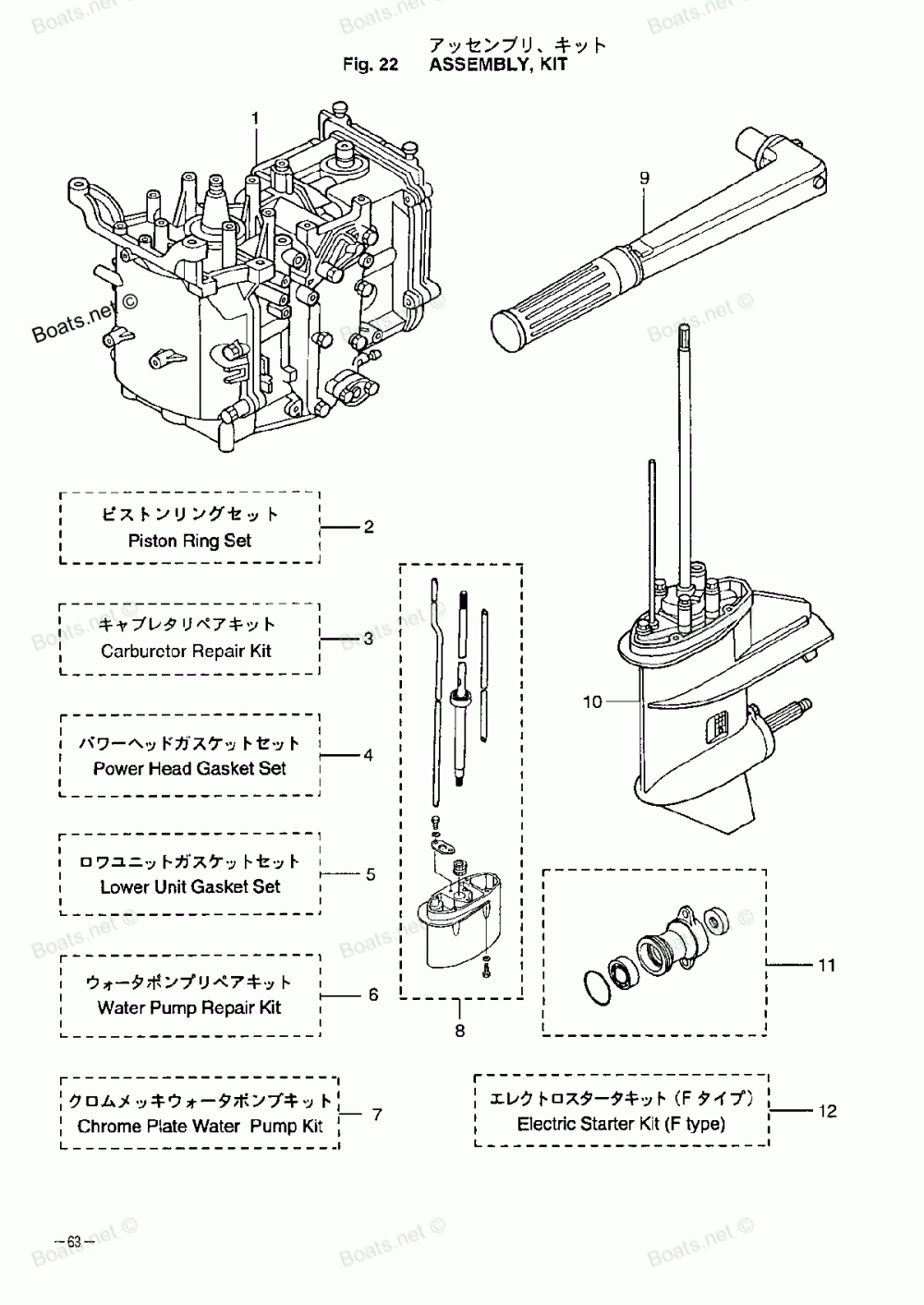

Assembly Kit

Nissan NSF9.8A2

Assembly Kit

#

oem код

название

цена

1

ENGINE SHORT BLOCK

ENGINE SHORT BLOCK

2

PISTON RING SET (0.5MM O/S)

PISTON RING SET (0.5MM O/S)

2

PISTON RING TOP (0.5MM O/S)

PISTON RING TOP (0.5MM O/S)

2

PISTON RING 2ND (0.5MM O/S)

PISTON RING 2ND (0.5MM O/S)

2

PISTON RING SET (STANDARD)

PISTON RING SET (STANDARD)

2

PISTON RING OIL (0.5MM O/S)

PISTON RING OIL (0.5MM O/S)

2

PISTONG RING TOP

PISTONG RING TOP

2

PISTON RING 2ND

PISTON RING 2ND

2

PISTONG RING OIL

PISTONG RING OIL

3

GASKET, CARBURETOR COVER

GASKET, CARBURETOR COVER

3

ARM PIN, FLOAT

ARM PIN, FLOAT

3

Винт

Винт

3

Поплавок

Поплавок

3

Винт

Винт

3

Прокладка

Прокладка

3

CARBURETOR REPAIR KIT

CARBURETOR REPAIR KIT

3

Винт

Винт

3

Уплотнительное кольцо

Уплотнительное кольцо

3

GASKET, DRAIN SCREW

GASKET, DRAIN SCREW

3

FLOAT VALVE

FLOAT VALVE

4

GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

4

O-RING, 2.4 - 35.2

O-RING, 2.4 - 35.2

4

GASKET, THERMOSTAT

GASKET, THERMOSTAT

4

O-RING, 2.62 - 18.72

O-RING, 2.62 - 18.72

4

GASKET, ANODE CAP

GASKET, ANODE CAP

4

POWER HEAD GASKET SET

POWER HEAD GASKET SET

4

GASKET, OIL PUMP

GASKET, OIL PUMP

4

GASKET, ENGINE BASEMENT

GASKET, ENGINE BASEMENT

4

Прокладка

Прокладка

4

OIL SEAL, 18 - 35 - 8

OIL SEAL, 18 - 35 - 8

4

OIL SEAL, 30 - 45 - 8

OIL SEAL, 30 - 45 - 8

4

Прокладка, крышки головки

Прокладка, крышки головки

4

OIL SEAL, 12 - 28 - 5

OIL SEAL, 12 - 28 - 5

4

GASKET, INTAKE MANIFOLD

GASKET, INTAKE MANIFOLD

4

O-RING, 3.1 - 24.4

O-RING, 3.1 - 24.4

4

Прокладка карбюратора

Прокладка карбюратора

5

GASKET, 8.2 - 14 - 1

GASKET, 8.2 - 14 - 1

5

O-RING, 2.4 - 15.4

O-RING, 2.4 - 15.4

5

O-RING, 3.2 - 47

O-RING, 3.2 - 47

5

GASKET, DRIVE SHAFT HOUSING

GASKET, DRIVE SHAFT HOUSING

5

OIL SEAL, 15 - 28 - 10

OIL SEAL, 15 - 28 - 10

5

Прокладка глушителя

Прокладка глушителя

5

GASKET, GUIDE PLATE

GASKET, GUIDE PLATE

5

GASKET, LOWER PUMP CASE

GASKET, LOWER PUMP CASE

5

OIL SEAL, 12 - 24 - 8

OIL SEAL, 12 - 24 - 8

5

LOWER UNIT GASKET SET

LOWER UNIT GASKET SET

5

O-RING, 2.5 - 4.9

O-RING, 2.5 - 4.9

6

LINER, PUMP CASE

LINER, PUMP CASE

6

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

6

Болт

Болт

6

Шайба

Шайба

6

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

6

Импеллер

Импеллер

6

KEY, WATER PUMP IMPELLER

KEY, WATER PUMP IMPELLER

7

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

7

CHROME PLATED WATER PUMP KIT

CHROME PLATED WATER PUMP KIT

7

LINER, PUMP CASE

LINER, PUMP CASE

8

DRIVE SHAFT "UL"

DRIVE SHAFT "UL"

8

EXTENSION HOUSING KIT "UL"

EXTENSION HOUSING KIT "UL"

8

CAM ROD "UL"

CAM ROD "UL"

8

EXTENSION HOUSING KIT "UL"

EXTENSION HOUSING KIT "UL"

8

WATER PIPE "UL"

WATER PIPE "UL"

8

Болт

Болт

8

BUSHING, DRIVE SHAFT

BUSHING, DRIVE SHAFT

8

STOPPER, BUSHING

STOPPER, BUSHING

8

Болт

Болт

9

HANDLE ASSEMBLY

HANDLE ASSEMBLY

10

LOWER UNIT ASSEMBLY "S"

LOWER UNIT ASSEMBLY "S"

10

LOWER UNIT ASSEMBLY "L"

LOWER UNIT ASSEMBLY "L"

11

PROPELLER SHAFT HOUSING ASSEMBLY

PROPELLER SHAFT HOUSING ASSEMBLY

12

Болт

Болт

12

NEUTRAL SWITCH

NEUTRAL SWITCH

12

Шайба

Шайба

12

STAY, FUSE HOLDER

STAY, FUSE HOLDER

12

WASHER, 6 - 16 - 1.5

WASHER, 6 - 16 - 1.5

12

TERMINAL CAP

TERMINAL CAP

12

ACTUATOR, NEUTRAL SWITCH

ACTUATOR, NEUTRAL SWITCH

12

ELECTRIC STARTER KIT ("F" TYPE)

ELECTRIC STARTER KIT ("F" TYPE)

12

BRACKET, STARTER MOTOR

BRACKET, STARTER MOTOR

12

HOLDER, CABLE TERMINAL

HOLDER, CABLE TERMINAL

12

RUBBER MOUNT, 19 - 16 - 4.3

RUBBER MOUNT, 19 - 16 - 4.3

12

STARTER CABLE

STARTER CABLE

12

MAIN SWITCH

MAIN SWITCH

12

FLYWHEEL CUP

FLYWHEEL CUP

12

STARTER SOLENOID

STARTER SOLENOID

12

STAY TERMINAL HOLDER

STAY TERMINAL HOLDER

12

COLLAR, 6.2 - 9 - 7.4

COLLAR, 6.2 - 9 - 7.4

12

SPIRAL TUBE PROTECTOR

SPIRAL TUBE PROTECTOR

12A

ELECTRIC STARTER KIT ("F" TYPE)

ELECTRIC STARTER KIT ("F" TYPE)

12

ALTERNATOR

ALTERNATOR

12

Регулятор напряжения

Регулятор напряжения

12

COLLAR, 6 - 8 - 6

COLLAR, 6 - 8 - 6

12

Болт

Болт

12

TERMINAL CAP

TERMINAL CAP

12A

ALTERNATOR

ALTERNATOR

12

Болт

Болт

12

Болт

Болт

12

Болт

Болт

12

Стартер электрический

Стартер электрический

12

TERMINAL CAP

TERMINAL CAP

12A

Регулятор напряжения

Регулятор напряжения

12

ELECTRIC BRACKET

ELECTRIC BRACKET

12

BATTERY CABLE (L=2000)

BATTERY CABLE (L=2000)

12

COVER, TERMINAL HOLDER

COVER, TERMINAL HOLDER

12

Болт

Болт

12

FUSE WIRE

FUSE WIRE

12

RUBBER MOUNT, 8.5 - 18 - 7

RUBBER MOUNT, 8.5 - 18 - 7
