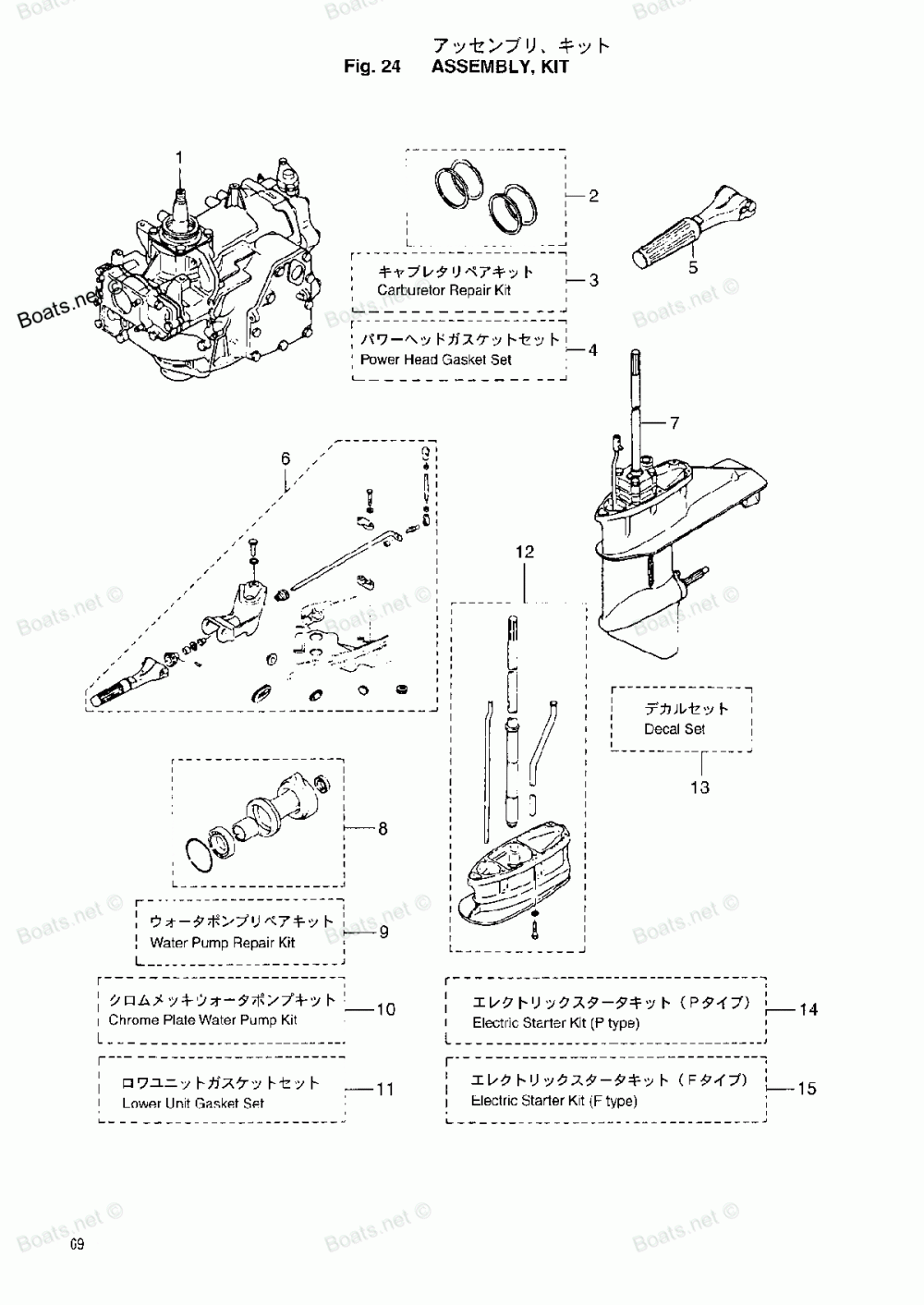

Assembly Kit Каталог оригинальных запчастей для лодочных моторов Nissan NS40C (2004)

Assembly Kit

Nissan NS40C

oem код

название

цена

3C1B871000

ENGINE SHORT BLOCK (NEW)

361B871000

ENGINE SHORT BLOCK (OLD)

361000140M

PISTON RING 1ST (0.5MM O/S)

345000140M

PISTON RING 2ND (0.5MM O/S)

361871230M

PISTON RING SET (STD)

361000110M

PISTON RING 1ST (STD)

345000110M

PISTON RING 2ND (STD)

361871240M

PISTON RING SET (0.5MM O/S)

Зажим

Винт

STOP SCREW

Поплавок

ADJUST SCREW

ARM PIN, FLOAT

CARBURETOR REPAIR KIT

3B7032400M

FLOAT VALVE

345020110M

Прокладка карбюратора

345032430M

O-RING, 1.3-5.7

336032930M

Уплотнительное кольцо

VALVE PIN

O-RING, 1.9-64

Прокладка

OIL SEAL, 30-45-8

O-RING. 2.5-4.5

OIL SEAL, 25-55-10

GASKET, DRIVE SHAFT HOUSING

338014030M

O-RING, 2-55.5

361871211M

POWER HEAD GASKET SET

345013030M

GASKET, ENGINE BASEMENT

345021040M

GASKET "A", INLET MANIFOLD

345010050M

GASKET. CYLINDER HEAD

345012150M

OIL SEAL, 17-30-8

345021050M

GASKET "B", INLET MANIFOLD

346010320M

GASKET. THERMOSTAT

346049010M

Прокладка

345023050M

GASKET, EXHAUST COVER

HANDLE ASSEMBLY

Гайка

Шайба

Болт

ROD SNAP, 5-3

SUPPORTER, THROTTLE SHAFT "B"

COLLAR, 9.8-12-7.5

5 ROD JOINT

Болт

UNIVERSAL PINION

CABLE PIN

Шайба

THROTTLE SHAFT "B"

Гайка

GROMMET, THROTTLE SHAFT

SPRING PIN, 4-14

WASHER, 8.5-18-1.6

LINK ROD, 5-75L

COLLAR, 15.9-17.1-9

R-PIN, D=8

HANDLE KIT

LOWER UNIT ASSEMBLY "S"

345S601000

PROPELLER SHAFT HOUSING ASSEMBLY

348650110M

LINER, PUMP CASE

348650250M

GUIDE PLATE, WATER PUM

348650291M

GASKET, PUMP GUIDE PLATE

348650180M

GASKET, PUMP CASE UPPER

361873220M

WATER PUMP REPAIR KIT

9101135652

Болт

345650210M

Импеллер

332650220M

KEY, WATER PUMP IMPELLER

361652390M

GUIDE PLATE, WATER PUMP

361652310M

CHROME PLATE WATER PUMP KIT

LINER, PUMP CASE

O-RING, 3.2-47

O-RING. 1.9-6.8

LOWER UNIT GASKET SET

O-RING , 2.4-15.4

GASKET, 8.2-14-1

GASKET, 6.2-11-1

O-RING 3.53-69.44

OIL SEAL. 22-36-10

OIL SEAL. 17-33-9.5

GASKET, PUMP GUIDE PLATE

Болт

DRIVE SHAFT "UL"

WATER PIPE "UL"

CAM ROD "UL"

EXTENSION HOUSING KIT "UL"

345S611100

EXTENSION HOUSING "UL"

361S878011

DECAL SET

334761410M

GROUND CABLE

345760810M

BRACKET, NEUTRAL SWITCH

Гайка

Болт

HOOK, CHOKE SOLENOID

NYLON NUT, 4P - 0.7

Гайка

Болт

Болт

Болт

CLAMP, 9-12U

SPRING PIN 3-12

Пружинная шайба

STARTER CORD

Гайка

SPACER, 6-8-28.5

Гайка

ROD, CHOCK SHAFT

HOLDER, CABLE TERMINAL

CAP, CORD

Пружинная шайба

Болт

NYLON NUT, 4P-0.7

Пружинная шайба

COLLAR, 6.4-10-4.7

BAND, LEAD WIRE

Регулятор напряжения

FUSE WIRE

Винт

STARTER SOLENOID

Болт

ELECTRIC STARTER KIT (P TYPE)

CAP, CORD

GROUND CABLE

BATTERY CORD

BRACKET, CHOKE SOLENOID

309069720M

CLAMP, 6.5-47.5P

346760100M

Стартер электрический

CHOKE SOLENOID

Винт

NEUTRAL SWITCH

SPACER, NEUTRAL SWITCH

3B7637310M

WASHER, 12.5-24-1

398760830M

ACTUATOR, NEUTRAL SWITCH

361760820M

PLATE, NEUTRAL SWITCH

361760260M

MAIN SWITCH

361763000M

ELECTRIC STARTER KIT (F TYPE)
