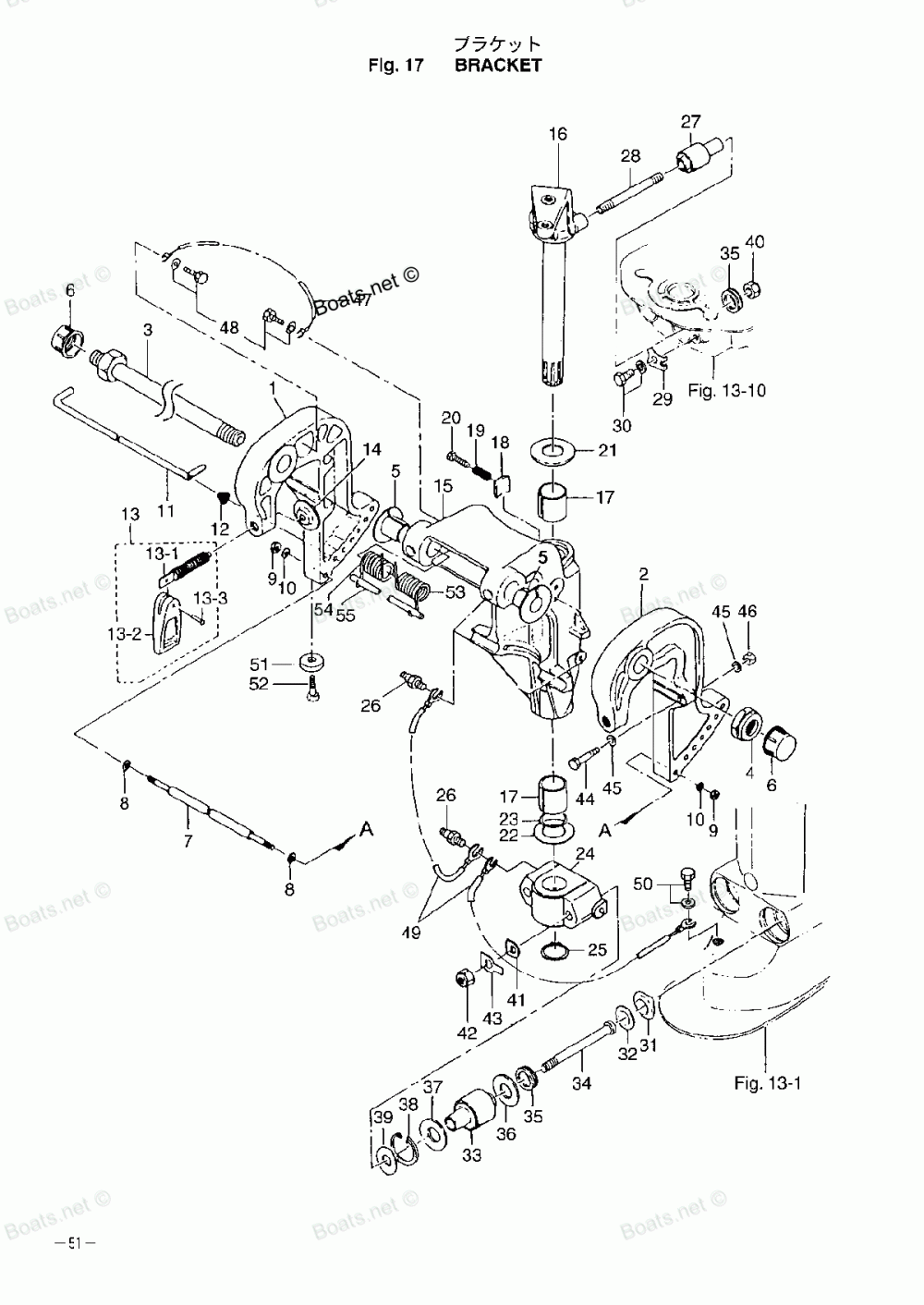

Кронштейн крепления к транцу

Nissan NS40C
Nissan
#oem кодцена
1
349S621120
STERN BRACKET (RIGHT)
2
349S621130
STERN BRACKET (LEFT)
3
346621910M
BRACKET BOLT
4
346621240M
NYLON NUT, 7/8
5
349621260M
BUSHING, BRACKET BOLT
6
346621270M
Крышка
7
346621171M
DISTANCE PIECE
8
9401130600
Шайба
9
9301130600
Гайка
11
345621211M
Штанга
12
345621222M
SPRING, THRUST ROD
13
398S621000
CLAMP SCREW ASSEMBLY
13-1
398621030M
CLAMP SCREW
13-3
3C8621041M
RIVET, 3-22
14
332621010M
PAD, CLAMP SCREW
15
349S623102
SWIVEL BRACKET
16
348S620100
STEERING SHAFT
17
345624170M
BUSHING, 26-32
18
345624410M
FRICTION PLATE, BRACKET
19
346624211M
Пружина
20
9101030830
Болт
21
3A0624232M
THRUST PLATE, 27-50-1
22
346624241M
THRUST PLATE, 26.5-46-1
23
345624150M
O-RING, 3.5-25.7
24
348S614112
MOUNT, BRACKET
25
9451032500
C-RING, D=25
26
344671770M
GREASE NIPPLE
27
345613010M
RUBBER MOUNT (UPPER)
28
345613130M
STUD BOLT, RUBBER MOUNT (UPPER)
29
345613120M
RETAINER, RUBBER MOUNT
30
9101135820
Болт
31
345613310M
DAMPER CAP
32
345613320M
DAMPER COLLAR
33
345613020M
RUBBER MOUNT (LOWER)
34
345613212M
BOLT, RUBBER MOUNT (LOWER)
35
345613330M
DAMPER PLATE
36
345613340M
LOCK PLATE LOWER
37
348613090M
SHIM, 33-40.7-0.5
38
9450034000
C-RING, D=40
39
9401131000
Шайба
40
9304031000
NYLON NUT, 10P-1.5
41
345613222M
WASHER, RUBBER MOUNT (LOWER)
42
9301031000
NUT, PROPELLER
43
346613230M
LOCK PLATE, RUBBER MOUNT
44
9161130885
Болт
45
9401130800
Шайба
46
9301130800
NUT, PROPELLER
47
3C8621580M
GROUND CABLE
48
9101135612
Болт
49
3A3623960M
GROUND CABLE
50
9101135610
Болт
51
338602182M
Анод
52
9101135620
Болт
53
348621410M
SPRING "L", TILT ASSISTANT
54
348621420M
SPRING "R", TILT ASSISTANT
55
348621430M
SHAFT, TILT ASSISTANT
