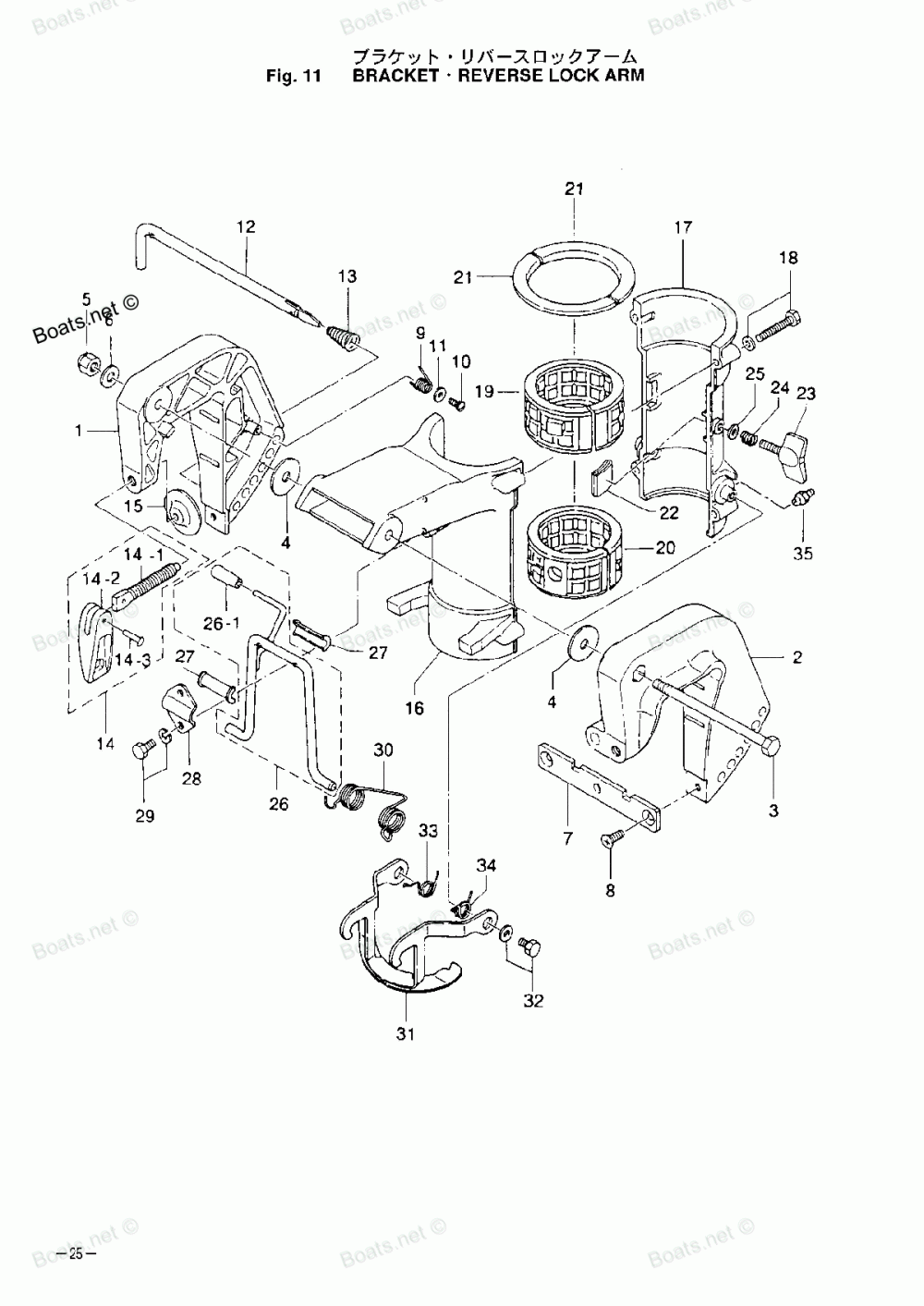

Bracket & Reverse Lock

Nissan NS5BS
Nissan
#oem кодцена
1
369S621123
STERN BRACKET RIGHT
2
369S621132
STERN BRACKET LEFT
3
309621152M
BOLT, 8 - 122
4
307621161M
WASHER, 8.5 - 28 - 1
5
9304460800
NYLON NUT, 8-P1.25
6
9401130800
Шайба
7
369621180M
DISTANCE PLATE, BRACKET
8
9216130612
Винт
9
369621461M
SPRING, STERN BRACKET
10
9207030406
Винт
11
369621470M
WASHER, 4.3 - 16 - 1.5
12
350621211M
Штанга
13
369621222M
SPRING, THRUST ROD
14
369S621001
CLAMP SCREW ASSY
14-1
369621030M
CLAMP SCREW
14-2
307S621021
HANDLE, CLAMP SCREW
14-3
3C8621041M
RIVET, 3 - 22
15
332621010M
PAD, CLAMP SCREW
16
369S623912
SWIVEL BRACKET "A"
17
393S623921
SWIVEL BRACKET "B"
18
9101135635
Болт
19
393624160M
BUSHING UPPER, STEERING
20
393624170M
BUSHING LOWER, STEERING
21
369624220M
THRUST PLATE
22
369624411M
FRICTION PLATE, BRACKET
23
309S624422
SCREW, FRICTION PLATE
24
309624461M
Пружина
25
9401130600
Шайба
26
393S624312
TILT STOPPER
26-1
393624330M
GRIP, TILT STOPPER
27
393624370M
BUSHING, TILT STOPPER
28
369624391M
SET PLATE, TILT STOPPER
29
9101135612
Болт
30
369624340M
SPRING, TILT STOPPER
31
369663130M
REVERSE LOCK ARM
32
9101135614
Болт
33
369663380M
SPRING "R", REVERSE LOCK ARM
34
369663390M
SPRING "L", REVERSE LOCK ARM
35
344671770M
GREASE NIPPLE
