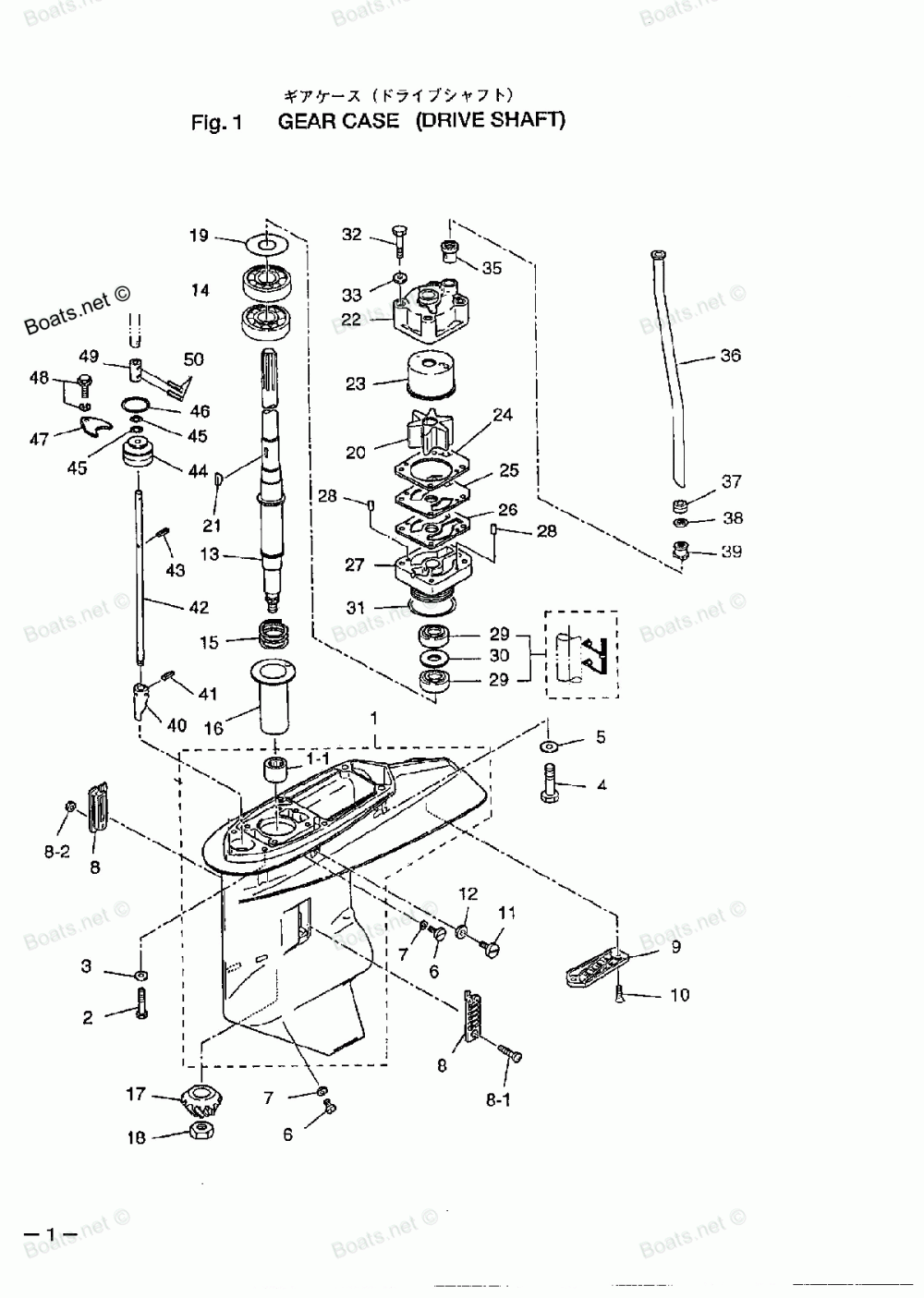

Корпус редуктора (вертикальный вал)

Nissan NSF50B
Nissan
#oem кодцена
1
3C8S600900
GEAR CASE ASSEMBLY
1
353602110M
NEEDLE BEARING, 25-33-30
2
9161890835
BOLT, 8-35
3
9402130800
Шайба
4
3B7600012M
BOLT, 10-40
5
9402131000
Шайба
6
332600052M
OIL PLUG
7
332600060M
GASKET, 8.1-15-1
8
3B7602350M
WATER STRAINER SET
8-1
9215030438
Винт
8-2
9304060400
NYLON NUT, 4P 0.7
9
3F3602040M
SUB WATER STRAINER
10
9215030608
Винт
11
3B7600151M
WATER PLUG
12
3B7600160M
GASKET, 10.1-15-1
13
3S7643020M
DRIVE SHAFT L
13
3S7643030M
DRIVE SHAFT UL
14
3C8602130M
BEARING, 6205R
15
3C8643270M
SPRING, DRIVE SHAFT
16
3A3643280M
GUIDE, DRIVE SHAFT SPRING
17
3F3640200M
BEVEL GEAR B
18
353640270M
NUT, BEVEL GEAR B
19
353640830M
SHIM, 44-50.5-0.3
19
353640810M
SHIM, 44-50.5-0.1
19
353640820M
SHIM, 44-50.5-0.15
20
3B7650212M
Импеллер
21
3B7650220M
KEY, PUMP IMPELLER
22
3B7650160M
PUMP CASE UPPER
23
3B7652380M
LINER, PUMP CASE (CR)
24
3B7650180M
Прокладка
25
3F3652391M
GUIDE PLATE, WATER PUMP (CR)
26
3B7650290M
GASKET, GUIDE PLATE
27
3F3650171M
PUMP CASE LOWER
28
334650120M
KNOCK, 4-10
29
3F3602230M
OIL SEAL, 22-37-8
30
3F3640840M
SPACER, 36.9-30-0.5
31
345650150M
O-RING, 3.2-47
32
9161130880
BOLT, 8-80
33
9401130800
Шайба
35
3B7650140M
SEAL RUBBER LOWER, WATER PIPE
36
3C8651000M
WATER PIPE S
36
3C8651100M
WATER PIPE L
37
345652060M
SEAL RUBBER UPPER, WATER PIPE
38
345652050M
COLLAR, 18-20-4.5
39
346652040M
LOCKING RUBBER, WATER PIPE
40
3C8660110M
Кулачковый толкатель
41
9514033514
SPRING PIN, 3.5-14
42
3S7660130M
CAM ROD L
42
3S7660140M
CAM ROD UL
43
9514033510
SPRING PIN, 3.5-10
44
3B7660311M
BUSHING, CAM ROD
45
345660210M
O-RING, 1.9-6.8
46
3B7660230M
O-RING, 3.5-27.7
47
353660240M
Стопор
48
9101036612
Болт
49
3S7662410M
JOINT, SHIFT ROD
50
9514030312
SPRING PIN, 3-12
