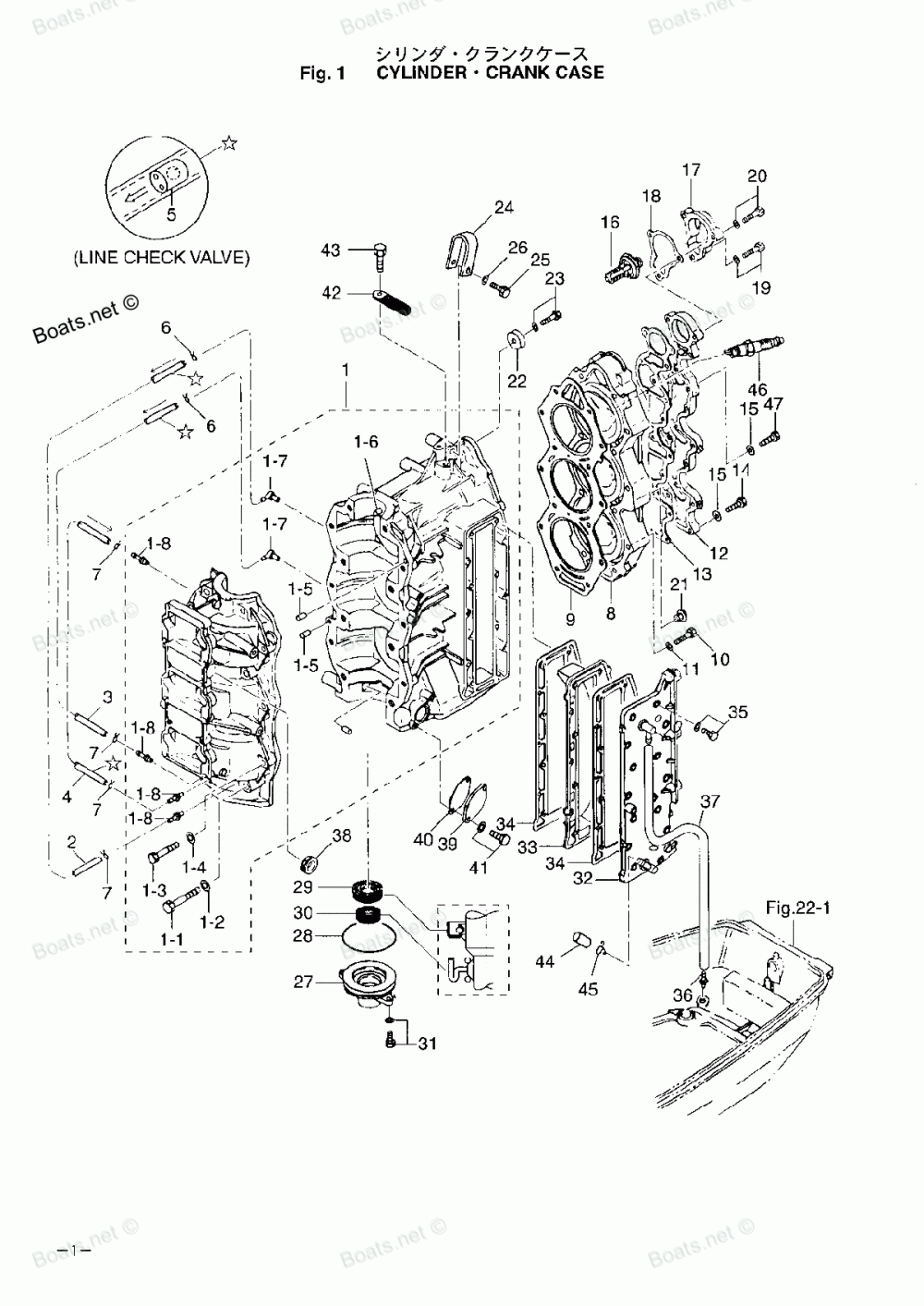

Cylinder - Crank Case

Nissan NS60C
Nissan
#oem кодцена
1
3F3B011001
CYLINDER, CRANK CASE
1
3F3011140M
BOLT, 10-60
2
3B7011160M
WASHER, 10.5 - 20 - 3.2
2
980730350M
LUBRICATION PIPE
3
9161290845
Болт
3
980730260M
LUBRICATION PIPE
4
980730370M
LUBRICATION PIPE
4
345010150M
WASHER, 8.5 - 19.5 - 3.2
5
345011110M
KNOCK, 6 - 12
5
393011600M
LINE CHECK VALVE
6
345001170M
KNOCK, MAIN BEARING
6
3T5011330M
CLIP 8
7
393011370M
L-NIPPLE (NEW)
7
3B2011600M
CHECK VALVE NIPPLE (OLD)
7
338011330M
CLIP 7
8
393011310M
NIPPLE, 5.5 - 5
8
3F3B010011
Головка цилиндра
9
3F3010050M
Прокладка
10
9161190860
Болт
12
3F3B010211
Крышка, головки цилиндра
13
3F3010240M
GASKET, CYLINDER HEAD COVER
14
9101210625
Болт
15
9401210600
Шайба
16
3C7010300M
THERMOSTAT (PRV)
17
3B7B010310
CAP, THERMOSTAT
18
353010320M
GASKET, THERMOSTAT
19
9101135625
Болт
20
9101135640
Болт
21
3B7010460M
Заглушка
22
338602182M
Анод
23
9101035620
Болт
24
3C8B015130
HANGER
25
9101140835
Болт
26
9401210800
Шайба
27
3F3012910M
LOWER HEAD, CRANK CASE
28
151000530M
O-RING, 2 - 66.5
29
126001210M
OIL SEAL, 30 - 45 - 8
30
3F3012150M
OIL SEAL, 16.8 - 28 - 8
31
9101135620
Болт
32
3F3B023001
EXHAUST COVER, OUTER
33
3F3B023020
EXHAUST COVER, INNER
34
3F3023051M
GASKET, EXHAUST COVER
35
9101145625
Болт
36
353011380M
WATER NIPPLE
37
98AB50480M
PIPE, WATER NIPPLE
38
3B7760930M
GROMMET, 25 - 5
39
3C8090811M
BLIND PLATE
40
3C8090820M
GASKET, BLIND PLATE
41
9101036616
Болт
42
309069720M
CLAMP, 6.5 - 47.5P
43
9101130612
Болт
44
3F3011390M
SEAL CAP, 5
45
338022150M
CLIP 10
46
970111009M
SPARK PLUG
46
970111016M
SPARK PLUG (WITH RESISTANCE)
47
9161240628
Болт
