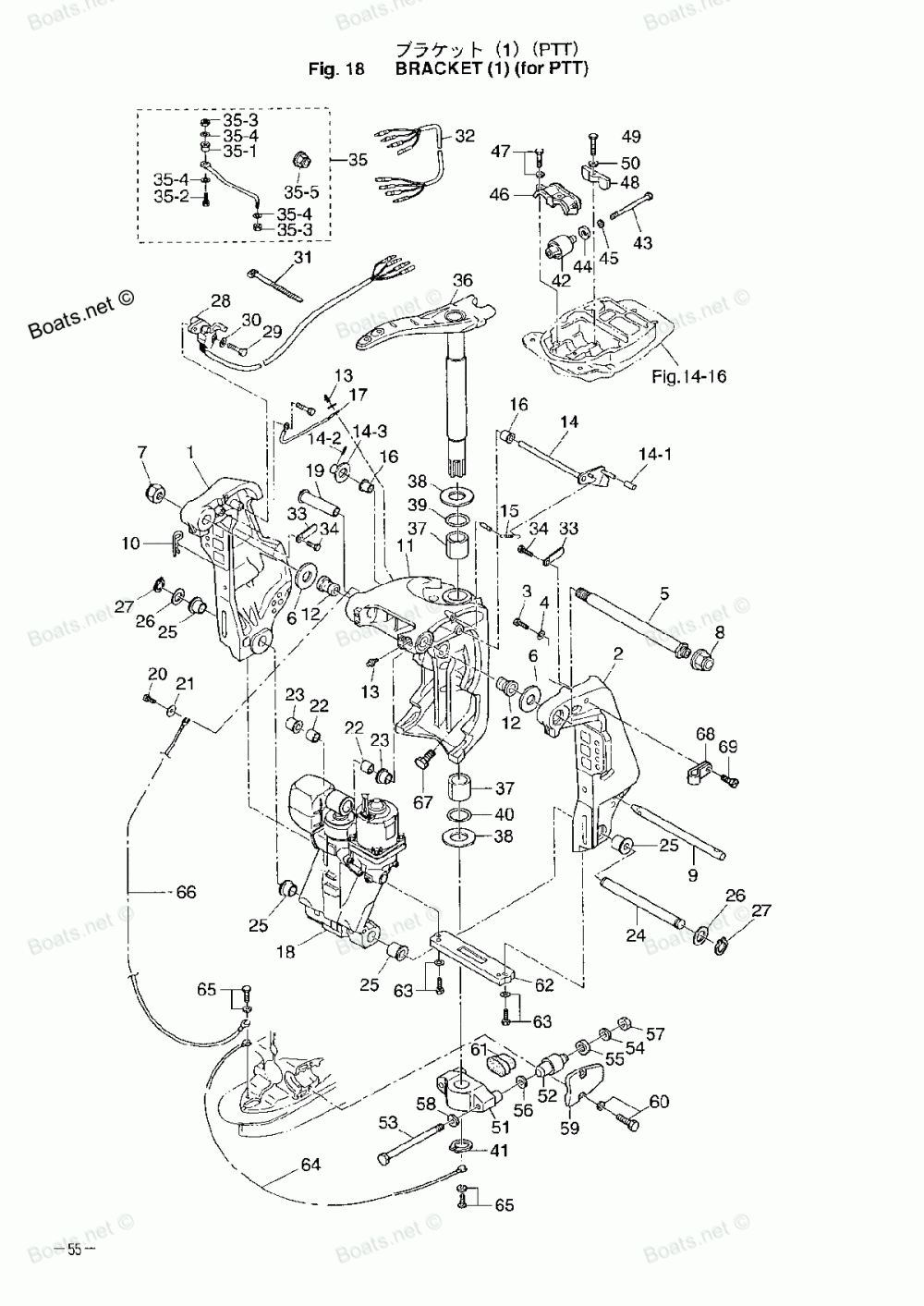

Bracket (1) (for Ptt)
Bracket (1) (for Ptt)

Bracket (1) (for Ptt)

Nissan NS70C

Bracket (1) (for Ptt)

#

oem код

название

цена

1

STERN BRACKET RIGHT

STERN BRACKET RIGHT

2

STERN BRACKET LEFT

STERN BRACKET LEFT

3

Болт

Болт

4

Шайба

Шайба

5

BRACKET BOLT

BRACKET BOLT

6

WASHER, 25.7 - 50 - 1

WASHER, 25.7 - 50 - 1

7

NYLON NUT, 7/8

NYLON NUT, 7/8

8

CAP, BRACKET BOLT

CAP, BRACKET BOLT

9

Штанга

Штанга

10

PIN, THRUST ROD

PIN, THRUST ROD

11

SWIVEL BRACKET

SWIVEL BRACKET

12

BUSHING, 25.6 - 28.6 - 40

BUSHING, 25.6 - 28.6 - 40

13

GREASE NIPPLE

GREASE NIPPLE

14

TILT STOPPER

TILT STOPPER

14-1

GRIP, TILT STOPPER

GRIP, TILT STOPPER

14-2

SPRING PIN, 3.5 - 16

SPRING PIN, 3.5 - 16

14-3

WASHER, 10.5 - 18 - 1.5

WASHER, 10.5 - 18 - 1.5

15

SPRING, TILT STOPPER

SPRING, TILT STOPPER

16

COLLAR, 10.2 - 12 - 12

COLLAR, 10.2 - 12 - 12

17

GROUND CABLE

GROUND CABLE

18

POWER TRIM & TILT

POWER TRIM & TILT

19

CYLINDER PIN UPPER

CYLINDER PIN UPPER

20

Болт

Болт

21

WASHER, 6.5 - 32 - 1.5

WASHER, 6.5 - 32 - 1.5

22

BUSHING, 18 - 24 - 19

BUSHING, 18 - 24 - 19

23

BUSHING, 18 - 20 - 20.5

BUSHING, 18 - 20 - 20.5

24

CYLINDER PIN LOWER

CYLINDER PIN LOWER

25

BUSHING, 22 - 25.4 - 23.5

BUSHING, 22 - 25.4 - 23.5

26

WASHER, 22.6 - 30 - 2

WASHER, 22.6 - 30 - 2

27

C-RING, D=22

C-RING, D=22

28

TRIM SENDER

TRIM SENDER

29

Болт

Болт

30

WASHER, 6 - 16 - 1.5

WASHER, 6 - 16 - 1.5

31

BAND LEAD WIRE

BAND LEAD WIRE

32

EXTENSION CORD, TRIM SENDER

EXTENSION CORD, TRIM SENDER

33

CLAMP, 6.5 - 47.5P

CLAMP, 6.5 - 47.5P

35

DRAG LINK "H"

DRAG LINK "H"

35-1

SPACER, DRAG LINK "H"

SPACER, DRAG LINK "H"

35-2

BOLT, 3/8-50

BOLT, 3/8-50

35-3

NYLON NUT, 3/8

NYLON NUT, 3/8

35-4

WASHER, 9.6 - 18 - 2

WASHER, 9.6 - 18 - 2

35-5

SEAL RING, DRAG LINK

SEAL RING, DRAG LINK

36

STEERING SHAFT

STEERING SHAFT

36

STEERING SHAFT

STEERING SHAFT

37

BUSHING, 32 - 40 - 45

BUSHING, 32 - 40 - 45

38

THRUST PLATE

THRUST PLATE

39

SEAL RING, STEERING SHAFT

SEAL RING, STEERING SHAFT

40

O-RING, 4.5 - 32

O-RING, 4.5 - 32

41

C-RING, D=32

C-RING, D=32

42

UPPER, MOUNT RUBBER

UPPER, MOUNT RUBBER

43

BOLT, UPPER MOUNT RUBBER

BOLT, UPPER MOUNT RUBBER

44

DAMPER RUBBER, 21 - 36 - 5

DAMPER RUBBER, 21 - 36 - 5

45

WASHER, 11.5 - 32 - 3

WASHER, 11.5 - 32 - 3

46

CAP, UPPER MOUNT RUBBER

CAP, UPPER MOUNT RUBBER

47

Болт

Болт

48

DAMPER, UPPER MOUNT RUBBER

DAMPER, UPPER MOUNT RUBBER

49

Болт

Болт

51

MOUNT BRACKET

MOUNT BRACKET

52

LOWER, MOUNT RUBBER

LOWER, MOUNT RUBBER

53

BOLT, LOWER MOUNT RUBBER

BOLT, LOWER MOUNT RUBBER

54

WASHER, 13 - 34 - 3

WASHER, 13 - 34 - 3

56

WASHER, 12.2 - 25 - 2

WASHER, 12.2 - 25 - 2

57

NUT, 12-P1.5

NUT, 12-P1.5

58

Шайба

Шайба

59

CAP, LOWER MOUNT RUBBER

CAP, LOWER MOUNT RUBBER

60

BOLT, 8 - 25

BOLT, 8 - 25

61

Резиновый демпфер

Резиновый демпфер

62

Анод

Анод

63

Болт

Болт

64

GROUND CABLE

GROUND CABLE

65

Болт

Болт

66

GROUND CABLE

GROUND CABLE

67

BOLT, 12 - 20 P1.75

BOLT, 12 - 20 P1.75

68

CLAMP, 6.5 - 14L

CLAMP, 6.5 - 14L

69

Винт

Винт
