  6. Bracket (2) (for M Type)

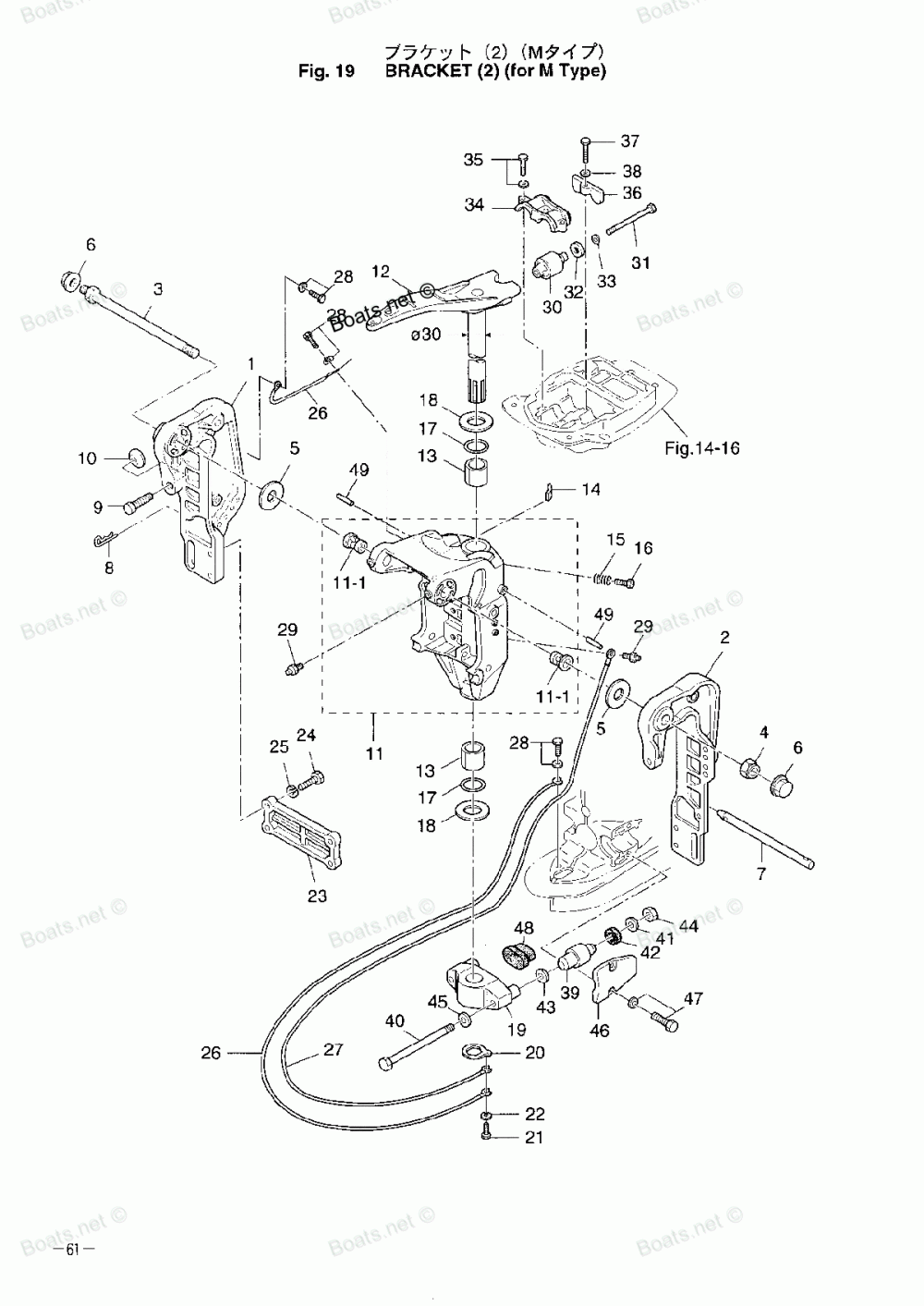

Bracket (2) (for M Type)

Nissan NS70C
Nissan
#oem кодцена
1
352S621125
STERN BRACKET RIGHT
2
353S621133
STERN BRACKET LEFT
3
353621910M
BRACKET BOLT
4
346621240M
NYLON NUT, 7/8
5
353621161M
WASHER, 22.5 - 54 - 1
6
346621270M
Крышка
7
3A3621211M
Штанга
8
3B7621291M
PIN, THRUST ROD
9
353621030M
CLAMP SCREW
10
332621010M
PAD, CLAMP SCREW
11
353S623122
SWIVEL BRACKET
11-1
3A3621260M
BUSHING, 22.5 - 22.4 - 27
12
3B7S620101
STEERING SHAFT
13
353624170M
BUSHING, 30 - 36 - 41
14
345624410M
FRICTION PLATE
15
346624211M
Пружина
16
9101030830
Болт
17
353624150M
O-RING, 3.5 - 29.7
18
353624231M
THRUST PLATE
19
3F3S614101
MOUNT BRACKET
20
353614120M
LOCK PLATE, BRACKET
21
9101030614
Болт
22
9413030600
SPRING WASHER
23
353S621141
PLATE, STERN BRACKET
24
9111031035
BOLT, 10 - P1.25
25
9413031000
Пружинная шайба
26
3A3623960M
GROUND CABLE
27
3A3623960M
GROUND CABLE
28
9101135612
Болт
29
344671770M
GREASE NIPPLE
30
3B7613010M
UPPER, MOUNT RUBBER
31
3B7613071M
BOLT, UPPER MOUNT RUBBER
32
3C7613380M
DAMPER RUBBER, 21 - 36 - 5
33
3B7613350M
WASHER, 11.5 - 32 - 3
34
3B7S613411
CAP, UPPER MOUNT RUBBER
35
9101135835
Болт
36
3B7613390M
DAMPER, UPPER MOUNT RUBBER
37
9101130625
Болт
38
3c8663080M
WASHER, 6 - 16 - 1.5
39
353613020M
LOWER, MOUNT RUBBER
40
353613213M
BOLT, LOWER MOUNT RUBBER
41
353613340M
WASHER, 13 - 34 - 3
43
353613151M
WASHER, 12.2 - 25 - 2
44
3B7613240M
NUT, 12-P1.5
45
9402131200
Шайба
46
3B7S613420
CAP, LOWER MOUNT RUBBER
47
3N4613430M
BOLT, 8 - 25
48
353613360M
Резиновый демпфер
49
9511030536
PIN, 5 - 36
