Assembly Kit Каталог оригинальных запчастей для лодочных моторов Nissan NSF5A (2002 и предыдущие)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

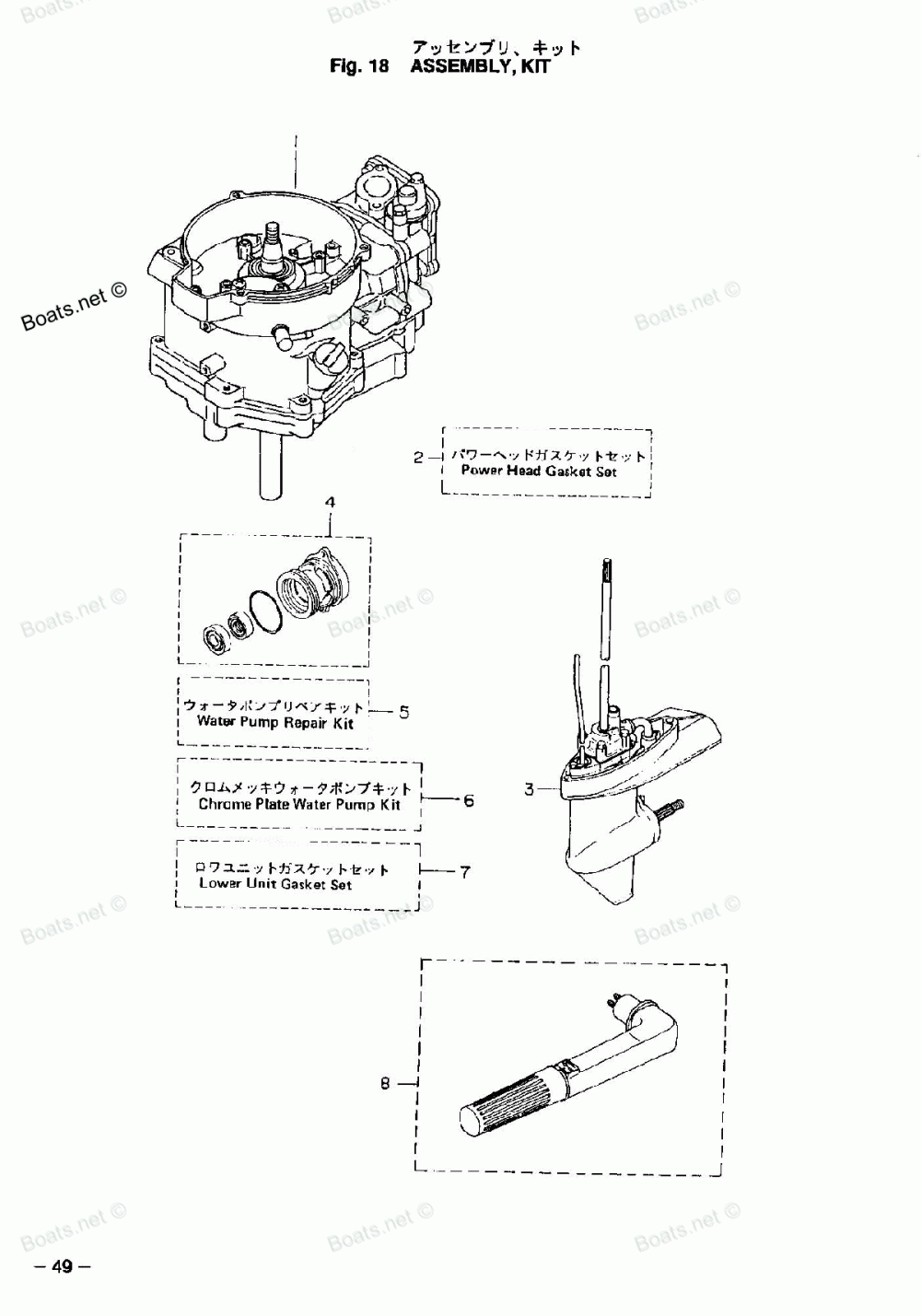

Assembly Kit

Nissan NSF5A

Assembly Kit

#

oem код

название

цена

1

ENGINE SHORT BLOCK

ENGINE SHORT BLOCK

2

GASKET, BREEZER CAP

GASKET, BREEZER CAP

2

GASKET, DRIVE SHAFT HOUSING

GASKET, DRIVE SHAFT HOUSING

2

POWER HEAD GASKET SET

POWER HEAD GASKET SET

2

Прокладка , масляного поддона

Прокладка , масляного поддона

2

O-RING, 2.62 - 18.72

O-RING, 2.62 - 18.72

2

POWER HEAD GASKET SET

POWER HEAD GASKET SET

2

GASKET, EXHAUST PLATE

GASKET, EXHAUST PLATE

2

OIL SEAL, 20 - 35 -7

OIL SEAL, 20 - 35 -7

2

GASKET CYLINDER HEAD

GASKET CYLINDER HEAD

2

O-RING, OIL PUMP

O-RING, OIL PUMP

2

GASKET, DRAIN SCREW

GASKET, DRAIN SCREW

2

GASKET, EXHAUST PORT

GASKET, EXHAUST PORT

2

O-RING, 6.8 - 1.9

O-RING, 6.8 - 1.9

2

Прокладка карбюратора

Прокладка карбюратора

2

Прокладка, крышки головки

Прокладка, крышки головки

2

OIL SEAL, 10 - 25 - 7

OIL SEAL, 10 - 25 - 7

2

O-RING, 2 - 33.5

O-RING, 2 - 33.5

2

GASKET, THERMOSTAT

GASKET, THERMOSTAT

2

GASKET, CRANKCASE HEAD

GASKET, CRANKCASE HEAD

2

OIL SEAL, 25 - 40 - 8

OIL SEAL, 25 - 40 - 8

3

LOWER UNIT ASSY S

LOWER UNIT ASSY S

3

LOWER UNIT ASSY L

LOWER UNIT ASSY L

4

PROPELLER SHAFT HOUSING ASSY

PROPELLER SHAFT HOUSING ASSY

5

GUIDE PLATE, WATER PUMP

GUIDE PLATE, WATER PUMP

5

IMPELLER, PUMP CASE

IMPELLER, PUMP CASE

5

GASKET, PUMP GUIDE PLATE

GASKET, PUMP GUIDE PLATE

5

GASKET, PUMP CASE LOWER

GASKET, PUMP CASE LOWER

5

Болт

Болт

5

Шайба

Шайба

5

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT

5

KEY, PUMP IMPELLER

KEY, PUMP IMPELLER

5

Прокладка

Прокладка

5

LINER, PUMP CASE

LINER, PUMP CASE

6

CHROME PLATED WATER PUMP KIT

CHROME PLATED WATER PUMP KIT

6

LINER, CHROME PLATED PUMP CASE

LINER, CHROME PLATED PUMP CASE

6

GUIDE PLATE, CHROME PLATED WATER PUMP

GUIDE PLATE, CHROME PLATED WATER PUMP

7

OIL SEAL, 15 - 28 - 10

OIL SEAL, 15 - 28 - 10

7

O-RING, 3.2 - 47

O-RING, 3.2 - 47

7

OIL SEAL, 10 - 24 - 8

OIL SEAL, 10 - 24 - 8

7

O-RING, 2.5 - 4.9

O-RING, 2.5 - 4.9

7

O-RING, 2.4 - 15.4

O-RING, 2.4 - 15.4

7

LOWER UNIT GASKET SET

LOWER UNIT GASKET SET

7

GASKET, 8.2 - 14 - 1

GASKET, 8.2 - 14 - 1

8

HANDLE ASSY

HANDLE ASSY
