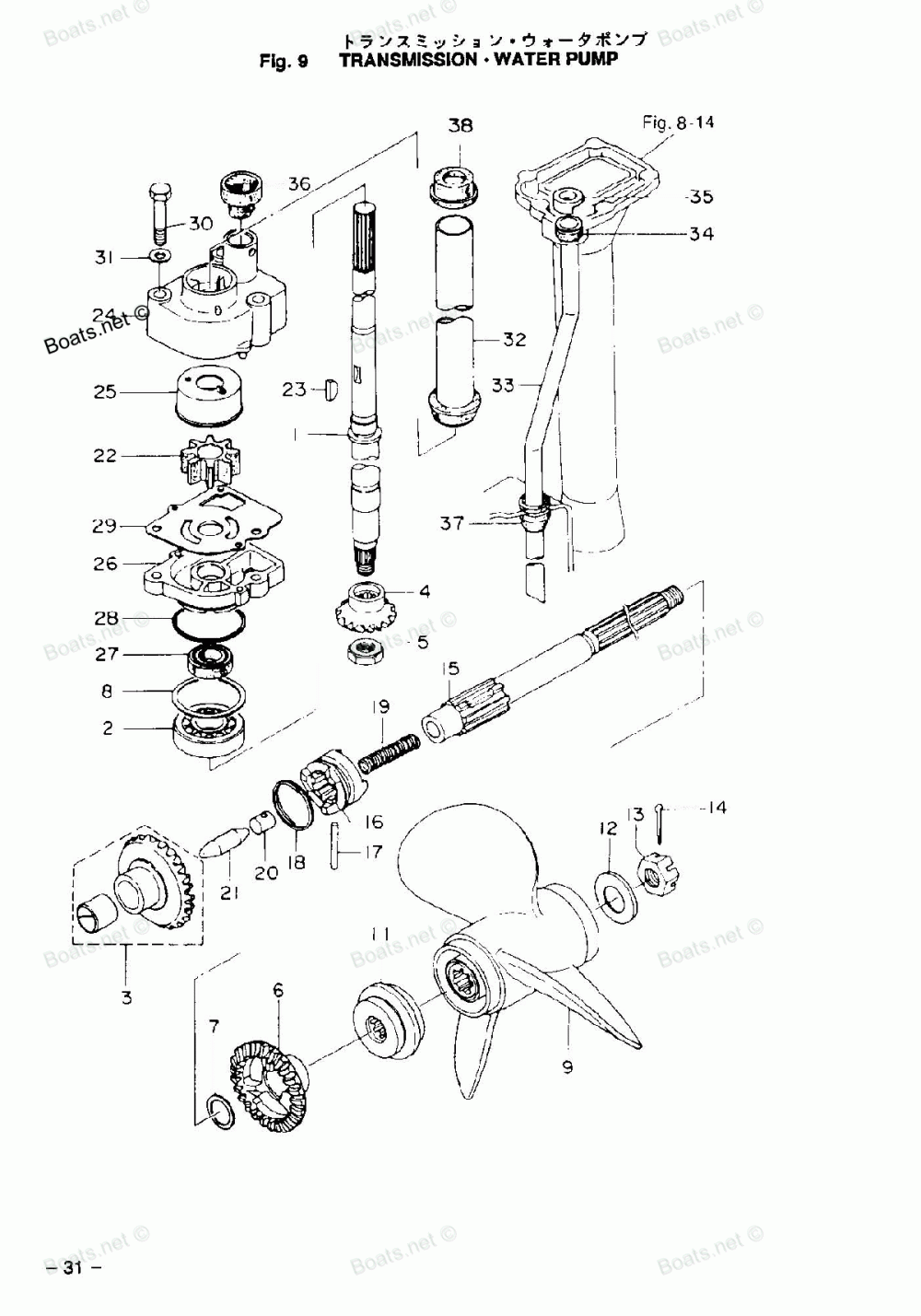

Transmission, Water Pump

Nissan NS15D
Nissan
#oem кодцена
1
350643020M
DRIVE SHAFT L
1
350643030M
DRIVE UL
1
350643040M
DRIVE SHAFT LL
1
350643010M
DRIVE SHAFT S
2
960106302M
BALL BEARING, 6302
3
350640100M
BEVEL GEAR A (WITH BUSHING)
4
350640200M
BEVEL GEAR B
5
346640271M
NUT, BEVEL GEAR B
6
362640300M
BEVEL GEAR C
7
350640320M
WASHER, 17.1-22-1.5
8
346640810M
SHIM, 35-41.9-0.1
8
346640820M
SHIM, 35-41.9-0.1
8
346640830M
SHIM, 35-41.9-0.3
8
346640840M
SHIM, 35-41.9-0.5
9
362641070M
PROPELLER 6
9
362641050M
PROPELLER 7
9
362641030M
PROPELLER 8
9
362641020M
PROPELLER 8.5
9
362641010M
PROPELLER 9
9
362641080M
PROPELLER 10
11
362642310M
Упорный держатель
12
346641245M
WASHER, 12.5-32-2.5
13
346641215M
NUT, PROPELLER
14
9515030322
SPLIT PIN, 3-22
15
362642110M
Вал гребного винта
16
362642150M
Муфта сцепления
17
350642180M
Палец
18
350642190M
SNAP, CLUTCH PIN
19
332642210M
SPRING CLUTCH
20
350642220M
SPRING HOLDER, CLUTCH
21
350642231M
PUSH ROD, CLUTCH
22
334650210M
Импеллер
23
350650220M
KEY, PUMP IMPELLER
24
350650161M
PUMP CASE
25
350650111M
LINER, PUMP CASE
26
350650170M
PUMP CASE LOWER
27
332602230M
OIL SEAL, 13.8-26-9.5
28
336624150M
O-RING, 3.5-36
29
350650250M
GUIDE PLATE, WATER PUMP
30
9101140652
Болт
31
9401030600
Шайба
32
350643220M
GUARD PIPE, DRIVE SHAFT
33
350651000M
WATER PIPE S
33
350651100M
WATER PIPE L
33
350651200M
WATER PIPE UL
33
350651300M
WATER PIPE LL
34
350652060M
SEAL RUBBER UPPER, WATER PUMP
35
350652050M
STOPPER, WATER PIPE
36
350650140M
SEAL RUBBER LOWER, WATER PUMP
37
350652040M
GUIDE RUBBER, WATER PIPE
38
350643260M
GROMMET UPPER, DRIVE SHAFT
