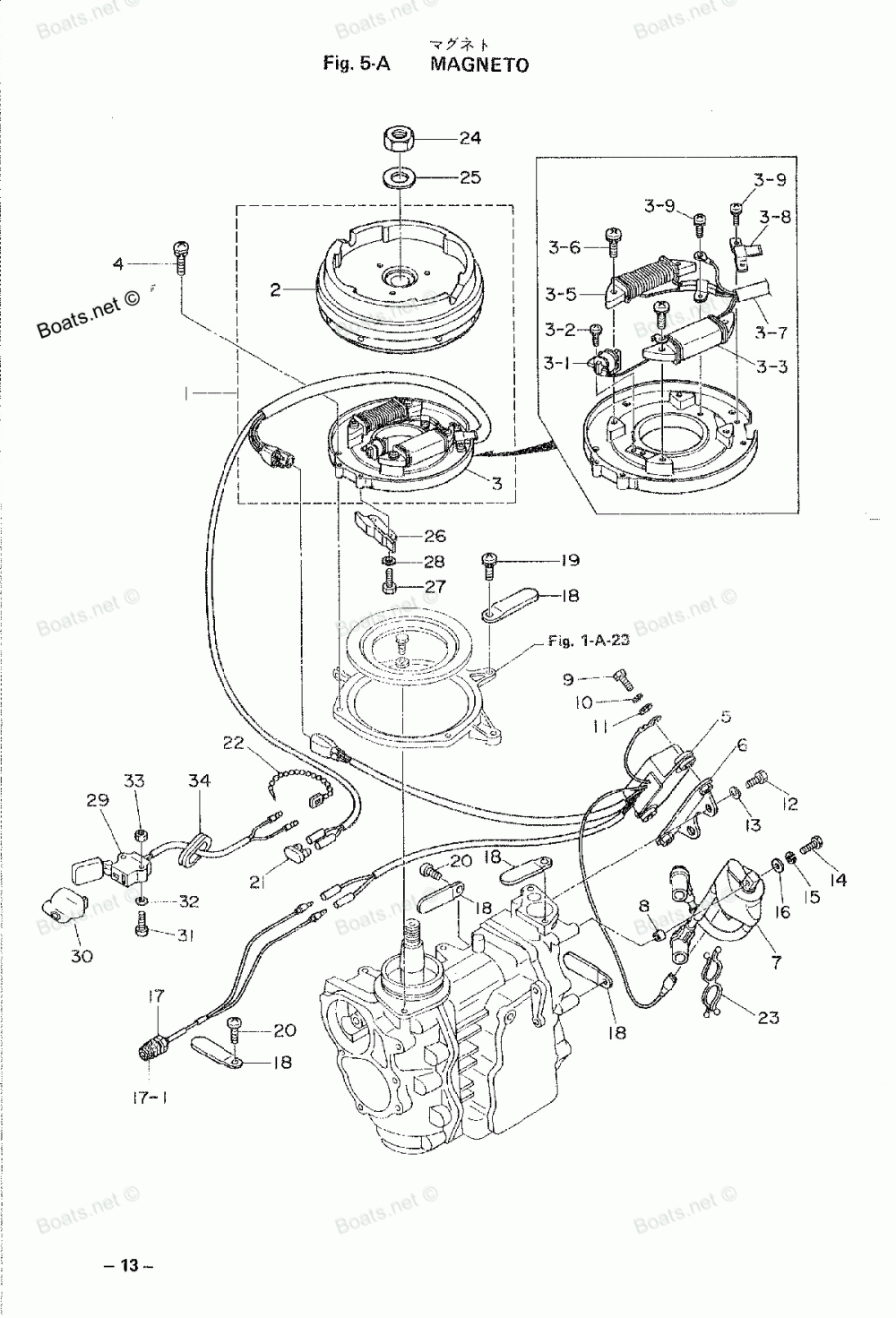

ГЕНЕРАТОР Каталог оригинальных запчастей для лодочных моторов Nissan NS18C2 (2002 и предыдущие)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

ГЕНЕРАТОР

Nissan NS18C2

ГЕНЕРАТОР

#

oem код

название

цена

00

SAFETY SWITCH ASSY

SAFETY SWITCH ASSY

00

THROTTLE CAM

THROTTLE CAM

00

Пружинная шайба

Пружинная шайба

00

FLYWHEEL CAP

FLYWHEEL CAP

00

PLUG, CABLE TERMINAL

PLUG, CABLE TERMINAL

00

Гайка

Гайка

00

C.D. UNIT

C.D. UNIT

00

SAFETY SWITCH ASSY

SAFETY SWITCH ASSY

00

Болт

Болт

00

Шайба

Шайба

00

BAND, LEAD WIRE

BAND, LEAD WIRE

00

GROMMET, CONSENT CORD

GROMMET, CONSENT CORD

00

BRACKET, C.D.UNIT

BRACKET, C.D.UNIT

00

Шайба

Шайба

00

Болт

Болт

00

CLIP, HIGH TENSION CORD

CLIP, HIGH TENSION CORD

00

IGNITION OIL

IGNITION OIL

00

Болт

Болт

00

NUT, MAGNETO

NUT, MAGNETO

00

SPACER, IGNITION COIL

SPACER, IGNITION COIL

00

Зажим

Зажим

00

CONSENT, PLUG

CONSENT, PLUG

00

Выключатель

Выключатель

00

WASHER, MAGNETO

WASHER, MAGNETO

00

SPACER, IGNITION COIL

SPACER, IGNITION COIL

00

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

00

Винт

Винт

00

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

00

Выключатель

Выключатель

00

THROTTLE CAM

THROTTLE CAM

00

Болт

Болт

00

Винт

Винт

00

Шайба

Шайба

00

C.D. UNIT

C.D. UNIT

01

WATER-PROOF COVER

WATER-PROOF COVER

01

TRIGGER COIL

TRIGGER COIL

1

FLYWHEEL MAGNETO ASSEMBLY

FLYWHEEL MAGNETO ASSEMBLY

02

LOCK, SAFETY SWITCH (W/CURL)

LOCK, SAFETY SWITCH (W/CURL)

02

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

2

FLYWHEEL CUP

FLYWHEEL CUP

3

COIL PLATE ASSEMBLY

COIL PLATE ASSEMBLY

03

ALTERNATOR

ALTERNATOR

3-1

TRIGGER COIL

TRIGGER COIL

3-2

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

3-3

ALTERNATOR

ALTERNATOR

3-4

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

3-5

EXCITER COIL

EXCITER COIL

3-6

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

3-7

MAGNETO CORD

MAGNETO CORD

3-8

HOLDER, MAGNETO CORD

HOLDER, MAGNETO CORD

3-9

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

4

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

04

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

05

EXCITER COIL

EXCITER COIL

5

C.D. UNIT

C.D. UNIT

06

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

6

BRACKET, C.D. UNIT

BRACKET, C.D. UNIT

7

Катушка зажигания

Катушка зажигания

07

MAGNETO CORD

MAGNETO CORD

8

SPACER, IGNITION COIL

SPACER, IGNITION COIL

08

HOLDER, MAGNETO CORD

HOLDER, MAGNETO CORD

9

Болт

Болт

09

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

10

Пружинная шайба

Пружинная шайба

11

Шайба

Шайба

14

Болт

Болт

17

Выключатель

Выключатель

17-1

WATERPROOF COVER

WATERPROOF COVER

18

Зажим

Зажим

19

SCREW (WITH SPRING WASHER)

SCREW (WITH SPRING WASHER)

20

Винт

Винт

21

PLUG, CABLE TERMINAL

PLUG, CABLE TERMINAL

22

BAND, LEAD WIRE

BAND, LEAD WIRE

23

CLIP, HIGH TENSION CORD

CLIP, HIGH TENSION CORD

24

NUT, MAGNETO

NUT, MAGNETO

25

WASHER, MAGNETO

WASHER, MAGNETO

26

THROTTLE CAM

THROTTLE CAM

27

Болт

Болт

28

Шайба

Шайба

29

PLUG RECEPTACLE ASSEMBLY

PLUG RECEPTACLE ASSEMBLY

30

CONSENT, PLUG

CONSENT, PLUG

31

Винт

Винт

32

Шайба

Шайба

33

Гайка

Гайка

34

GROMMET, LIGHTING CORD

GROMMET, LIGHTING CORD
