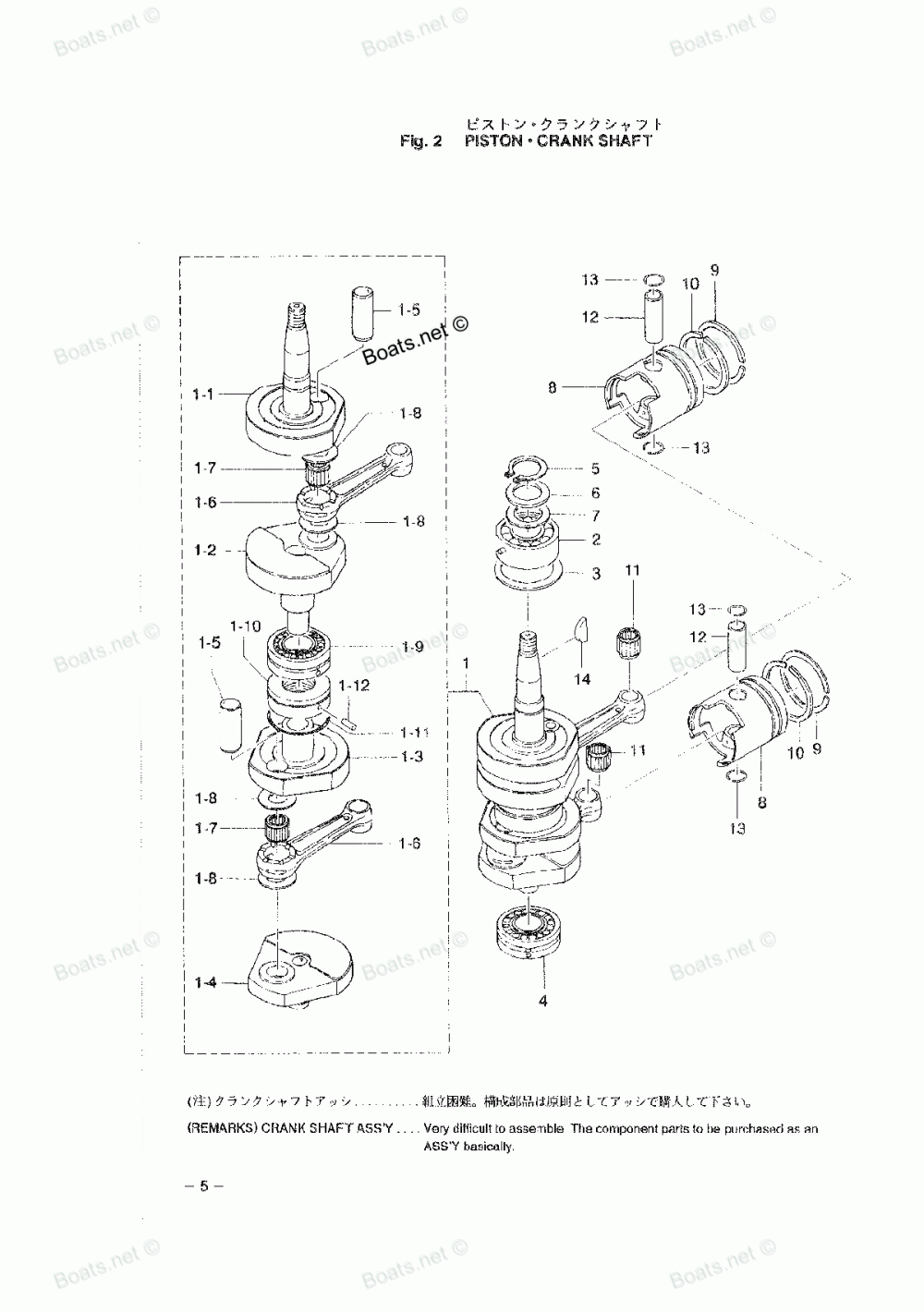

Поршни и коленчатый вал

Nissan NS40C
Nissan
#oem кодцена
00
345000110M
PISTON RING 2ND STD
00
345001160M
SPACER, MAIN BEARING
00
345000140M
PISTON RING 2ND 0.5MM O/S
00
345001410M
ADJUST SHIM MAIN BEARING
00
345000420M
SMALL END BEARING
00
361000010M
Поршень станд.
00
345000210M
Палец поршневой
00
361000040M
PISTON 0.5MM O/S
00
345001130M
MAIN BEARING UPPER
00
334000240M
Зажим
00
361000110M
PISTON RING 1ST STD
00
345001150M
RETAINER, MAIN BEARING
00
334001310M
MAGNETO KEY
00
361000140M
PISTON RING 1ST 0.5 O/S
00
945123000M
Зажим
1
348000300M
CRANKSHAFT ASSEMBLY
1-2
348000320M
CRANKSHAFT B
1-3
348000330M
CRANKSHAFT C
1-4
348000340M
CRANKSHAFT D
1-5
348000610M
CRANK PIN
1-6
345000401M
Шатун
1-7
345000430M
NEEDLE BEARING, 25-32-20
1-8
345000450M
WASHER, BIG END BEARING
1-9
345001140M
MAIN BEARING CENTER
1-10
345000510M
LABYRINTH PACKING
1-11
345000530M
O-RING, 2-49.5
1-12
9514070306
SPRING PIN, 3-6
2
345001130M
BEARING, 3206
02
348000320M
CRANKSHAFT B
03
348000330M
CRANKSHAFT C
3
345001150M
RETAINER, 56-66-1.6
04
348000340M
CRANKSHAFT D
05
348000610M
CRANK PIN
5
9451073000
C-CLIP D=30
06
345000400M
Шатун
6
345001160M
SPACER, 30.2 -40-2.3
7
345001410M
SHIM, 31-42
07
345000430M
BIG END BEARING
8
361000010M
Поршень (STD)
8
361000040M
PISTON 0.5MM O/S
08
345000450M
WASHER, BIG END BEARING
09
345001140M
MAIN BEARING CENTER
9
361000110M
PISTON RING 1ST STD
9
361000140M
PISTON RING 1ST 0.5MM O/S
10
345000140M
PISTON RING 2ND 0.5MM O/S
10
345000510M
LABYRINTH PACKING
10
345000110M
PISTON RING 2ND STD
11
345000420M
NEEDLE BEARING, 17-21-27
11
345000530M
O-RING, LABYRINTH PACKING
12
345000210M
Палец поршневой
12
951420306M
KNOCK, LABYRINTH PACKING
13
334000241M
Зажим
14
334001310M
MAGNETO KEY
