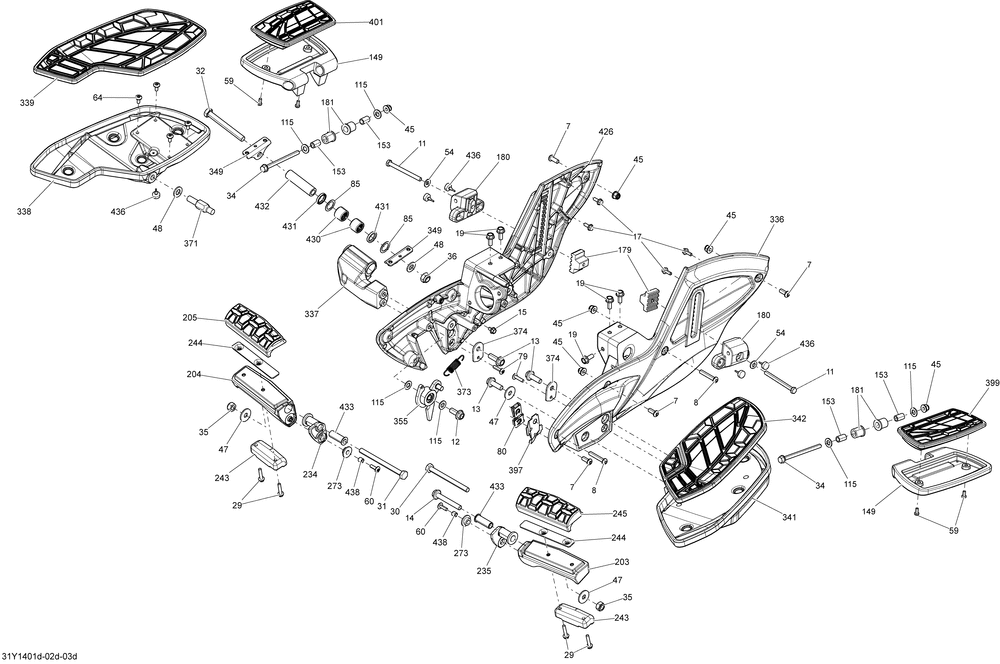

body and accessories footrest

Can-Am (Bombardier) Spyder RT SE6
Can-Am (Bombardier)
#oem кодцена
7
205482060
Screw-socket Bn.hd.iso.7380a2 (5.000 Per Pack)
8
205484560
Screw-socket Bn.hd.iso.7380a2 (4.000 Per Pack)
11
207189060
Screw-hex.cap Din.933a2 (5.000 Per Pack)
14
207507046
Screw-hex.flange Din.6921 S.grip (model-rt Std Se6 ) (10.000 Per Pack)
17
207561644
Screw-hex.flange Din.6921 S.grip (25.000 Per Pack)
19
207582044
Screw-hex.flange Din.6921 S.grip (10.000 Per Pack)
29
210263080
Screw-forming Hex.hd.fl.gm6174m (model-rt Std ) (10.000 Per Pack)
30
230001586
Screw-hex.cap Iso.4014 M10 X 115 (model-rt Std Sm6 ) (2.000 Per Pack)
31
230003044
Screw-hex.cap M10 X 130 Iso.4014 (model-rt Std ) (5.000 Per Pack)
34
230681034
Винт
35
232500416
Nut-stop Elastic Din.985 (model-rt Std ) (4.000 Per Pack)
45
233281434
Гайка
47
234002600
Washer-flat Din.9021b-a2 (model-rt Std ) (5.000 Per Pack)
54
234281704
Washer-spring Conical Din.6796 (2.000 Per Pack)
59
250000099
Screw-plastite Allen Button Head #12 (5.000 Per Pack)
60
250000128
Torx-truss M/s Gm6047m Nylon Patch (model-rt Std ) (10.000 Per Pack)
80
250100069
Extruded Panel Nut M8 X 1.25
115
503183800
Шайба (отпускается по 10 шт)
153
705002153
Втулка
179
705003013
Bloc De Reglage*adjuster Block
181
705003018
Douille Caout *rubber Bushing
203
705004709
Repose-pied Ga *footrest Lh Silver (model-rt Std )
204
705004711
Repose-pied Dr *footrest Rh Silver (model-rt Std )
205
705003245
Tampon Av. Dr. *rh Front Pad (model-rt Std )
234
705003615
Douille Dr. *rh. Bushing (model-rt Std )
235
705003616
Douille Ga. *lh. Bushing (model-rt Std )
243
705003730
Amort. Vibrat *vibrat. Damper (model-rt Std )
245
705003732
Tampon Av. Ga. *lh Front Pad (model-rt Std )
273
705003932
Coussinet *grommet (model-rt Std )
397
705007375
Support Panneau*panel Support
399
705007461
Tampon Arr. Ga *rear Pad Lh
401
705007472
Tampon Arr. Dr *rear Pad Rh
426
705008526
Support Dr *support Rh Silver (model-rt Std )
433
706201151
Douille Int. *bushing-int. (model-rt Std )
436
708000759
Стопор резиновый
438
709000162
Douille *bushing (model-rt Std )
