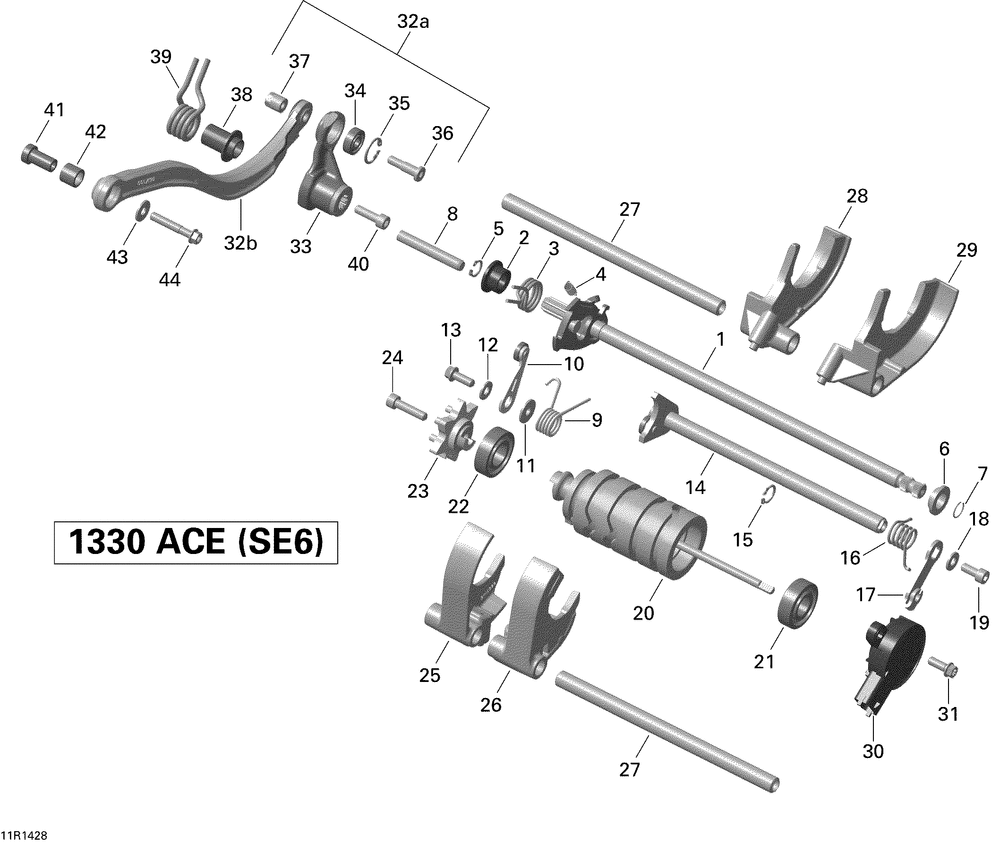

shifting system

Can-Am (Bombardier) Spyder RTS SE6
Can-Am (Bombardier)
#oem кодцена
1
420637432
Arbre*shift Shaft (includes 1 To 5 )
2
420247948
Bague*sleeve
3
420239422
Ressort*spring
4
420239430
Ressort*spring
5
420945060
Anneau*retaining Ring 11x1
6
420247662
Anneau*step Ring
7
420245440
Circlip 12 *circlip-12
8
420229385
Goupille*pin 8 M6x55
9
420239243
Ressort Rappel *spring-index
10
420248489
Levier Indexati*lever-index
11
420227716
Anneau*step Ring
12
224061121
Washer-flat (10.000 Per Pack)
13
420440164
Screw Torx Flange M6 X 16
14
420637155
Arbre*gear Locking Shaft (includes 14 To 15 )
15
420945470
Кольцо уплотнитнльное
16
420838419
Ressort*spring
17
420248275
Levier*control Lever
18
224061121
Washer-flat (10.000 Per Pack)
19
420840391
Screw-tapping M6 X 14 (10.000 Per Pack)
20
420657167
Tambour Embray.*drum-shift
21
420932290
Roulement*ball Bearing
22
420232625
Roulement*ball Bearing
23
420657174
Cale*shim Index
24
420840686
Screw-tapping M8x40
25
420657147
Fourchette Embr*fork-shift
26
420657142
Fourchette Embr*fork-shift
27
420657150
Axe Fourchette *spindle-fork
28
420657137
Fourchette Embr*fork-shift
29
420657133
Fourchette Embr*fork-shift
30
420265120
Capteur* Angle Rotation Sensor
31
420440164
Screw Torx Flange M6 X 16
33
420657216
Levier*gear Shift Lever Ass Y (includes 33 To 35 )
36
420441790
Boulon*fitting Bolt
37
420242350
Ecrou Hex.m6 *nut-hex.m6
38
420647221
Bague*sleeve
39
420638010
Ressort *spring
40
420241939
Screw-tapping M6 X 20
41
420249180
Bague*sleeve
42
420232031
Coussinet Aiguil*bushing-needle
43
420627400
Washer-6, 2/16/1, 5
44
420440270
Vis Hexalob.epa*screw-torx Flange M6x30
32a
420657196
Levier*shift Actuating Lever Ass Y (includes 32a To 37 )
