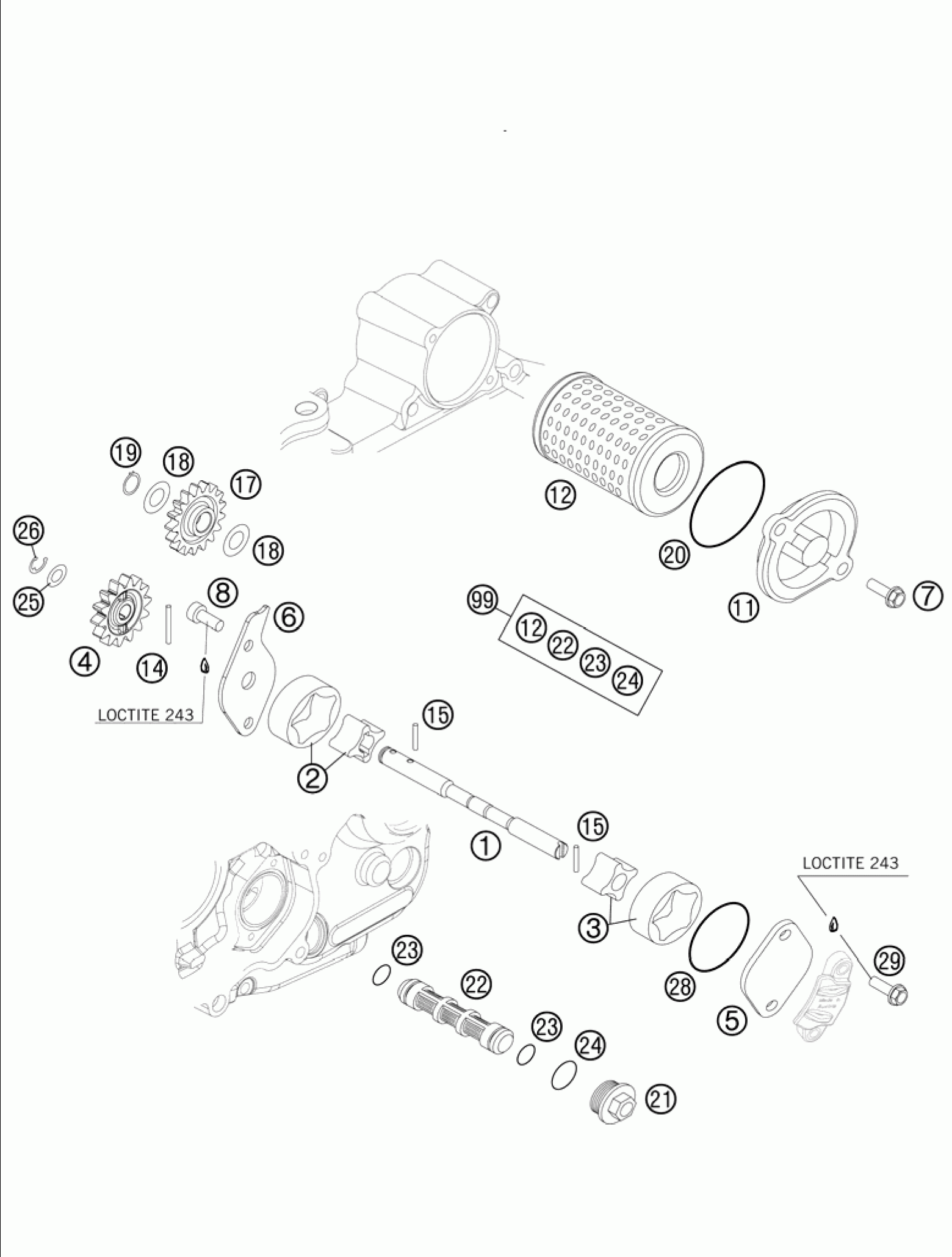

Масляная система

Husaberg FE 250 ENGINE
Husaberg
#oem кодцена
1
77038102000
Oil Pump Shaft Exc-f
2
59038011010
Oilpump Rotor Cpl. 10mm G-73r
3
77038011000
Oilpump Rotor 15mm G-164
4
77038001100
Oil Pump Gear 14t 08
5
77038004000
Oil Pump Cover L/s 05
6
77038003100
Oil Pump Cover R/s 05
7
0025050166
Hh Collar Screw M5x16 Tx30
8
0984050123S
Cylind. Scr. Din6912 M5x12 8.8
11
59038041000
Oil Filter Cover Racing
12
77038005044
Oil Filter With Gasket 06
14
0402251980
"needlerol.din5402 Nra 2, 5x19, 8"
15
0402251180
"needle Roller Din5402 2, 5x11, 8"
17
77038006100
Oilpump Idler Gear 08
18
0988121805
"shim Washer Din0988-12x18x0, 50"
19
0471120010
Circlip Din0471-12x1
20
0770400025
"o-ring 40, 00x2, 50 Nbr 70"
21
59038017000
"plug M20x1, 5 Ws=13"
22
59038016100
Oil Screen
23
0770125015
"o-ring 12, 5x1, 5 Nbr"
24
0770020170
"o-ring 17, 17x1, 78 Glo"
25
58038007755
"stop Disk 8, 1 X 15 X 0, 5"
26
0799060000
"tab Washer Din6799-rs 6, 0"
28
0770320020
"o-ring 32, 00x2, 00"
29
0025050126
Hh Collar Screw M5x12 Tx30
99
77038015010
Oilfilter Service Kit Exc-f
