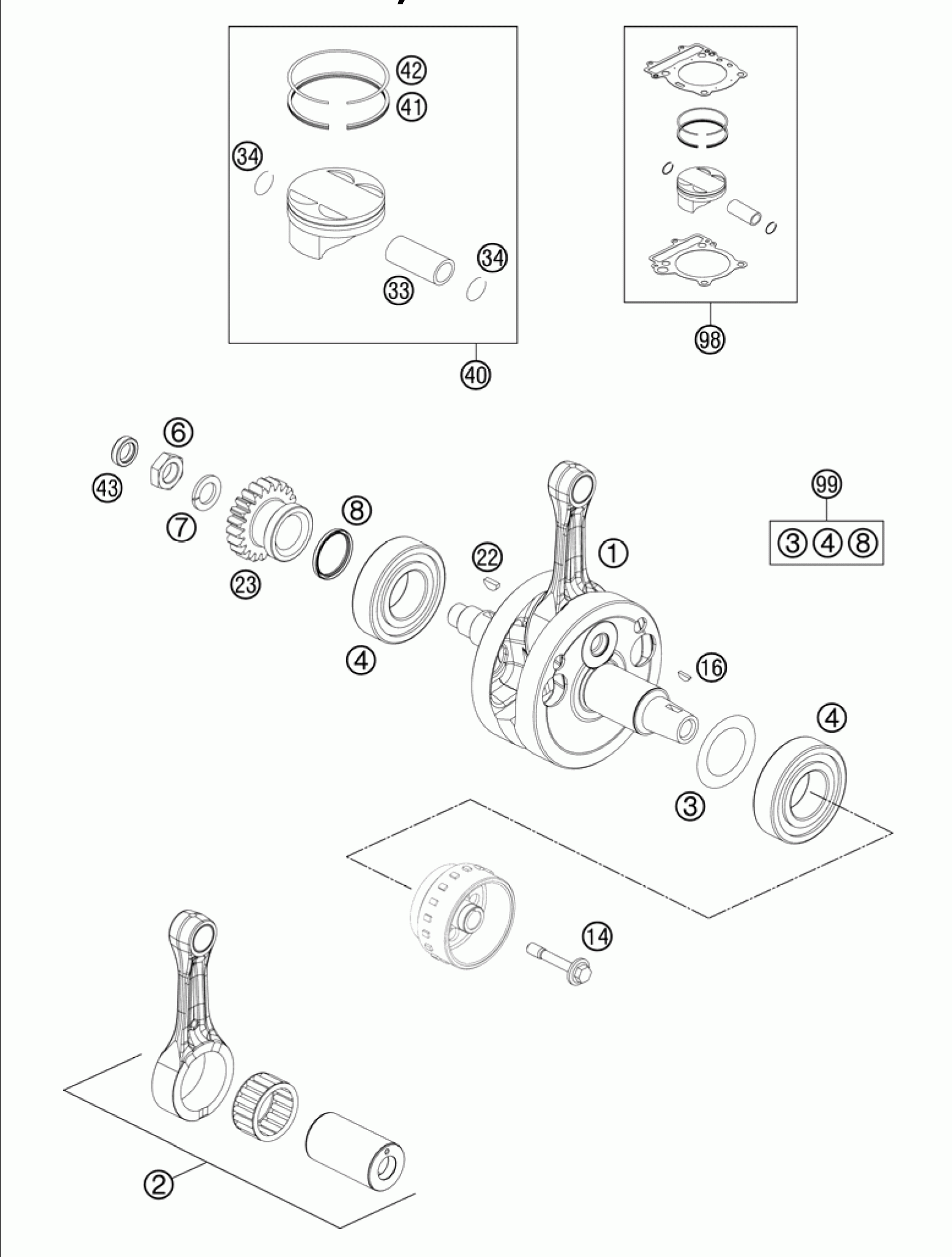

Коленвал и поршень

Husaberg FE 250 ENGINE
Husaberg
#oem кодцена
1
77130018100
Crankshaft Cpl.
2
77030015344
Connect. Rod Repair Set
3
56030081000
"thrust Washer 30, 5x45x0, 10"
3
56030081100
"thrust Washer 30, 7x47x0, 15"
3
56030081200
"thrust Washer 30, 5x45x0, 30"
4
50330082000
Подшипник
6
54630029000
"hex.nut L/sh M18x1, 5"
7
58132072000
Гровер
8
0760354774
Shaft Seal Ring 35x47x7 Viton
14
77339010100
Flywheel Screw
16
6946005
"woodruff Key 5x6, 5 Harded"
22
0888030037
"woodruff Key Din6888-3x3, 7"
23
77132000022
Primary Gear 22t.
33
77030033000
Piston Pin Bolt D=16mm 05
34
77030074000
Circlip 05
40
77130007100 I
Piston Cpl. D=76mm
40
77130007100 II
Piston Cpl. D=76mm
41
77130032000
Oil Scraper Ring
42
77030030200
Compression Ring
43
0760142460
Shaft Seal Ring 14x24x6 B
98
00050000013
Piston Kit Gr.ii Excf/sxf 06-1
98
00050000033
Pistonkit Gr.i Exc-f/sx-f06-12
99
00050002302
Crankshaft Rep. Kit 250sx-f/
