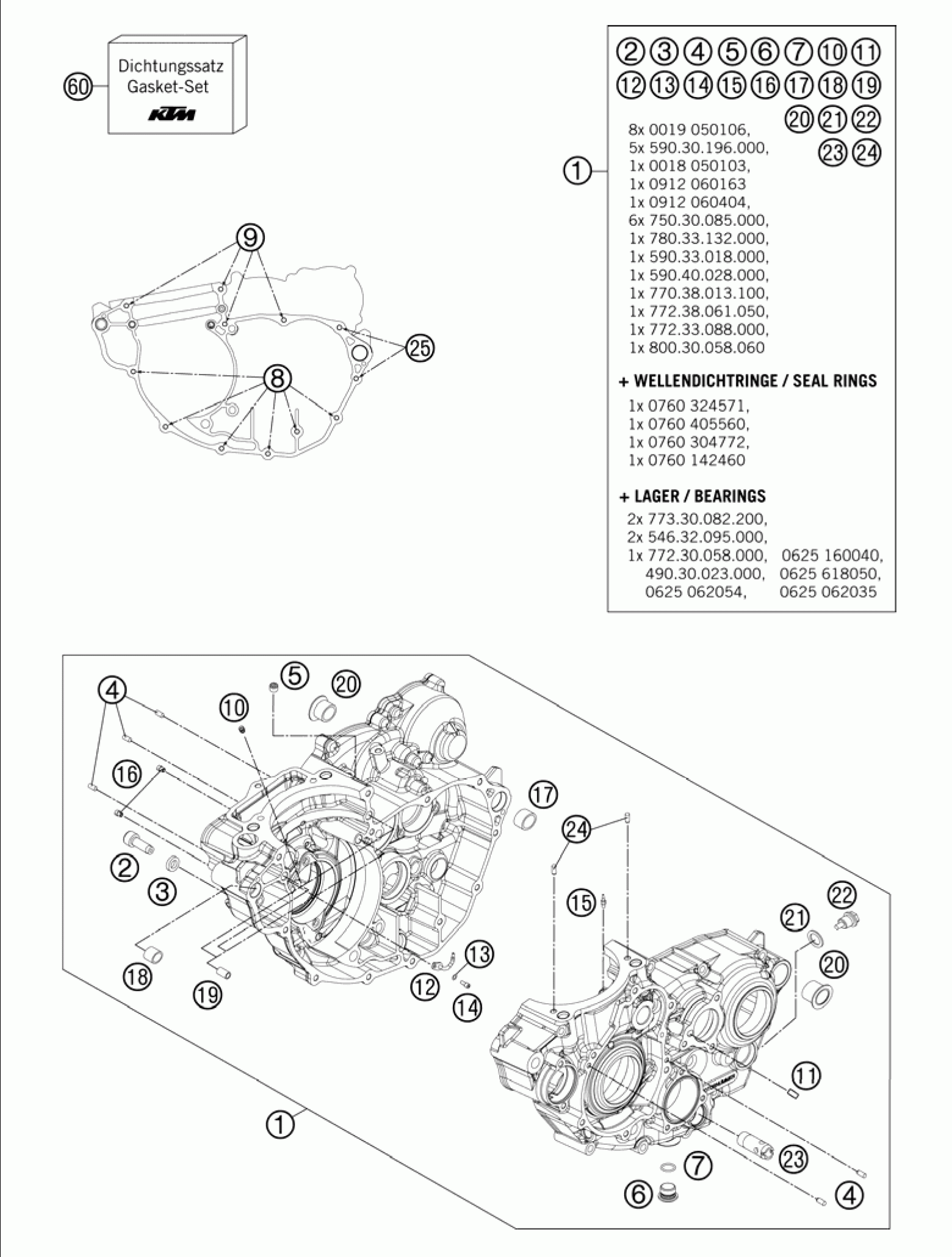

Картер двигателя

Husaberg FE 350 ENGINE
Husaberg
#oem кодцена
1
77730000044
Engine Case Cpl.
2
58030080000
Locating Screw M8 L=23
3
58030081000
Cu-seal Ring 8 X 14 X 3
4
0402040980
"needle Rol.din5402 Nrb 4x9, 8"
5
0906100100
Plug Din0906-m10x1
6
78036081000
"holding Bolt M14x1, 5"
7
0770110015
"o-ring 1, 5x11 Silicon"
8
0025060556
Hh Collar Screw M6x55 Tx30
9
0025060656
Hh Collar Screw M6x65 Tx30
10
80030058060
"oil Jet ""60"" M4"
11
77230066000
"throttle M5x10x0, 5"
12
81230064050
Oil Jet Curved Size 50
13
0770035020
"o-ring 3, 5x2, 00 Nbr"
14
0912040103
Ah.screw Din0912-m 4x10
15
60030063050
Oil Jet 50 05
16
59030058000
Jet 100 Bing(44-031/180) M4
17
59030024000
Dowel 17 X 19 X 12
18
54630027000
"dowel Bushing 13, 8x11x12"
19
59030023000
"dowel 6x8x11, 5"
20
75030010100
Case Bush
21
58038022000
"cu-seal Ring Din7603-12x18x1, 5"
22
58030021000
"oildrain Plug W.mag. M 12x1, 5"
23
77038022000
Oil Intakepipe
24
0402050080
Cylinder Roller Zro 5x8
25
0025060856
Hh Collar Screw M6x85 Tx30
60
77230099000
Gasket Set 350 Sx-f
