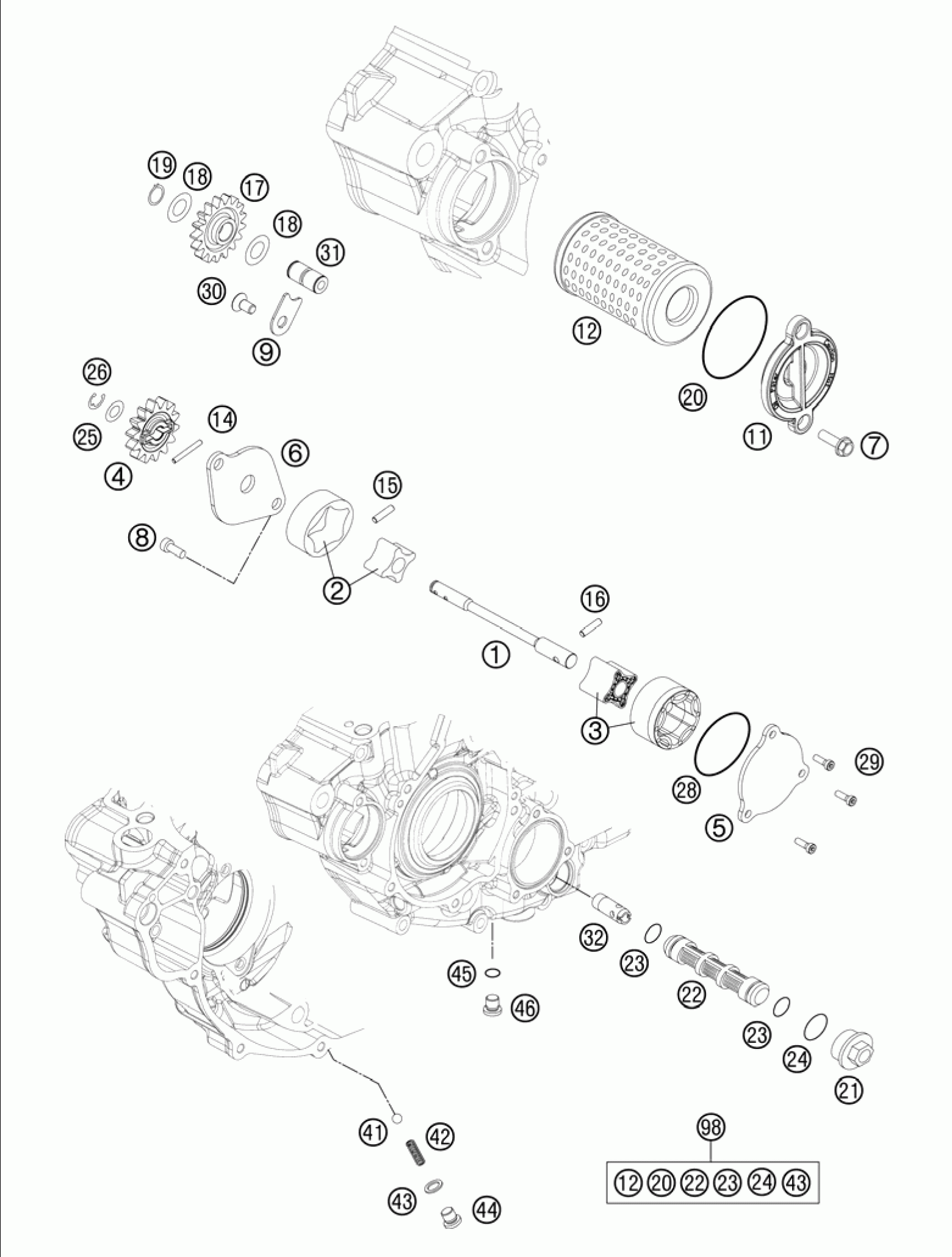

Масляная система

Husaberg FE 350 ENGINE
Husaberg
#oem кодцена
1
77238102000
Масляный Насос Вал
2
59038011012
Oilpump Rotor 12mm G-95r/003
3
61238111000
Rotor-set Cpl. 22mm
4
77038001100
Oil Pump Gear 14t 08
5
78038004000
Oil Pump Cover Suction Pump
6
77238003100
Oil Pump Cover R/s
7
0025060166
Винт м6х16
8
0984050123S
Cylind. Scr. Din6912 M5x12 8.8
9
77238061050
Axial-circlip
11
77338041200
Oil Filter Cover 08
14
0402251980
"needlerol.din5402 Nra 2, 5x19, 8"
15
0402251180
"needle Roller Din5402 2, 5x11, 8"
16
0402041580
"needle Roller Nrb 4x15, 8 G2"
17
77038006100
Oilpump Idler Gear 08
18
0988121805
"shim Washer Din0988-12x18x0, 50"
19
0471120010
Circlip Din0471-12x1
20
07703305178
"o-ring 33, 05x1, 78"
21
59038017000
"plug M20x1, 5 Ws=13"
22
59038016100
Oil Screen
23
0770125015
"o-ring 12, 5x1, 5 Nbr"
24
0770020170
"o-ring 17, 17x1, 78 Glo"
25
58038007755
"stop Disk 8, 1 X 15 X 0, 5"
26
0799060000
"tab Washer Din6799-rs 6, 0"
28
0770440020
"o-ring 44, 00x2, 00 Viton"
29
0984050163S
Cyl. Screw Din6912 M5x16 8.8
30
0018050103
Int. Torx Oval Head M 5x10 8.8
31
77038013100
Bushing Pin
32
77038022000
Oil Intakepipe
41
0401090003
Ball Din5401-9
42
58038023300
Pressure Spring L=25mm D=1mm
43
58038022000
"cu-seal Ring Din7603-12x18x1, 5"
44
0908120153
"plug Din0908-m12x1, 5"
45
0770110015
"o-ring 1, 5x11 Silicon"
46
78036081000
"holding Bolt M14x1, 5"
98
00050000083
Oilfilter-gasket Set 350 Sx-f
