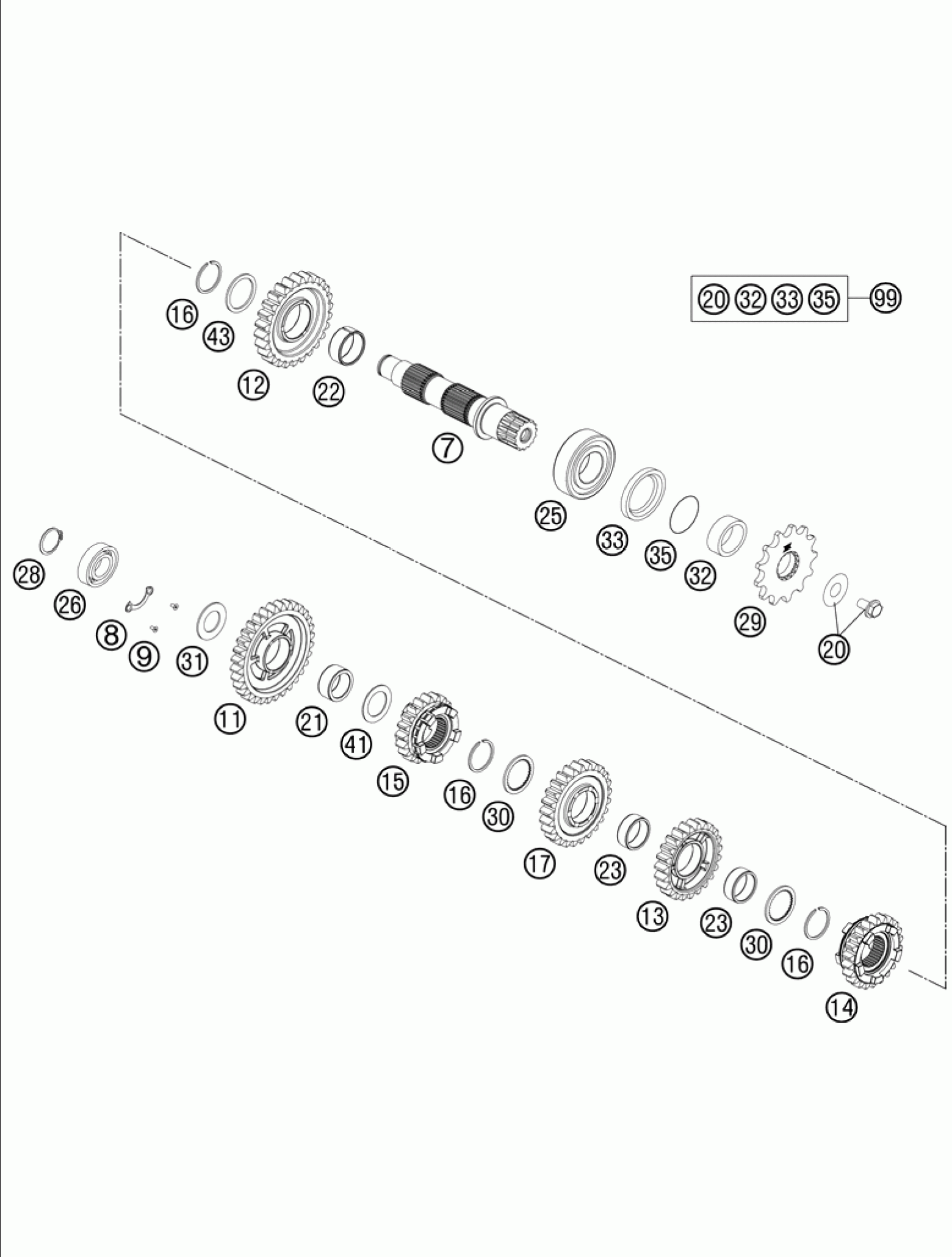

Трансмиссия 2-контрпривод

Husaberg FE 350 ENGINE
Husaberg
#oem кодцена
7
77233110000
Промежуточный вал
8
78033132000
Tab Washer Bearing Count.shaft
9
0019050106
Int. Torx Flat Head M5x10 10.9
11
54833211000
"idler Gear 1. G, Z=32"
12
54833212000
"idler Gear 2. G., Z=26"
13
54833214000
"idler Gear 4.g., Z=23"
14
54833215000
"sliding Gear 5.g., Z=22"
15
54833216000
"sliding Gear 6.g., Z=20"
16
0417024000
Circlip Ws24
17
54833213000
"idler Gear 3.g., Z= 25"
20
59033034044
Screw 10.9+spring Washer
21
0405202612
Needle Bearing K 20x26x12
22
0405242812
"neddle Bear. K24x28x11, 9 Div."
23
0405222611
Needle Bear.k 22x26x10 Divided
25
49030023000
Cyl.roll Bearing Nj205
26
0625062035
Ball Bearing 6203 Jr2 C3
28
0471170015
"circlip Din 0471-17x1, 5"
29
50033029013
Front Sprocket 13-t
29
50033029014
Front Sprocket 14-t
30
54833043000
"stop Disc 25x0, 8x30x30x7h"
31
77233020000
"stop Disk 17, 2x30x1, 3"
32
54633014100
Spacer Bushing 12mm
33
0760324571
Shaft Seal Ring 32x45x7 Bslnbr
35
0770020220
"o-ring 25, 12x1, 78 Nbr70"
41
54833080000
"stop Disc 20, 2x30x1"
43
54833044000
"stop Disc 25x31x1, 5"
99
00050000941
Counter Shaft Rep.kit 4 Stroke
