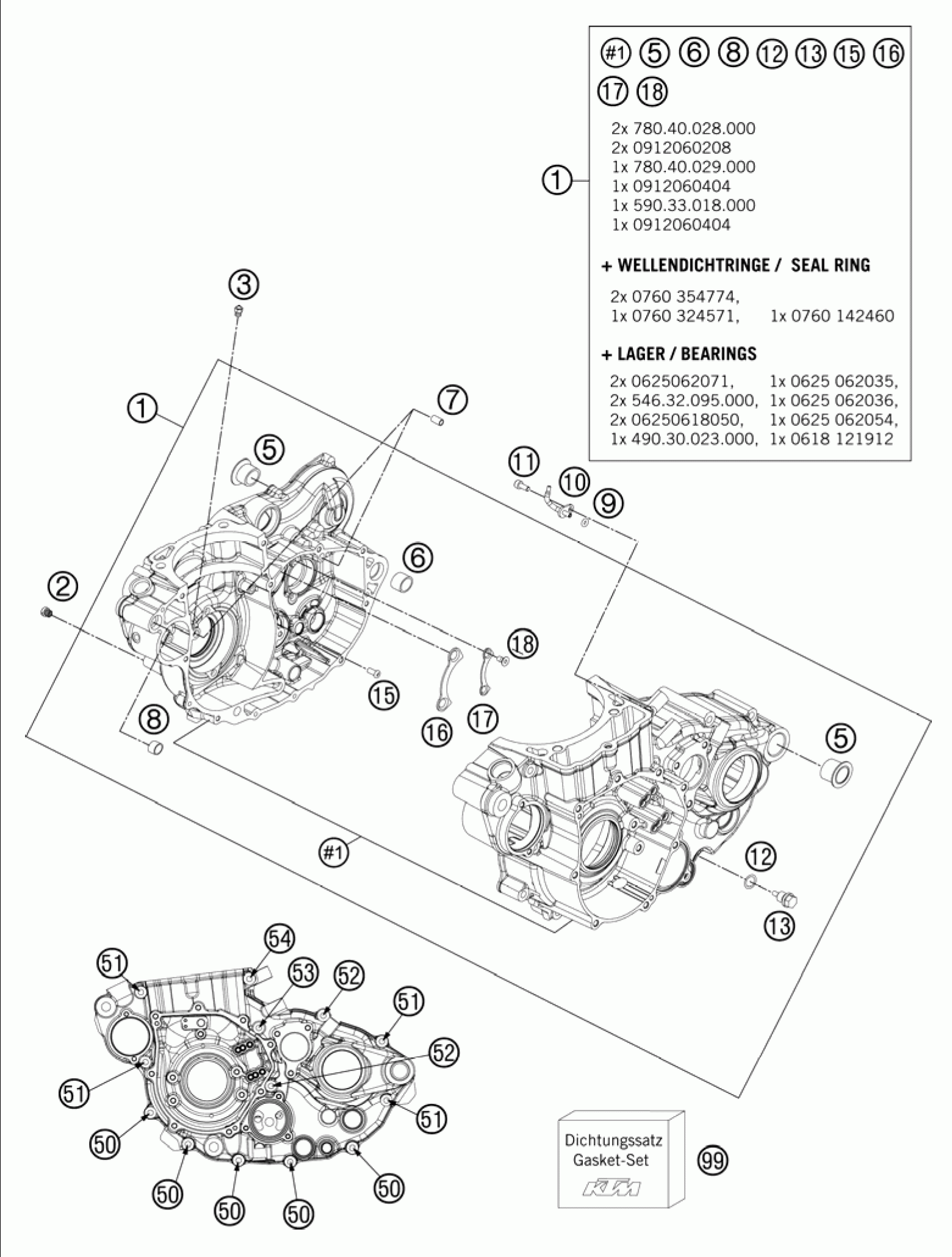

Картер двигателя

Husaberg FE 501 ENGINE

Картер двигателя

#

oem код

название

цена

1

Engine Case Cpl.

Engine Case Cpl.

2

Main Jet 145

Main Jet 145

3

Oil Jet 70 M5

Oil Jet 70 M5

5

Case Bush

Case Bush

6

Dowel 21x12 03

Dowel 21x12 03

7

"dowel 6x8x11, 5"

"dowel 6x8x11, 5"

8

Dowel 17 X 13 X 12

Dowel 17 X 13 X 12

9

"o-ring 3, 5x2, 00 Nbr"

"o-ring 3, 5x2, 00 Nbr"

10

Oil Jet Angled 70

Oil Jet Angled 70

11

Ah.screw Din0912-m 4x10

Ah.screw Din0912-m 4x10

12

"cu-seal Ring Din7603-12x18x1, 5"

"cu-seal Ring Din7603-12x18x1, 5"

13

"oildrain Plug W.mag. M 12x1, 5"

"oildrain Plug W.mag. M 12x1, 5"

15

Int. Torx Oval Head M 5x10 8.8

Int. Torx Oval Head M 5x10 8.8

16

Tab Washer Bearing Main Shaft

Tab Washer Bearing Main Shaft

17

Tab Washer Bearing Count.shaft

Tab Washer Bearing Count.shaft

18

Int. Torx Flat Head M5x10 10.9

Int. Torx Flat Head M5x10 10.9

50

Hh Collar Screw M6x40 Tx30

Hh Collar Screw M6x40 Tx30

51

Hh Collar Screw M6x60 Tx30

Hh Collar Screw M6x60 Tx30

52

Hh Collar Screw M6x75 Tx30

Hh Collar Screw M6x75 Tx30

54

Hh Collar Screw M6x85 Tx30

Hh Collar Screw M6x85 Tx30

99

Gasket Set 450/500 Exc 12

Gasket Set 450/500 Exc 12
