Кожух сцепления Оригинальные запчасти для мотоциклов Husaberg FE 501 ENGINE (2013)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

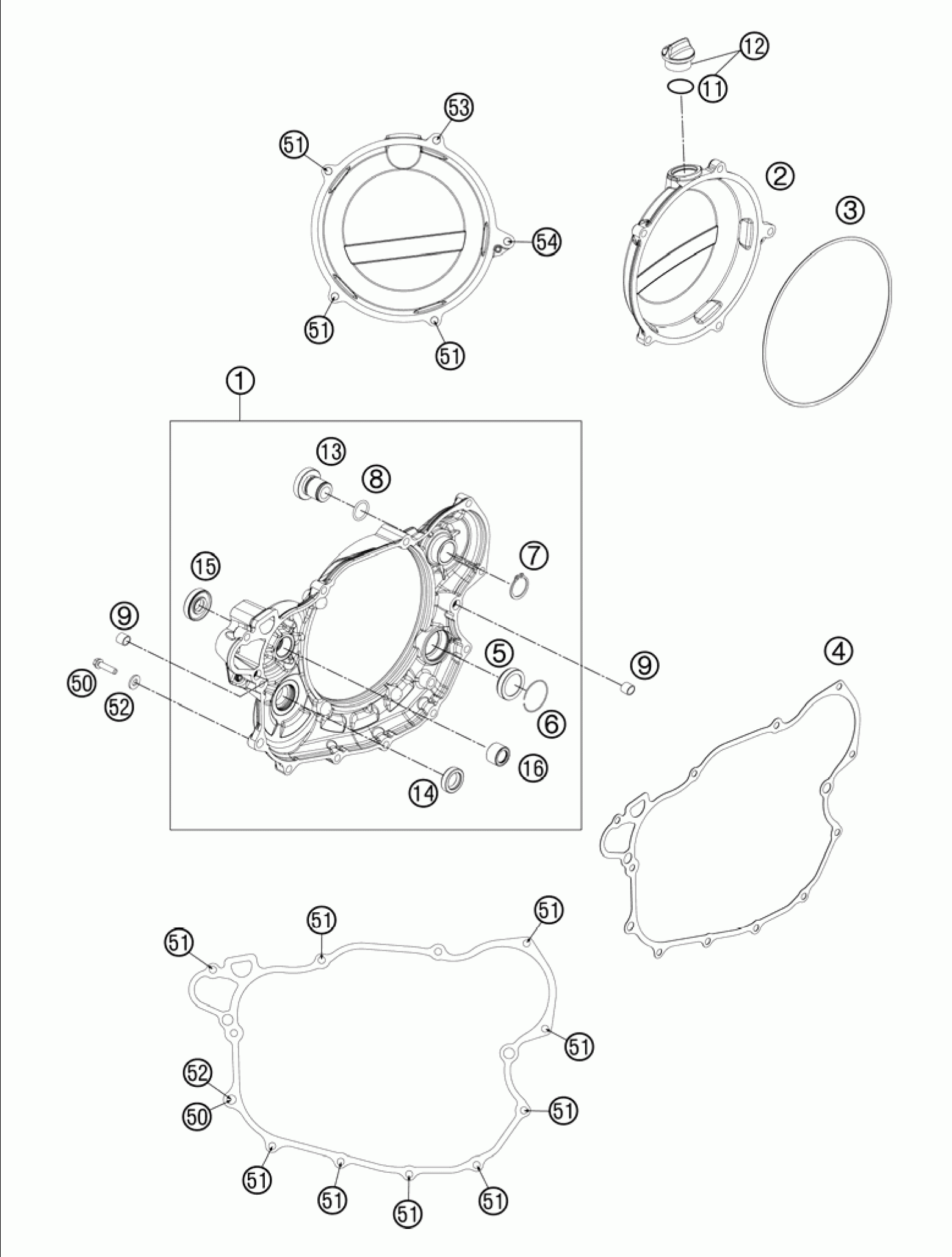

Кожух сцепления

Husaberg FE 501 ENGINE

Кожух сцепления

#

oem код

название

цена

1

Clutch Cover Cpl.

Clutch Cover Cpl.

2

Outer Clutch Cover

Outer Clutch Cover

3

Gasket - Clutch Outer Cover

Gasket - Clutch Outer Cover

4

Clutch Cover Gasket

Clutch Cover Gasket

5

Oil Level Glass Viton

Oil Level Glass Viton

6

Стопор

Стопор

7

"circlip Din0471-19x1, 2"

"circlip Din0471-19x1, 2"

8

"o-ring 16, 00x2, 00 Viton"

"o-ring 16, 00x2, 00 Viton"

9

"dowel 9, 8 X 7 X 10"

"dowel 9, 8 X 7 X 10"

11

"o-ring 19, 00x3, 00 Nbr"

"o-ring 19, 00x3, 00 Nbr"

12

Oil Filler Cap M24x3 With O-r

Oil Filler Cap M24x3 With O-r

13

Kick-starter Plug

Kick-starter Plug

14

Shaft Seal Ring 14x24x6 B

Shaft Seal Ring 14x24x6 B

15

Shaft Seal Ring 12x30x7 Ptfe

Shaft Seal Ring 12x30x7 Ptfe

16

Needle Bush Nk1212

Needle Bush Nk1212

50

Locating Screw

Locating Screw

51

Воротник Винт M6x25 Tx30

Воротник Винт M6x25 Tx30

52

Cu-seal Ring 8 X 14 X 3

Cu-seal Ring 8 X 14 X 3

53

Hh Collar Screw M6x55 Tx30

Hh Collar Screw M6x55 Tx30

54

Hh Collar Screw M6x60 Tx30

Hh Collar Screw M6x60 Tx30
