Рама Оригинальные запчасти для мотоциклов KTM 690 ENDURO CHASSIS (2013)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

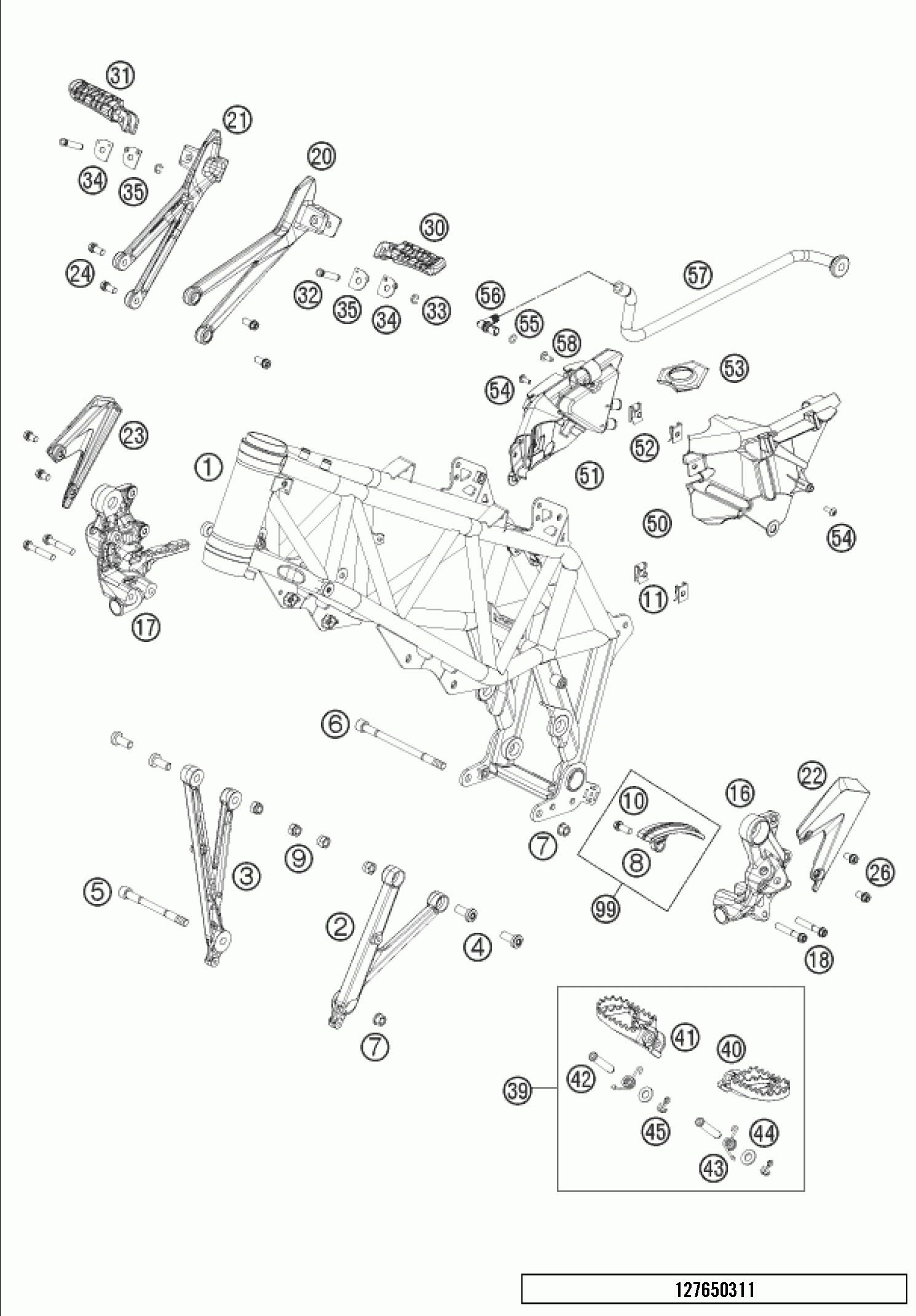

Рама

KTM 690 ENDURO CHASSIS

Рама

#

oem код

название

цена

1

Frame ""765la"" Orange

Frame ""765la"" Orange

4

Ah-collar Screw M10x24 Isa45

Ah-collar Screw M10x24 Isa45

5

Special Screw M10x115 Isk8 07

Special Screw M10x115 Isk8 07

6

Special Screw M10x152 Isk8 07

Special Screw M10x152 Isk8 07

7

Collar Nut M10 Ws=13

Collar Nut M10 Ws=13

8

Chain Slid. Guard 08

Chain Slid. Guard 08

9

Self Locking Nut M10 Cu Ws=14

Self Locking Nut M10 Cu Ws=14

10

Винт M8x20 Tx40

Винт M8x20 Tx40

11

Range Change Metal Nut M4

Range Change Metal Nut M4

16

Foot Rest Bracket L/s

Foot Rest Bracket L/s

17

Footrest Carrier R/s

Footrest Carrier R/s

18

Hh Collar Screw M8x45 Tx40

Hh Collar Screw M8x45 Tx40

20

% Foot Rest Bracket Rear L/s

% Foot Rest Bracket Rear L/s

21

Foot Rest Bracket Rear R/s

Foot Rest Bracket Rear R/s

22

Heel Protector Ls 09

Heel Protector Ls 09

23

Heel Protector Rs 08

Heel Protector Rs 08

24

Hh Collar Screw M8x16 Tx40

Hh Collar Screw M8x16 Tx40

26

Воротник винт м8х12

Воротник винт м8х12

30

Footrest Cpl. L/s Rear 03

Footrest Cpl. L/s Rear 03

31

Footrest Cpl. R/s Rear 03

Footrest Cpl. R/s Rear 03

32

Bolt For Footrest Rear 03

Bolt For Footrest Rear 03

33

Tab Washer Din6799-rs 6, 0

Tab Washer Din6799-rs 6, 0

34

Engage Panel Footrest R/s 03

Engage Panel Footrest R/s 03

35

Engage Panel Footrest L/s 03

Engage Panel Footrest L/s 03

39

Footrest L/s+r/s Cpl. 08-12

Footrest L/s+r/s Cpl. 08-12

40

Foot Peg L/s Silver 02

Foot Peg L/s Silver 02

41

Foot Peg R/s Silver 02

Foot Peg R/s Silver 02

42

Bolt For Foot Ped 08

Bolt For Foot Ped 08

43

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

44

Washer Din0125-a10, 5

Washer Din0125-a10, 5

45

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

50

Cover Frame L/s

Cover Frame L/s

51

Cover Frame R/s

Cover Frame R/s

52

Скоба фиксатор

Скоба фиксатор

53

Cover For Ignition Lock

Cover For Ignition Lock

54

Винт M5x14

Винт M5x14

55

O-ring 8x2 Silicone

O-ring 8x2 Silicone

56

Angle Connector Lc8 03

Angle Connector Lc8 03

57

Вентиляционный маслянный сепатор

Вентиляционный маслянный сепатор

58

Винт К50х18 Т20

Винт К50х18 Т20
