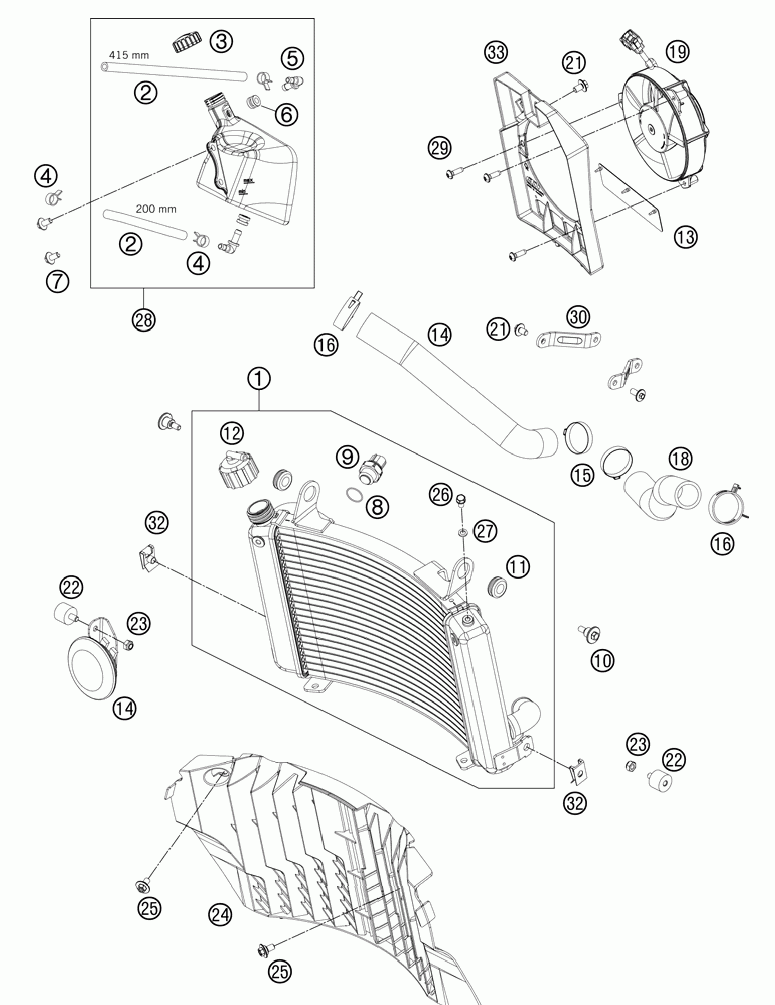

Система охлаждения

KTM 690 ENDURO ENGINE
KTM
#oem кодцена
1
76535010300
Радиатор
2
60035067001
Hose 6x10 Epdm 03
3
60035066000
Plug F. Expansion Tank
4
58007117000
Ydnac-clamp 10107 10mm
5
60035068000
Angle Connection Expans. Tank
6
60035069000
Rubber Grommet 6x9x13mm 04
7
0023060123
Винт M6x12
8
0770017015
O-ring 17x1, 5 Nb75
9
60035045000
Thermoswitch Lc8 102dg '03
10
60038083000
Screw Oil Tank Fixing 03
11
41001052000
Rubber Sleeve D=12mm
12
62535009000
Radiator Cap 1, 4 Bar
13
62635044050
Fan Clack Rubber 08
14
76535025000
Radiator Hose 08
15
00050325706
Variable One-ear Clamp 32, 5mm
16
00049320121
Clamp Std Dn32
18
76535024000
Radiator Hose 08
19
62635041000
Ventilator
21
0024060106
Hh Collar Screw M6x10 Tx30
22
43205062100
Rubber Grommet 20x15-m6x10 (1)
23
0985060003
Self Lock. Nut Din0985-m 6
24
76535140000
Radiator Guard
25
83008000012
Special Screw M6x12x3
26
0025060126
Винт м6х12
27
60035048000
Alu-gasket 6x10x1.5
28
76535065000
Expansion Tank Cpl. 07
29
0081050161
Болт 50x16 1451
30
76535001000
Retaining Plate Radiator 08
32
54603048100
Range Change Metal Nut M6
