ВОДЯНОЙ НАСОС

KTM 990 ADV ENGINE

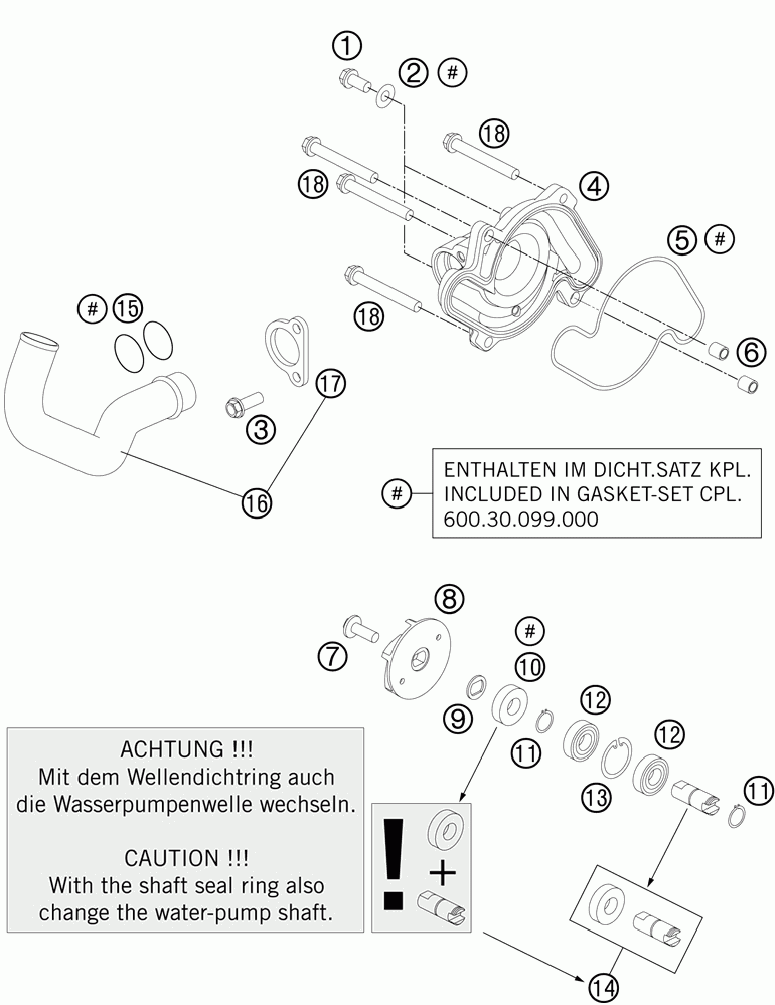

ВОДЯНОЙ НАСОС

#

oem код

название

цена

1

Hh Collar Screw M6x10 Tx30

Hh Collar Screw M6x10 Tx30

2

Cu-seal Ring Din7603-6x10x1

Cu-seal Ring Din7603-6x10x1

3

Винт м6х16

Винт м6х16

4

Molded Ring Water Pump Cov. 09

Molded Ring Water Pump Cov. 09

5

Water-pump Gasket 03

Water-pump Gasket 03

6

Dowel 6x8x11, 5

Dowel 6x8x11, 5

7

Hh Collar Screw M6x15 Tx30

Hh Collar Screw M6x15 Tx30

8

Water Pump Rotor 08

Water Pump Rotor 08

9

Form Washer 16x1 Niro 03

Form Washer 16x1 Niro 03

10

Shaft Seal Ring 12x30x7 Ptfe

Shaft Seal Ring 12x30x7 Ptfe

11

Circlip Din0471-12x1

Circlip Din0471-12x1

12

Grooved Ball Bearing 6901v C3

Grooved Ball Bearing 6901v C3

13

Circlip Din472 D=24x1, 2

Circlip Din472 D=24x1, 2

14

Water Pump Shaft W. Seal Ring

Water Pump Shaft W. Seal Ring

15

O-ring 25, 00x3, 00 Nbr 70

O-ring 25, 00x3, 00 Nbr 70

16

Aluminum Tube Water-pump+clamp

Aluminum Tube Water-pump+clamp

17

Fixing Clamp Water-p. Tube 03

Fixing Clamp Water-p. Tube 03

18

Hh Collar Screw M6x60 Tx30

Hh Collar Screw M6x60 Tx30
