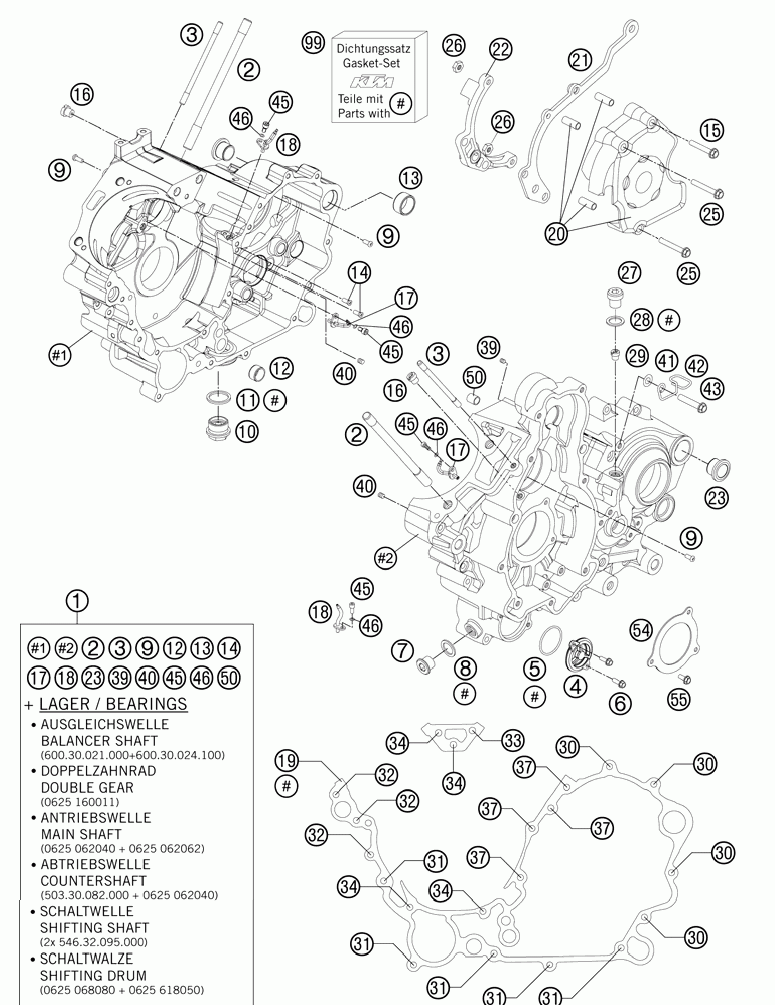

Картер двигателя

KTM 990 ADVR ENGINE

Картер двигателя

#

oem код

название

цена

1

Engine Case Cpl. With Bearings

Engine Case Cpl. With Bearings

2

Stud M10x161 06

Stud M10x161 06

3

Stud M 6x101 10.9 03

Stud M 6x101 10.9 03

4

Oilfilter Cap

Oilfilter Cap

5

O-ring 39, 34x2, 62

O-ring 39, 34x2, 62

6

Hh Collar Screw M5x16 Tx30

Hh Collar Screw M5x16 Tx30

7

Plug Screw M14x1, 5 Alu Ah

Plug Screw M14x1, 5 Alu Ah

8

Cu-seal Ring 14x20x1, 5 Lc8 02

Cu-seal Ring 14x20x1, 5 Lc8 02

9

Int. Torx Oval Head M 5x10 8.8

Int. Torx Oval Head M 5x10 8.8

10

Drain Plug W. Magnet

Drain Plug W. Magnet

11

Cu-seal Ring Din7603-22x27x2

Cu-seal Ring Din7603-22x27x2

12

Dowel 17 X 14 X 9, 5

Dowel 17 X 14 X 9, 5

13

Dowel 20, 1x24x12 03

Dowel 20, 1x24x12 03

14

Int. Torx Flat Head M5x10 10.9

Int. Torx Flat Head M5x10 10.9

15

Воротник Винт M6x30 Tx30

Воротник Винт M6x30 Tx30

16

Jet 60 Dellorto M6x0, 75

Jet 60 Dellorto M6x0, 75

17

Oil Jet Curved ""70"" Blue

Oil Jet Curved ""70"" Blue

18

Oil Jet Curved ""70"" Green

Oil Jet Curved ""70"" Green

19

Engine Case Gasket 0, 5mm 05

Engine Case Gasket 0, 5mm 05

20

Chain Sprocket Cover Cpl. 03

Chain Sprocket Cover Cpl. 03

21

Chain Fail. Protection Lc8 03

Chain Fail. Protection Lc8 03

22

Adapter F. Hydr. Clutch 03

Adapter F. Hydr. Clutch 03

23

Swing Bearing Outside Lc8 03

Swing Bearing Outside Lc8 03

25

Воротник Винт M6x35 Tx30

Воротник Винт M6x35 Tx30

26

Self Lock. Nut Din0985-m 6

Self Lock. Nut Din0985-m 6

27

Oil Drain Plug M10x1, 5 Ah-ws=6

Oil Drain Plug M10x1, 5 Ah-ws=6

28

Уплотнитель шланга

Уплотнитель шланга

29

Reducing Jet ""30"" M6x0, 75

Reducing Jet ""30"" M6x0, 75

30

Hh Collar Screw M6x40 Tx30

Hh Collar Screw M6x40 Tx30

31

Hh Collar Screw M6x60 Tx30

Hh Collar Screw M6x60 Tx30

32

Hh Collar Screw M6x65 Tx30

Hh Collar Screw M6x65 Tx30

33

Hh Collar Screw M6x70 Tx30

Hh Collar Screw M6x70 Tx30

34

Hh Collar Screw M6x75 Tx30

Hh Collar Screw M6x75 Tx30

37

Hh Collar Screw M6x90 Tx30

Hh Collar Screw M6x90 Tx30

39

Thread Pin Din916 M5x4-45h

Thread Pin Din916 M5x4-45h

40

Thread Pin Din0551-m 6x 5

Thread Pin Din0551-m 6x 5

41

Washer Din0125-a 6, 4

Washer Din0125-a 6, 4

42

Cable Support 03

Cable Support 03

43

Hh Collar Screw M6x15 Tx30

Hh Collar Screw M6x15 Tx30

45

Ah.screw Din0912-m 4x10

Ah.screw Din0912-m 4x10

46

O-ring 3, 5x2, 00 Nbr

O-ring 3, 5x2, 00 Nbr

50

Шпонка 9, 8 Х 7 Х 10

Шпонка 9, 8 Х 7 Х 10

54

Bracket For Bearing Insert 05

Bracket For Bearing Insert 05

55

Hh Collar Screw M5x12 Tx30

Hh Collar Screw M5x12 Tx30

99

Gasket Set Cpl. 03

Gasket Set Cpl. 03
