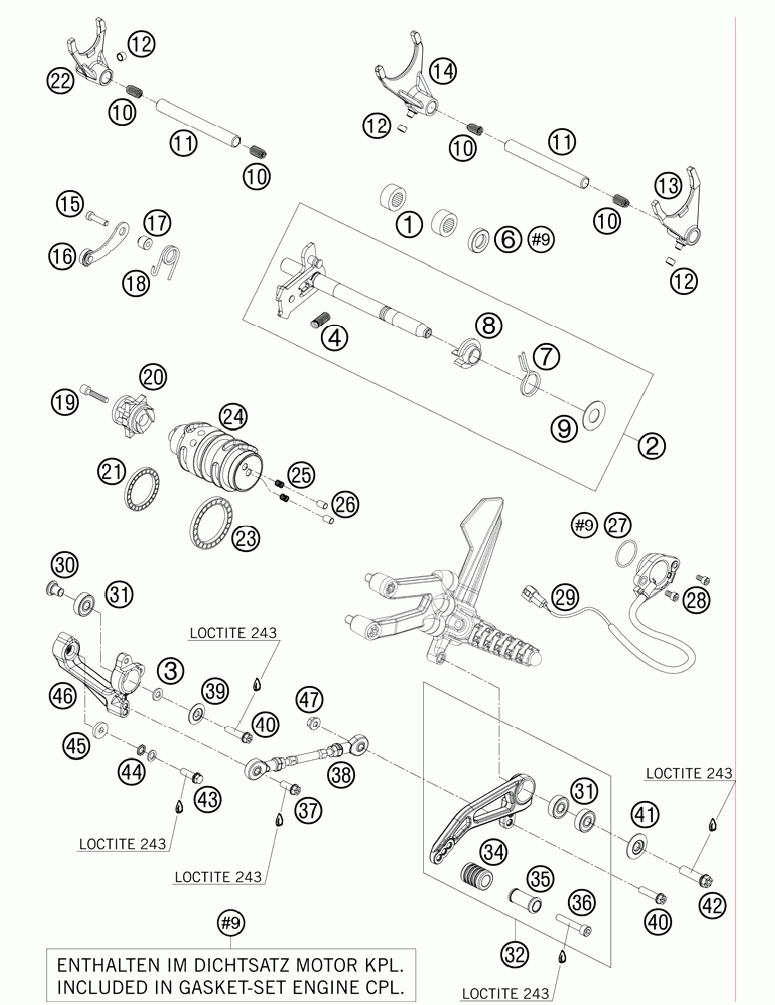

Механизм переключения

KTM RC8R TRACK ENGINE

Механизм переключения

#

oem код

название

цена

1

Needle Bear.hk 1412 14x20x12

Needle Bear.hk 1412 14x20x12

2

% Shift Shaft Cpl.

% Shift Shaft Cpl.

3

Washer Din0125-a 6, 4

Washer Din0125-a 6, 4

4

Tensioning Spring 0, 8mm

Tensioning Spring 0, 8mm

6

Shaft Seal Ring 14x24x6 B

Shaft Seal Ring 14x24x6 B

7

Returnspring 2mm

Returnspring 2mm

8

Spring Guide

Spring Guide

9

Stop Disk 14x30x1

Stop Disk 14x30x1

10

Pressure Spring 0, 9mm

Pressure Spring 0, 9mm

11

Shift Rail 11, 8x105mm

Shift Rail 11, 8x105mm

12

Shifting Roller 6x8x5, 2

Shifting Roller 6x8x5, 2

13

Shifting Fork 08

Shifting Fork 08

14

Shifting Fork 08

Shifting Fork 08

15

Винт М6х20

Винт М6х20

16

Locking Lever Cpl. 07

Locking Lever Cpl. 07

17

Sleeve For Locking Lever 07

Sleeve For Locking Lever 07

18

Spring - Locking Lever

Spring - Locking Lever

19

Ah Screw Din0912-m 6x30

Ah Screw Din0912-m 6x30

20

Shift Drum Locating Cpl.

Shift Drum Locating Cpl.

21

Ball Bearing 61805 C3

Ball Bearing 61805 C3

22

Shifting Fork 08

Shifting Fork 08

23

Grooved Ball Bearing 6808 Jrc3

Grooved Ball Bearing 6808 Jrc3

24

Shift Roller Cpl. 09

Shift Roller Cpl. 09

25

Contact Spring 03

Contact Spring 03

26

Contact Bolt 03

Contact Bolt 03

27

O-ring 27, 5x2, 5 Nbr

O-ring 27, 5x2, 5 Nbr

28

Ah Screw Din0912-m 5x12

Ah Screw Din0912-m 5x12

29

Gear-position Sensor 06

Gear-position Sensor 06

30

Collar Bushing

Collar Bushing

31

Grooved Ball Bear. 608 2rs C3

Grooved Ball Bear. 608 2rs C3

32

Shifting Lever Cpl. 09

Shifting Lever Cpl. 09

34

Rubber For Shift Lever 05

Rubber For Shift Lever 05

35

Gear Lever

Gear Lever

36

Ah Screw Din0912-m 6x45

Ah Screw Din0912-m 6x45

37

Hh Collar Screw M6x16 Isa 30

Hh Collar Screw M6x16 Isa 30

38

Shift Rod Cpl.

Shift Rod Cpl.

39

Special Washer 6, 4x21, 4x2, 6

Special Washer 6, 4x21, 4x2, 6

40

Воротник Винт M6x25 Tx30

Воротник Винт M6x25 Tx30

41

Special Washer D=26x3 Alu Elo.

Special Washer D=26x3 Alu Elo.

42

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

43

Special Screw M6x19 Ws=8 10.9

Special Screw M6x19 Ws=8 10.9

44

Pair Of Washers M 6 Nordlock

Pair Of Washers M 6 Nordlock

45

Steel Washer 6, 4x17x3

Steel Washer 6, 4x17x3

46

Relay Lever Shift. Shaft Black

Relay Lever Shift. Shaft Black

47

Self Locking Nut M6 10.9

Self Locking Nut M6 10.9
