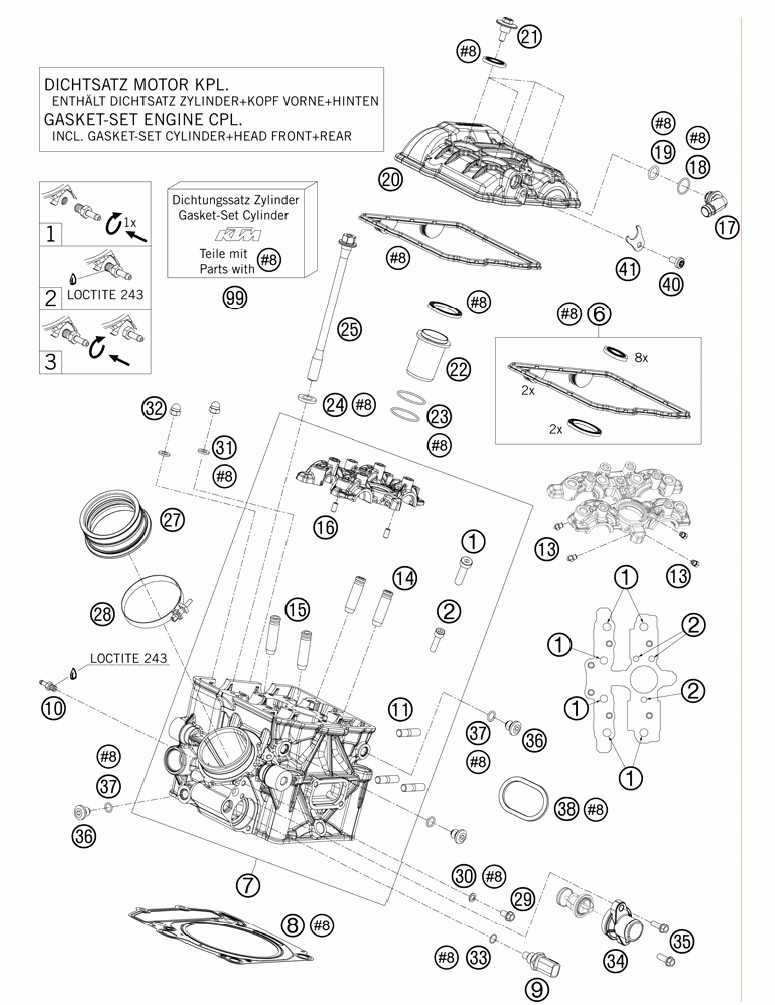

Головка цилиндра задняя

KTM RC8R TRACK ENGINE
KTM
#oem кодцена
1
0984080305
Ah Screw Din7984-m 8x30 10.9
2
0912060255
Ah Screw Din0912-m 6x25 10.9
6
61236099100
Valve Cover Gasket Set
7
6123612010024
Cyl.head Rc8 Rear 09
8
69130036000
Cylinder Head Gasket Mls
9
60011252000
Temperat.-sensor Water Lc8 02
10
61036023100
Vacuum Conection 2006
11
0835080165
Stud M 8x16 10.9
13
60030063050
Oil Jet 50 05
14
61236026001
Valve Guide Exhaust 08
15
61236025001
Valve Giude Intake 6mm
16
0402050980
Needle Roller Din5402 5x9, 8
17
61236082100
Connecting Angle
18
0770150151
O-ring 15, 00x1, 50 Viton
19
0770120020
O-ring 12, 00x2, 00 Nbr 70
20
6123615214433
Valve Cover Rear
21
60036052020
Collar Screw M 6 Ws=10 03
22
61236075000
Insert Spark-plug Shaft 08
23
0770298178
O-ring 29, 87x1, 78 Viton
24
61236079050
Washer 11, 1x20x3 08
25
61236079000
Cylinder Head Screw 08
27
61236044000
Rubbersleeve Intake Flange 08
28
61236048000
Hose Clamp Gemi 66 / 1
29
0025060106
Hh Collar Screw M6x10 Tx30
30
0603061001
Cu-seal Ring Din7603-6x10x1
31
0125060003
Washer Din0125-a 6, 4
32
61230045000
Cap Nut M6 Stainless Steel
33
0770100020
O-ring 10, 00x2, 00 Silcone
34
61235019100
Water Connection Cpl.
35
0025060206
Винт М6х20
36
77336056095
Резьбовая пробка
37
07700900151
O-ring 9x1, 5 V80 Sh
38
69005005100
Exhaust Pipe Flange Gasket
99
69130097000
Gasket Kit Cylinder+head F+r
