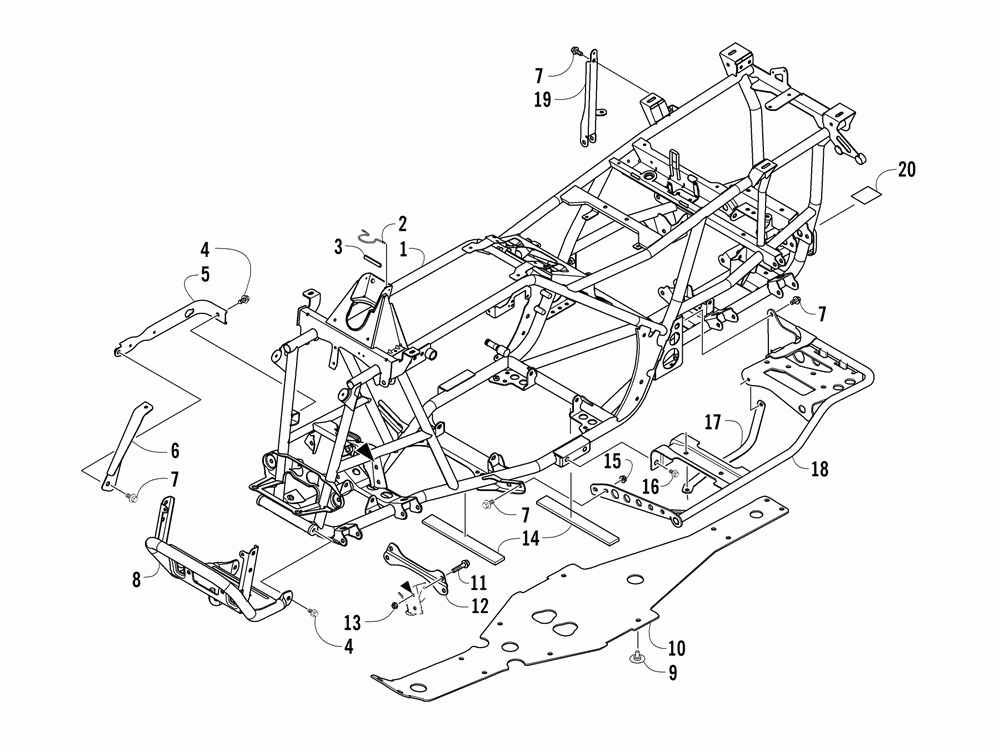

Рама ,баипера и защита

Arctic Cat TRV 500
Arctic Cat
#oem кодцена
1
4506-831
Frame, Main-trv-ptd Black (vp)
2
2416-401
Clip, Wire Harness (2 Per Pack)
3
0706-371
Окантовка
4
8409-020
Винт M10x1.25x20 (отпуск.по 4 шт)
5
1506-596
Channel, Bumper Mounting-black
6
1506-562
Bracket, Bumper-rh-black
6
1506-563
Bracket, Bumper-lh-black
7
8408-816
Screw, Cap-hfh M8x1.25x16 Cl8.8 Z&y (5 Per Pack)
8
4506-826
Bumper, Front-ptd Blk (vp)
9
0423-101
Винт - 6mm (отпуск.по 5 шт)
10
2406-091
Panel, Belly
11
8409-025
Screw, Cap-hfh M10x1.25x25 Cl10.9 Z&y
12
2516-852
Brace, A-arm-ptd Black
13
0423-744
Гайка M10x1.25 W/ 204 Patch (отпуск.по 2шт)
14
0406-289
Pad, Battery-top Rr
15
8424-802
Гайка
16
8409-016
Screw, Cap-hfh M10x1.25x16 Cl10.9 Z&y (4 Per Pack)
17
2406-216
Strap, Footrest Support-rh
17
2406-217
Strap, Footrest Support-lh
18
1506-848
Footrest, Rh-weldment
18
1506-849
Footrest, Lh-weldment
19
2506-447
Bracket, Fuel Tank-black
20
1411-077
Decal, Warning-towing(1050 Lb)
