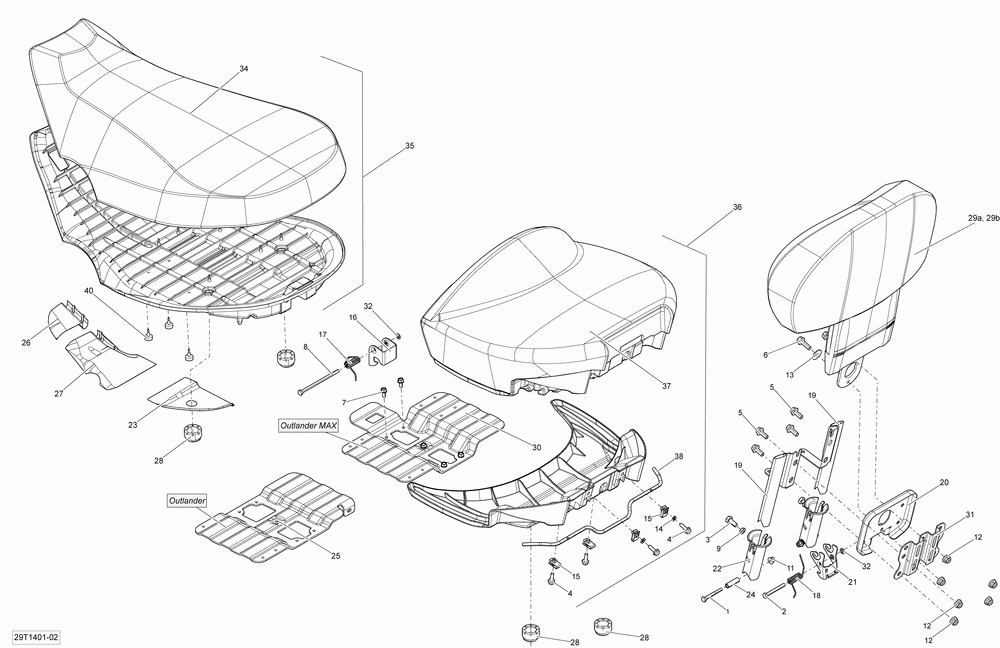

Сиденье

Can-Am (Bombardier) Outlander Max 400 EFI, STD, XT
Can-Am (Bombardier)
#oem кодцена
1
207065034
Screw-hex.cap Din.931 (outlander Max ) (5.000 Per Pack)
2
207065544
Screw-hex.cap Din.931 (outlander Max ) (10.000 Per Pack)
3
207182034
Screw-hex.cap Din.933 (outlander Max ) (5.000 Per Pack)
4
207662044
Screw-hex.flange Din.6921 (outlander Max ) (25.000 Per Pack)
5
207682044
Screw-hex.flange Din.6921 (outlander Max ) (10.000 Per Pack)
6
207682534
Screw-hex.flange Din.6921 (outlander Max ) (10.000 Per Pack)
7
210261280
Винт
8
230061044
Screw-hex.cap Din.931 (10.000 Per Pack)
9
232180600
Jam Nut Hexagonal Din.439b-a2 (outlander Max ) (25.000 Per Pack)
11
233261434
Nut-flange Elastic Din.6926 (outlander Max ) (8.000 Per Pack)
12
233281414
Nut-flange Elastic Din.6926 (outlander Max ) (10.000 Per Pack)
13
234082410
Washer-flat Din.9021b (outlander Max ) (10.000 Per Pack)
14
234161471
Washer-lock Black Din.127b (outlander Max ) (10.000 Per Pack)
15
250000048
Extruded Panel Nut M6 X 1.0 (outlander Max ) (10.000 Per Pack)
16
708000144
Loquet *latch
17
708000369
Пружина
18
708000369
Ressort *spring (outlander Max )
19
708000439
Tige Dossier *backrest Stem (outlander Max )
19
708000443
Tige Dossier *backrest Stem (outlander Max )
20
708000446
Plaque Av. *front Plate (outlander Max )
21
708000448
Loquet *latch (outlander Max )
22
708000461
Guide Tige *rod Guide (outlander Max )
23
708000514
Теплозащита
24
708000530
Douille Int. *bushing-int. (outlander Max )
26
708000649
Теплозащита
27
708000650
Теплозащита
28
708000760
Butee Caout. *rubber Bumper
30
708000817
Renfort Siege *seat Reinforcement (outlander Max )
31
708000855
Plaque Arr. *rear Plate (outlander Max )
32
732610072
Ecrou Pression *push Nut (10.000 Per Pack)
34
708000556
Housse Siege *seat Cover
36
708000805
Siege Arriere *rear Seat (outlander Max )
38
708000822
Poigne Loquet *latch Handle (outlander Max )
40
708000759
Стопор резиновый
29a
708000809
Dossier Ass. *backrest-assy. (outlander Max )
