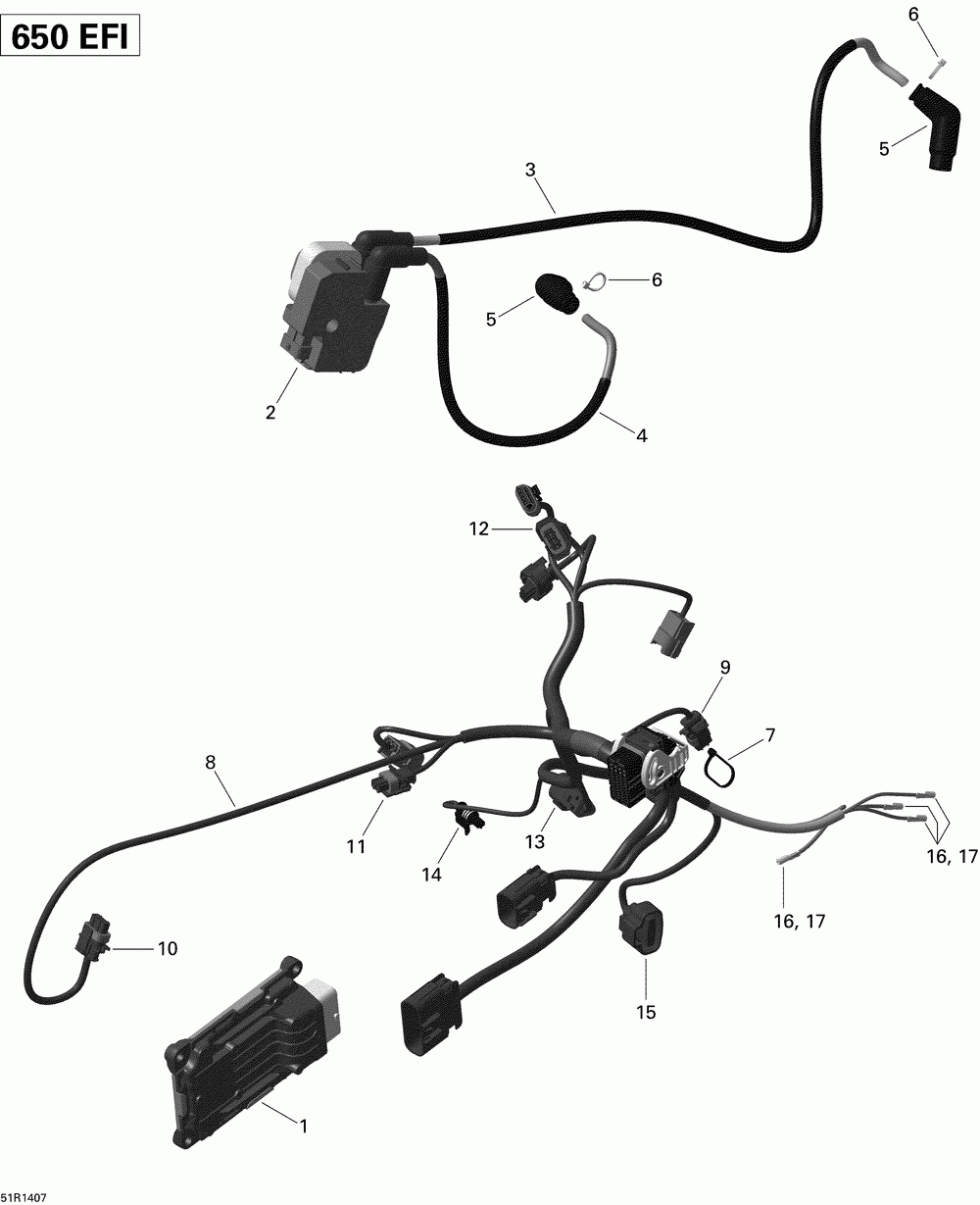

10- engine harness and electronic module outlander max
10- engine harness and electronic module outlander max

10- engine harness and electronic module outlander max

Can-Am (Bombardier) Outlander MAX 650EFI STD, DPS, X, XT-P

10- engine harness and electronic module outlander max

#

oem код

название

цена

1

Module Ecu *electronic Box (except Europe )

Module Ecu *electronic Box (except Europe )

1

Module Ecu *electronic Box (europe )

Module Ecu *electronic Box (europe )

2

Катушка зажигания

Катушка зажигания

3

Cable Ass. *cable-assy 610 Mm Pto

Cable Ass. *cable-assy 610 Mm Pto

4

Cable-assy 365 Mm Mag

Cable-assy 365 Mm Mag

5

Spark Plug Connector

Spark Plug Connector

6

Bride Serrage *clamp (2.000 Per Pack)

Bride Serrage *clamp (2.000 Per Pack)

7

Tie Rap 94mm *tie-rap 94mm (50.000 Per Pack)

Tie Rap 94mm *tie-rap 94mm (50.000 Per Pack)

8

Cablage *wiring Harness (includes 8 To 17 )

Cablage *wiring Harness (includes 8 To 17 )

9

Bloc 2 Circ.mal*housing-tab

Bloc 2 Circ.mal*housing-tab

10

Bloc 3 Circ.mal*housing-tab

Bloc 3 Circ.mal*housing-tab

11

Bloc 2 Circ.mal*housing-tab

Bloc 2 Circ.mal*housing-tab

12

Bloc Connect. *connector

Bloc Connect. *connector

13

Корпус-папа

Корпус-папа

14

Bloc 1 Circ.mal*housing-tab (5.000 Per Pack)

Bloc 1 Circ.mal*housing-tab (5.000 Per Pack)

15

Logement Male *male Housing 4 Circ.

Logement Male *male Housing 4 Circ.

16

Cosse Femelle *terminal-femal (5.000 Per Pack)

Cosse Femelle *terminal-femal (5.000 Per Pack)

17

Etui Thermique *sheath-insulat (5.000 Per Pack)

Etui Thermique *sheath-insulat (5.000 Per Pack)
