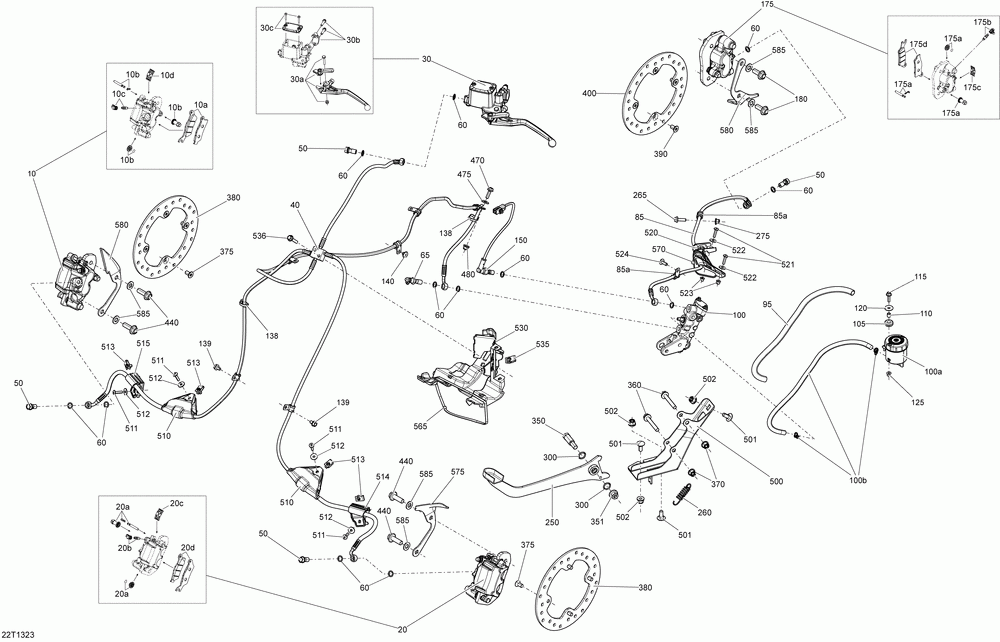

Тормоза

Can-Am (Bombardier) Outlander 650EFI XMR
Can-Am (Bombardier)
#oem кодцена
10
705600861
Etrier Droit *right Caliper (includes 10 To 10d )
20
705600862
Etrier Gauche *lh Caliper (includes 20 To 20d )
30
705600865
Maitre Cylindre*master-cylind. (includes 30 To 30c )
40
705601122
Boyau De Frein *brake Line
50
705600609
Boulon Banjo *bolt-banjo (10.000 Per Pack)
60
705600310
Rondelle Cuivre*copper Washer (10.000 Per Pack)
65
705601051
Vis De Purge *bleeder Screw
85
705601002
Boyau De Frein *brake Line (includes 85 To 85a )
95
415079900
Защитная оплетка шланга
100
705600847
Maitre Cylindre*master-cylind. (includes 100 To 100b )
105
414036300
Passe-fils *grommet (5.000 Per Pack)
10a
705601014
Ens.plaq. Frein*kit Pad-brake
10b
705601016
Ensemble Goup. *pin-set
10c
705601017
Ecrou De Purge *bleeder-screw
10d
705601018
Пружина
110
293900112
Втулка
115
207652044
Винт
120
224060201
Flat Washer (10.000 Per Pack)
125
233251434
Nut-flange Elastic Din.6926 (4.000 Per Pack)
138
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
139
210261040
Screw-forming Hex.hd.fl.din.7500d (5.000 Per Pack)
140
390406500
Rivet-pop 3/16 *rivet-pop 3/16 (50.000 Per Pack)
150
705600914
Interrupteur *brake Switch
175
705600859
Etrier Droit *rh Caliper (includes 175 To 175d )
180
207502546
Screw-hex.flange Din.6921 3m-2353y
20a
705601016
Ensemble Goup. *pin-set
20b
705601017
Ecrou De Purge *bleeder-screw
20c
705601018
Пружина
20d
705601015
Ens.plaq. Frein*kit Pad-brake
250
705601155
Pedale Frein *pedal-brake
260
705600792
Ressort Pedale *spring Pedal Br.
265
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
275
233261414
Гайка Din.6926 (отпускается по 10 шт)
300
293300144
Кольцо
30a
705601013
Ensem. Levier *lever Set
30c
219800096
Ens Capuchon *cap Set
350
250000513
Shoulder Screw M10
351
233201436
Гайка Din.6926 (отпускается по 10 шт)
360
207685544
Screw-hex.flange Din.6921 (2.000 Per Pack)
370
233281414
Гайка Din.6926 (отпускается по 10 шт)
375
235381646
Screw-torx Ctsk.fl.hd.s.grip M8 X 16 (10.000 Per Pack)
380
705600999
Disque De Frein*brake-disc
390
235381646
Screw-torx Ctsk.fl.hd.s.grip M8 X 16 (10.000 Per Pack)
400
705600999
Disque De Frein*brake-disc
440
207503046
Screw-hex.flange Din.6921 S.grip (5.000 Per Pack)
470
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
475
234062410
Washer-flat Din.9021b (10.000 Per Pack)
480
233261414
Гайка Din.6926 (отпускается по 10 шт)
500
705202000
Attache Pedale *pedal Bracket
501
207782044
Болт
502
233281414
Гайка Din.6926 (отпускается по 10 шт)
510
705600962
Protecteur Av. *fr. Protector
511
250000130
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
512
250200025
Rondelle M5 *washer M5 (10.000 Per Pack)
513
250000079
Extruded Panel Nut M5 X 0.8 (10.000 Per Pack)
514
705601048
Attache Gauche *left Bracket
515
705601049
Attache Droite *right Bracket
520
705600963
Protecteur Arr *rear Protector
521
250000465
Torx-truss M/s Gm6046m M5 X 20 (6.000 Per Pack)
522
250200025
Rondelle M5 *washer M5 (10.000 Per Pack)
523
233251494
Nut-flange Elastic Din.6926 (5.000 Per Pack)
524
250000261
Torx-truss M/s Gm6047m M6 X 16 (12.000 Per Pack)
530
705600983
Attache Boyau *hose Bracket
535
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
536
207563044
Винт
565
293750047
Tie Rap 533mm *tie-rap 533mm (20.000 Per Pack)
570
293750008
Tie Rap 368mm *tie-rap 368mm (10.000 Per Pack)
575
705601214
Deflecteur Ga *deflector Lh
580
705601215
Deflecteur Dr *deflector Lf
585
234001410
Шайба Din.125a (отпускается по 10 шт)
85a
705600459
Зажим
100a
705601020
Бак масляный
100b
705601019
Boyau Car.huile*hose-oil Housing
175a
705601016
Ensemble Goup. *pin-set
175b
705601017
Ecrou De Purge *bleeder-screw
175c
705601018
Пружина
175d
705601014
Ens.plaq. Frein*kit Pad-brake
