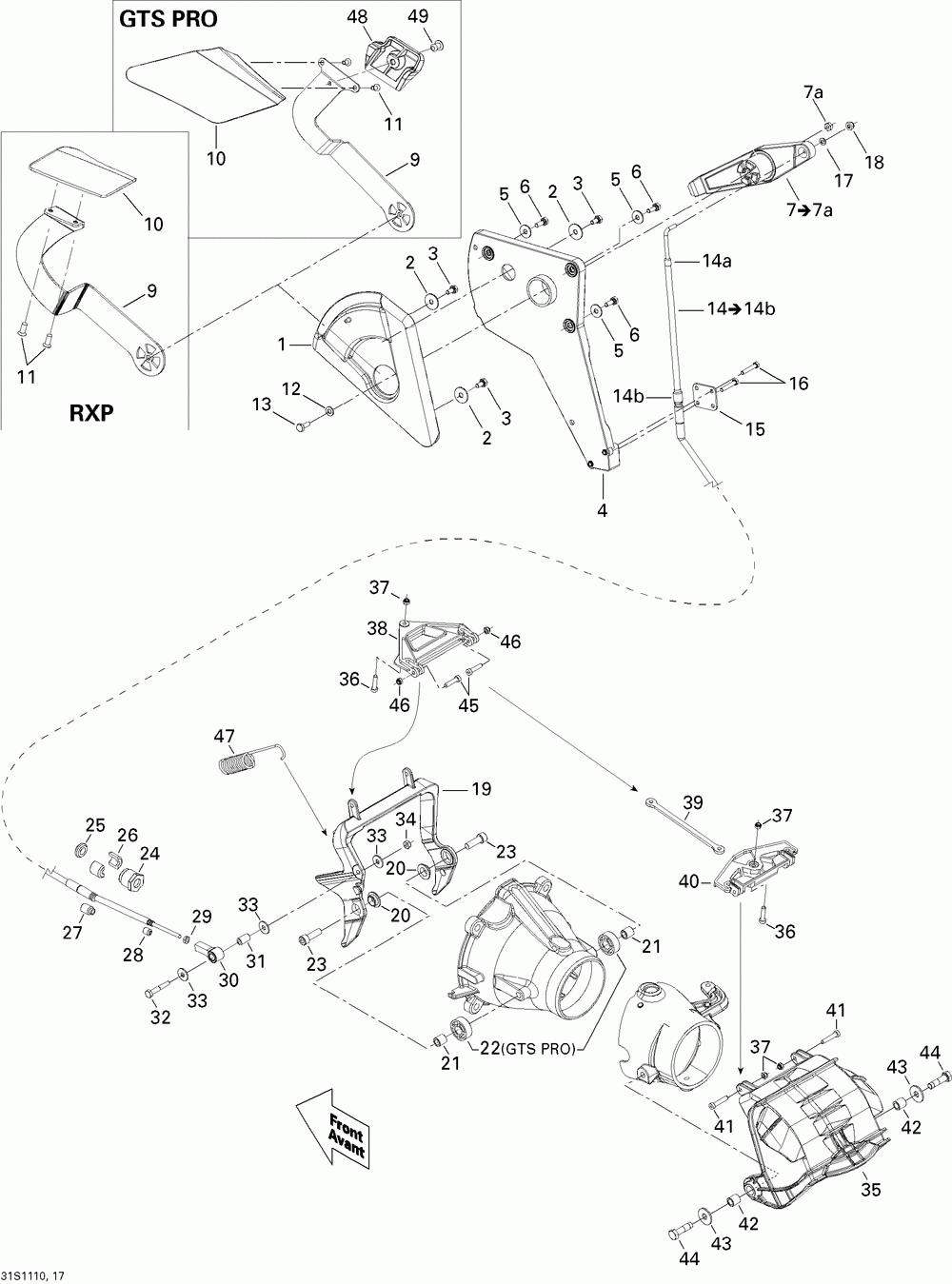

Задний ход

Sea-Doo (Bombardier) GTS Pro 130
Sea-Doo (Bombardier)
#oem кодцена
1
268000009
Корпус
2
250200022
Washer-flat M6.6 X 22 (10.000 Per Pack)
3
207361260
Screw-hex.cap Din.933a2 S.grip (25.000 Per Pack)
4
268000010
Support Cable *cable-support
5
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
6
207361660
Screw-hex.cap Din.933a2 S.grip (10.000 Per Pack)
7
271000986
Рычаг
9
268000022
Levier Manette *lever-handle (gts Pro )
10
271001727
Manette Renver.*handle-reverse (gts Pro )
11
250000319
Screw-ctsk.fl.hd.torx. M5x12 (gts Pro ) (10.000 Per Pack)
12
234061600
Washer-flat Din.125a-a2 (25.000 Per Pack)
13
207161660
Screw-hex.cap Din.933a2 (5.000 Per Pack)
14
268000017
Cable Renverse *reverse Cable
15
277001058
Plaque Retenue *bracket
16
207153060
Screw-hex.cap Din.933a2 (5.000 Per Pack)
17
234051600
Washer-flat Din.125a-a2 (10.000 Per Pack)
18
212000006
10-32 Nyl Ins Lock Nut Stainless Steel (5.000 Per Pack)
19
271001012
Bras Noir *arm-black
20
271000321
Douil.venturi*bushing-venturi (5.000 Per Pack)
21
271001039
Втулка
22
293900038
Douille *bushing (gts Pro )
23
250000026
Boulon De Pivot*screw-pivot (2.000 Per Pack)
24
277001729
Стопор троса
25
211100009
Rondelle Caout.*washer-rubber (5.000 Per Pack)
26
277000055
Demi-bague *half-ring (2.000 Per Pack)
27
268000018
Embout Grand *end Piece
28
268000019
Embout Petit *end Piece
29
212100005
Nut-hexagonal (5.000 Per Pack)
30
277001204
Rotule *joint
31
271001020
Втулка
32
207063560
Screw-hex.cap Din.931a2 (5.000 Per Pack)
33
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
34
232561200
Nut-stop Elastic Din.985 (5.000 Per Pack)
35
268000028
Забрало - реверса
36
250000018
Boulon De Pivot*screw-pivot (5.000 Per Pack)
37
232551200
Гайка-стоп
38
268000013
Triangle *triangle
39
271001018
Barre Raccord *rod-connector
40
268000014
Pivot Raccord *rod-pivot
41
250000023
Boulon De Pivot*screw-pivot (5.000 Per Pack)
42
271001039
Втулка
43
234082600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
44
207383060
Screw-hex.cap Din.933a2 S.grip (10.000 Per Pack)
45
250000018
Boulon De Pivot*screw-pivot (5.000 Per Pack)
46
232551200
Гайка-стоп
47
271001328
Пружина
48
268000023
Guide Manette *handle Guide (gts Pro )
49
204000081
Rivet-pop 3/16 *rivet-pop 3/16 (gts Pro ) (10.000 Per Pack)
7a
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
14a
268000018
Embout Grand *end Piece
14b
268000019
Embout Petit *end Piece
