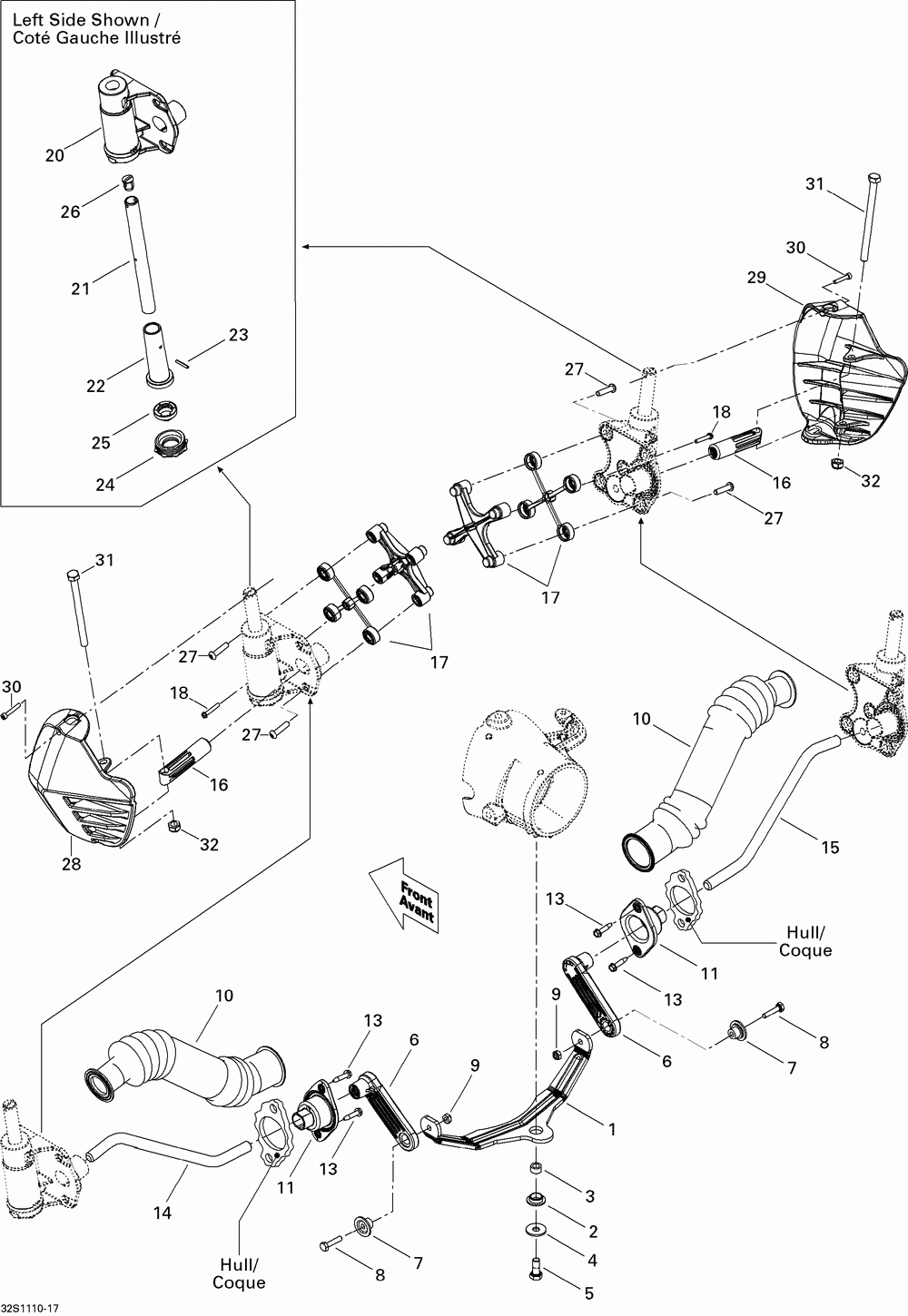

Связь рулевого управления

Sea-Doo (Bombardier) RXP-X 255 & RS (1503 HO)
Sea-Doo (Bombardier)
#oem кодцена
1
277000979
Bras En ""u"" *lever ""u""
2
271000321
Douil.venturi*bushing-venturi (5.000 Per Pack)
3
277000980
Втулка
4
234082600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
5
207382060
Screw-hex.cap Din.933a2 S.grip (10.000 Per Pack)
6
265000013
Рычаг
7
293900042
Douille Epaul. *bushing-flange
8
207162560
Screw-hex.cap Din.933a2 (5.000 Per Pack)
9
232561200
Nut-stop Elastic Din.985 (5.000 Per Pack)
10
277001123
Tube Etanche*seal Tube
11
277001164
Passe Tige *grommet-rod
13
211000023
Screw-plastite Hex.wr.hd.unsl (5.000 Per Pack)
14
277001116
Tige *rod
15
277001116
Tige *rod
16
265000014
Raccord *adaptor
17
277001177
Plaque Supp.*support Plate
18
241142560
Screw-pt.hex.flange K40 X 25 (5.000 Per Pack)
20
265000039
Support Gauche *lh.support
20
265000040
Support Droit *rh.support
21
277001091
Tige-pivot *pivot-rod
22
265000048
Втулка
23
250400014
Spring-pin Iso.8752 M3 X 20 (5.000 Per Pack)
24
265000008
Couver.ass.*cover Ass Y
25
277000985
Компенсационное кольцо
26
277001185
Ajout *insert (25.000 Per Pack)
27
250000328
Screw-torx Button Head M6 X 25 S.grip (4.000 Per Pack)
28
277001486
Derive Gauche *lh.rudder
29
277001487
Derive Droite *rh.rudder
30
205042560
Screw-socket Hd.din.912a2 (5.000 Per Pack)
31
250000077
Screw-hex.cap M8 X 110 (5.000 Per Pack)
32
232581200
Nut-stop Elastic Din.985 (5.000 Per Pack)
