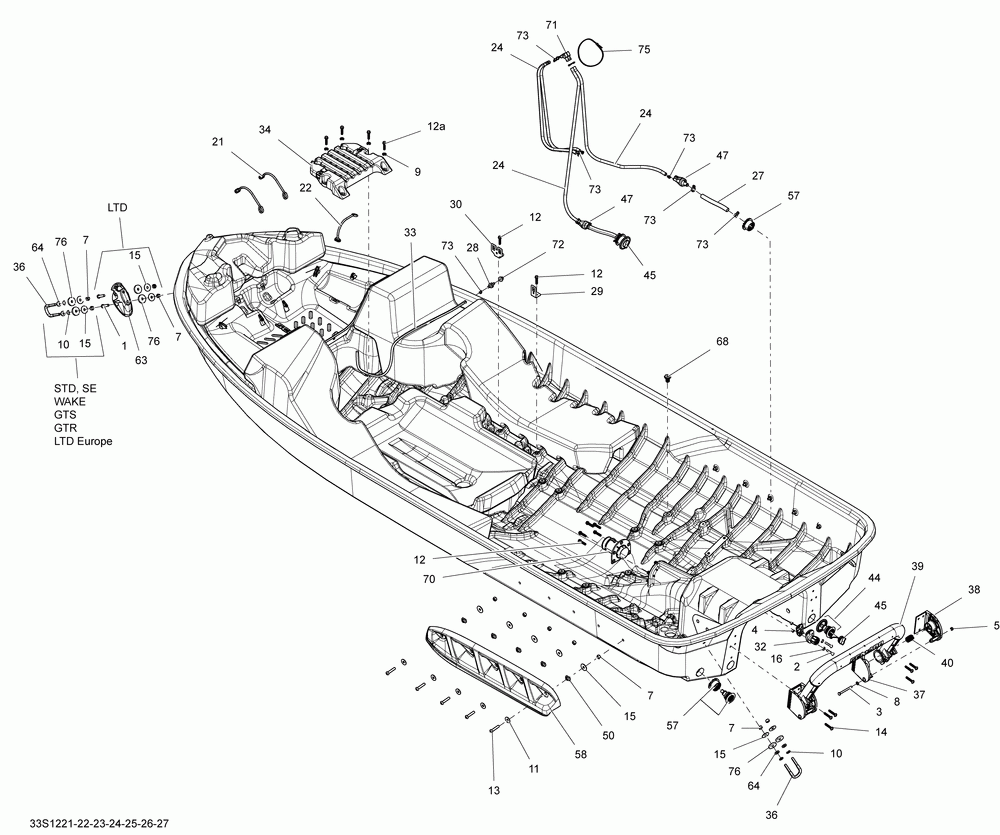

Корпус

Sea-Doo (Bombardier) GTS 130 & Rental 99 (43CA, 43CB, 25CB)
Sea-Doo (Bombardier)
#oem кодцена
2
207063060
Screw-hex.cap Din.931a2 (5.000 Per Pack)
4
232561200
Nut-stop Elastic Din.985 (5.000 Per Pack)
7
232581200
Nut-stop Elastic Din.985 (5.000 Per Pack)
9
234080600
Washer-flat Din.433a2 (5.000 Per Pack)
10
234081100
Washer-flat Din.125a (5.000 Per Pack)
11
234082600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
12
243162560
Screw-plastite Hex.wr.hd.unsl (5.000 Per Pack)
13
250000452
Torx-truss M/s M8 X 40 Stlss
15
250200011
Washer-flat Stlss. M8 (5.000 Per Pack)
16
250200114
Sealing Washer 1/4
21
269500408
Sangle *strap
24
415080700
Boyau Polyure *hose*polyurethane (3.000 Per Pack)
27
275000008
Boyau 12mm. *hose-12mm. (2.000 Per Pack)
28
275500499
Клапан
29
275500743
Pince Courroie *clip-strap 90
30
275500798
Pince Courroie *clip-strap 90
32
277001881
Adap. Cable *cable Adap. As
33
275500446
Boyau 6mm. *hose-6mm. (3.000 Per Pack)
34
278002866
Base Ass E *base Ass Y
36
292000933
Bride En U *u-clamp
44
292001315
Gou./dra. Ass. *neck/drain Ass
45
292001352
Bouchon Ass. *plug Assy
47
292001310
Purge Ass. *bailer Ass Y
50
292001349
Втулка
57
292001371
Втулка
58
292001513
Stabilisateur G* Sponson Lh
58
292001514
Stabilisateur D*sponson Rh
64
293050001
Rondelle Plate *flat Washer (5.000 Per Pack)
68
293450290
Ajout M14/m8 *m14/m8 Insert
70
293450304
Passe Coque *hull Insert
71
293710117
Фитинг 90 град
72
293720029
Passe-fils *grommet (5.000 Per Pack)
73
293750001
Tie Rap 94mm *tie-rap 94mm (50.000 Per Pack)
75
293750008
Tie Rap 368mm *tie-rap 368mm (10.000 Per Pack)
76
293830037
Rondelle Caout.*washer-rubber (5.000 Per Pack)
12a
243163060
Screw-plastite Hex.wr.hd.unsl (5.000 Per Pack)
