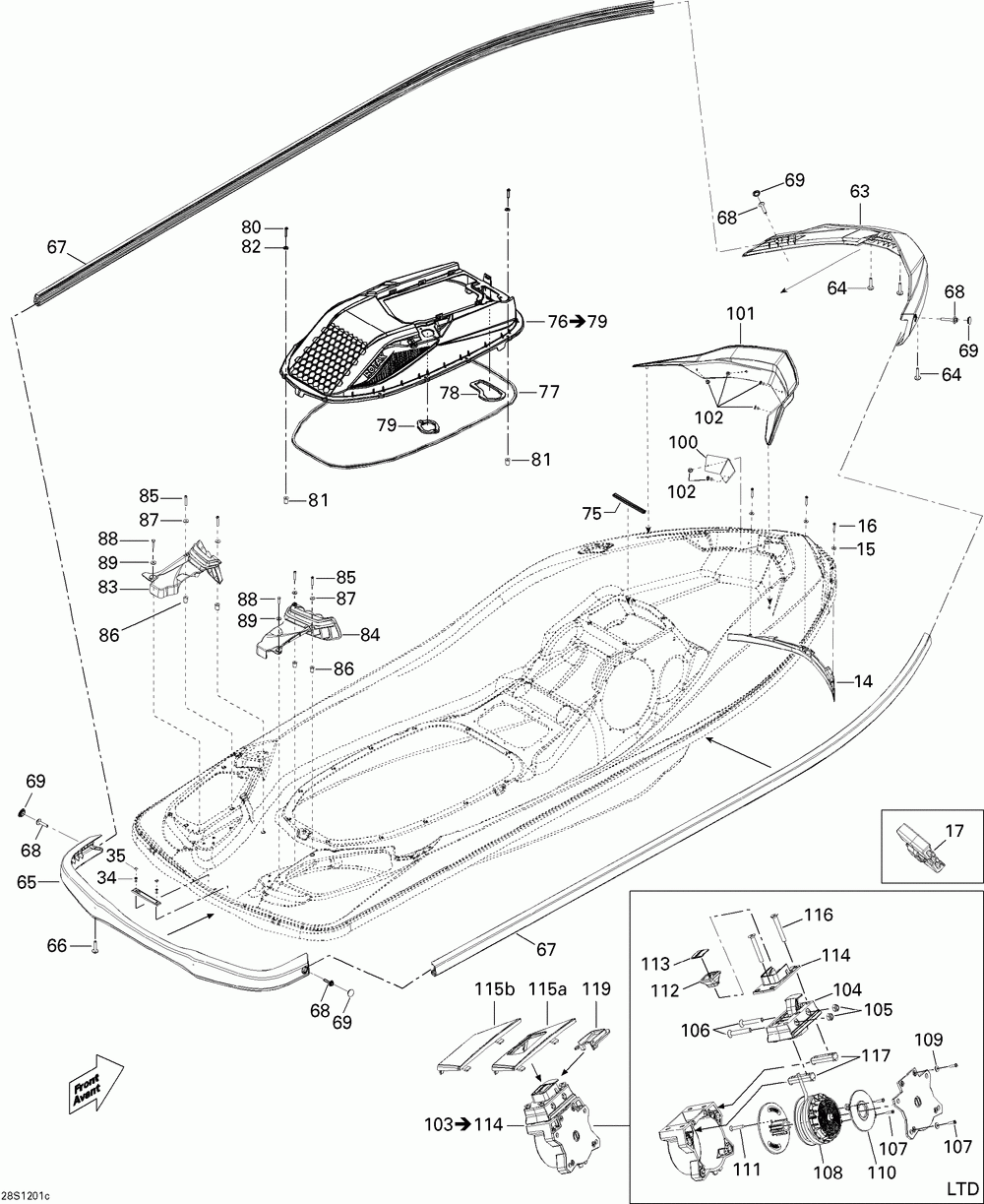

Корпус,задняя часть 3

Sea-Doo (Bombardier) GTX LTD iS 260 (18CS)
Sea-Doo (Bombardier)
#oem кодцена
14
291002818
Nez Carrosserie*deck Nose
15
234042600
Washer-flat Din.9021b-a2 (5.000 Per Pack)
16
241142560
Screw-pt.hex.flange K40 X 25 (5.000 Per Pack)
17
293750025
Ancrage Tie Rap*mount-tie Rap (5.000 Per Pack)
34
293150016
Rivet-pop 1/8 *rivet-pop 1/8 (50.000 Per Pack)
35
293000014
Capuchon Press.*cap-snap Black (50.000 Per Pack)
63
291003836
Pare Chocs *front Bumper
64
250000399
Hexagone Cap Screw M6.8 (2.000 Per Pack)
65
291002592
Pare-chocs Arr*rear Bumper
66
250000399
Hexagone Cap Screw M6.8 (2.000 Per Pack)
67
291003872
Бампер
68
250000399
Hexagone Cap Screw M6.8 (2.000 Per Pack)
69
291002744
Крышка
75
271000110
Moul.protect. *trim-protect.
76
291002763
Extension Carro*deck Extension (includes 76 To 79 )
77
293250185
Сальник
78
293250205
Уплотнение
79
293250209
Уплотнение
80
205463560
Screw-socket Bn.hd.iso.7380a2 (5.000 Per Pack)
81
250100150
Well-nut M6 X 1.0mm (10.000 Per Pack)
82
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
83
291002658
Grille Arr. G *lh Rear Gril
84
291002698
Grille Arr. D *rh Rear Gril
85
205463560
Screw-socket Bn.hd.iso.7380a2 (5.000 Per Pack)
86
250100150
Well-nut M6 X 1.0mm (10.000 Per Pack)
87
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
88
207162560
Screw-hex.cap Din.933a2 (5.000 Per Pack)
89
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
100
293250231
Tampon *gasket
101
291003081
Дефлектор
102
293150123
Rivet-pop 3/16 *rivet-pop 3/16 (5.000 Per Pack)
103
291003022
Corde Assembl *rope Assy (includes 103 To 114 )
104
291003023
Taquet Coinceur*jam Cleat Syst
105
232561200
Nut-stop Elastic Din.985 (5.000 Per Pack)
106
205364060
Screw-socket Hd.ctsk.din.7991-a2 (10.000 Per Pack)
107
241731260
Screw-pt.ov.hd.ph.ka30 X 12 (10.000 Per Pack)
108
291002733
Corde 3/16"" *3/16"" Rope (3.000 Per Pack)
109
234032600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
110
291002762
Couvercle Inter*inside Cover
111
204100049
Screw-tapp.ctsk.fl.hd.ph.#8 X 1"" (10.000 Per Pack)
112
291002726
Bouton *button
113
291002754
Capuchon-bouton*button Cap
114
291002729
Guide De Corde *rope Guide
116
205364560
Screw-socket Hd.ctsk.din.7991-a2 (2.000 Per Pack)
117
291002755
Logement Ecrous*double Cage
119
291002727
Sous-levier *under Cam
115a
291002724
Cadre Enrouleur*front Rewind C
