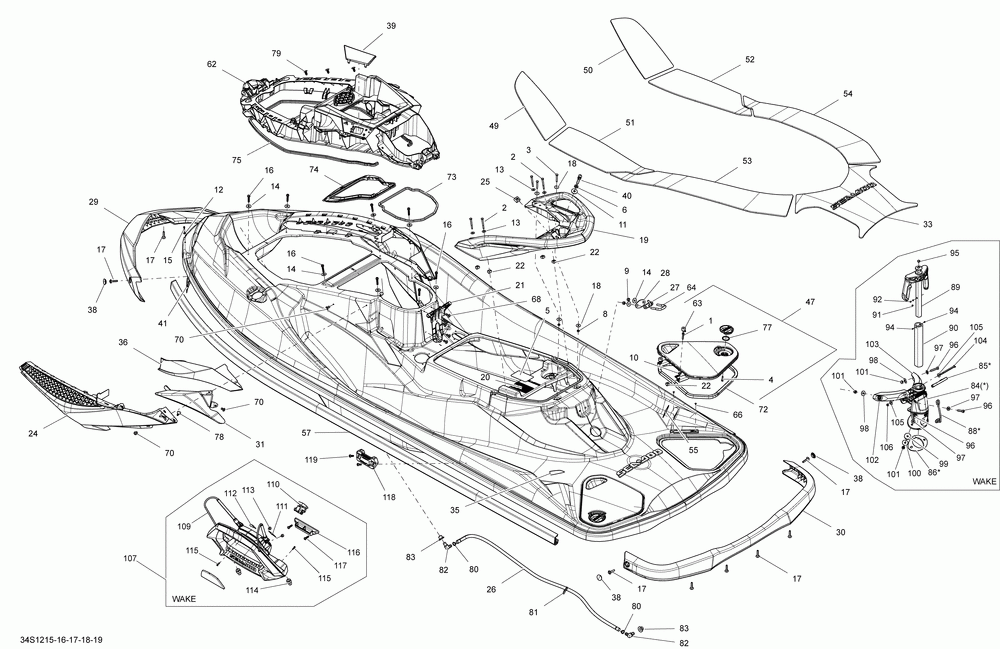

Кузов Оригинальные запчасти для гидроциклов Sea-Doo (Bombardier) WAKE PRO 215 (26CA, 26CB) (2012)

Кузов

Sea-Doo (Bombardier) WAKE PRO 215 (26CA, 26CB)

oem код

название

цена

205063060

Screw-socket Hd.din.912a2 (5.000 Per Pack)

207065560

Screw-hex.cap Din.931a2 (5.000 Per Pack)

207164060

Screw-hex.cap Din.933a2 (5.000 Per Pack)

211000023

Screw-plastite Hex.wr.hd.unsl (5.000 Per Pack)

219903184

Attention *caution

232100600

Nut-jam Hexagonal Din.439b-a2 (5.000 Per Pack)

232561200

Nut-stop Elastic Din.985 (5.000 Per Pack)

232581200

Nut-stop Elastic Din.985 (5.000 Per Pack)

233161600

Nut-flange Hexagonal Din.6923-a2 (10.000 Per Pack)

234002600

Washer-flat Din.9021b-a2 (5.000 Per Pack)

234042600

Washer-flat Din.9021b-a2 (5.000 Per Pack)

234062600

Washer-flat Din.9021b-a2 (10.000 Per Pack)

234082600

Washer-flat Din.9021b-a2 (10.000 Per Pack)

241142560

Screw-pt.hex.flange K40 X 25 (5.000 Per Pack)

243163560

Screw-plastite Hex.wr.hd.unsl (5.000 Per Pack)

250000399

Hexagone Cap Screw M6.8 (2.000 Per Pack)

250200022

Washer-flat M6.6 X 22 (10.000 Per Pack)

269002129

Poignee Arriere*grab Handle

291002947

Pont Inferieur *bridge-lower

269002162

Boitier *case

269501166

Logement Ecrou *housing-nut

291002939

Enjo Av Dr Ass *fr Rh Cosm Ass

291002943

Enjo Av Ga Ass *fr Lh Cosm Ass

271001732

Logement Ecrou *housing-nut

275000008

Boyau 12mm. *hose-12mm. (2.000 Per Pack)

291003836

Pare Chocs *front Bumper

291002592

Pare-chocs Arr*rear Bumper

291003192

Tampon Sieg Dr *rh Seat Pad

291003193

Tampon Sieg Ga *lh Seat Pad

291002625

Tapis *carpet

291002626

Antiderapant *anti-skid Pad

291002920

Enjoliveur *left Cap

291002922

Enjoliveur *right Cap

291002744

Крышка

291002756

Крышка

291002784

Ergot De Siege *stud-seat

291002818

Nez Carrosserie*deck Nose

291003686

Couverc Acces *access Cover

291003687

Couverc Acces *access Cover

Tapis *carpet

Tapis *carpet

Tapis *carpet

Tapis *carpet

Tapis *carpet

Tapis *carpet

Antiderapant-dr*anti-skid-rh

291003872

Бампер

291003680

Module Avant *front Module

291003688

Резиновый буфер

293000014

Capuchon Press.*cap-snap Black (50.000 Per Pack)

293150123

Rivet-pop 3/16 *rivet-pop 3/16 (5.000 Per Pack)

293150123

Rivet-pop 3/16 *rivet-pop 3/16 (5.000 Per Pack)

293200133

Неопреновый сальник

293250200

Joint Neoprene *neoprene Seal

293250220

Уплотнение

296000342

Joint Etanche *gasket (3.000 Per Pack)

293300121

Кольцо

293730006

Dard Noir *dart-black (5.000 Per Pack)

293730010

Dard Noir *dart-black (10.000 Per Pack)

293750001

Tie Rap 94mm *tie-rap 94mm (50.000 Per Pack)

414115200

Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)

Фиттинг

Люверс

Суппорт

Courroie *strap

Joint Etanche *seal

Sangle *strap

Ручка

Poteau Alu. *alu. Post

269501651

Ressort Bille *spring-ball

293350062

Bille 1/4"" *ball 1/4""

293150167

Type ""u"" Metallic Drive Screw

291001519

Bouchon Parecho*plug-bumper (6.000 Per Pack)

250000452

Torx-truss M/s M8 X 40 Stlss

293050001

Rondelle Plate *flat Washer (5.000 Per Pack)

234082600

Washer-flat Din.9021b-a2 (10.000 Per Pack)

293830037

Rondelle Caout.*washer-rubber (5.000 Per Pack)

100

250200011

Washer-flat Stlss. M8 (5.000 Per Pack)

101

232581200

Nut-stop Elastic Din.985 (5.000 Per Pack)

102

291002711

Bras Lateral Ga*lateral Arm Lh

103

291002712

Bras Lateral Dr*lateral Arm Rh

104

230060060

Винт

105

234062600

Washer-flat Din.9021b-a2 (10.000 Per Pack)

106

232561200

Nut-stop Elastic Din.985 (5.000 Per Pack)

107

291003101

Support Planche*board Support

109

291002979

Corde Elastique*rope Ass Y

110

291002980

Loquet *latch

111

219903228

Avertissement *warning

112

219903240

Decalque Wp *wp Decal

113

293830005

Butee *rubber Stopper (5.000 Per Pack)

114

293830119

Butte *rubber Buffer

115

250000287

Screw-pt.flange Pan Hdtorx.k40 X 16

116

291002864

Ancrage *anchorage

117

250000466

Screw-plastite Torx Button Hd.m6.3x25

118

291003582

Ancrage *anchorage

119

250000466

Screw-plastite Torx Button Hd.m6.3x25
