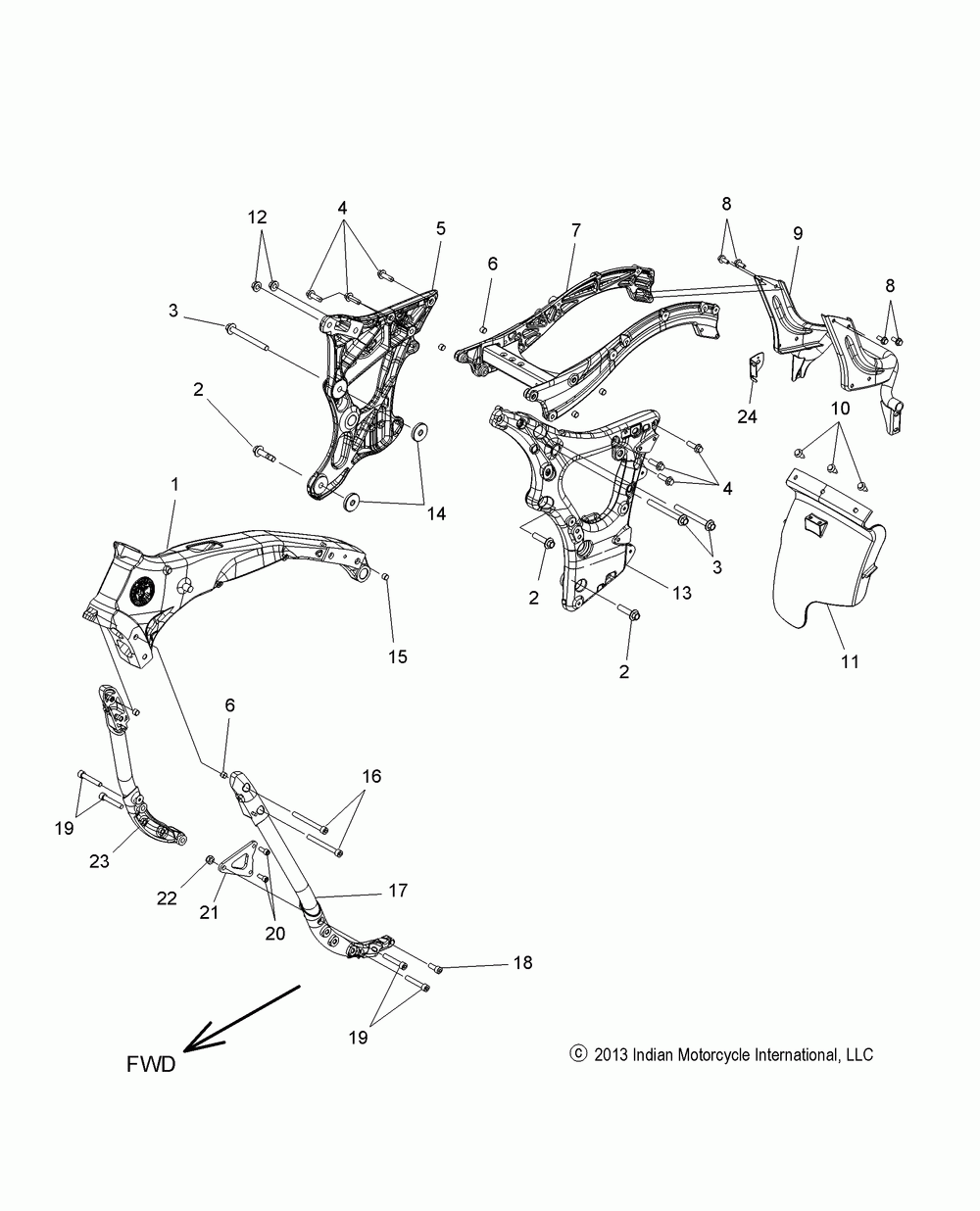

Chassis, frame asm. - n14ccc / ccv / tca all options

Indian N14CCC/CCV/TCA CHIEF CLASSIC/CHIEF VINTAGE/CHIEFTAIN ALL OPTIONS
Indian
#oem кодцена
1
5138127-626
Mainframe-frt, Tour, Mach, Jt Blk
1
5138126-626
Mainframe-frt, Crsr, Mach, Jt Blk
2
7519845
Scr-hxfl-m12x1.75x50 10.9 Zpb
3
7519794
Scr-hxfl-m12x1.75x120
4
7518334
Scr-m10x1.50x35 Hx/fl-y/d
5
5138129-329
Cast-frame, Mid, Rh, E-coat
6
7663008
Втулка
7
1019138
Weld-subframe, Rear
8
7517838
Scr-hexflghd, M8 X 20, 0600086
9
1019383-329
Weld-frame, Rear, Lower, Ecoat
10
7661855
Клипса 315-.325x.787
11
5439852
Shield-debris
12
7547686
Nut-hxfl-m12x1.75, Cl10, Zb
13
5138128-329
Cast-frame, Mid, Lh, E-coat
14
5138436
Spacer-frame
15
7662129
Dowel-hollow, M12
16
7519793
Scr-shcs-m10x1.5x100
17
1018969-626
Asm-tube, Frame, Lh, Jt Blk
18
7519890
Scr-sh-m10x1.5x25 8.8 Zpb
19
7519843
Scr-sh-m10x1.5x60 8.8 Zpb
20
7517410
Screw, Sochd, M8x20
21
5257184
Brkt-engine
22
7547658
Nut-hex-m10x1.5 8 Zb3 Nyl
23
1018970-626
Asm-tube, Frame, Rh, Jt Blk
24
5258057
Brkt-antenna
