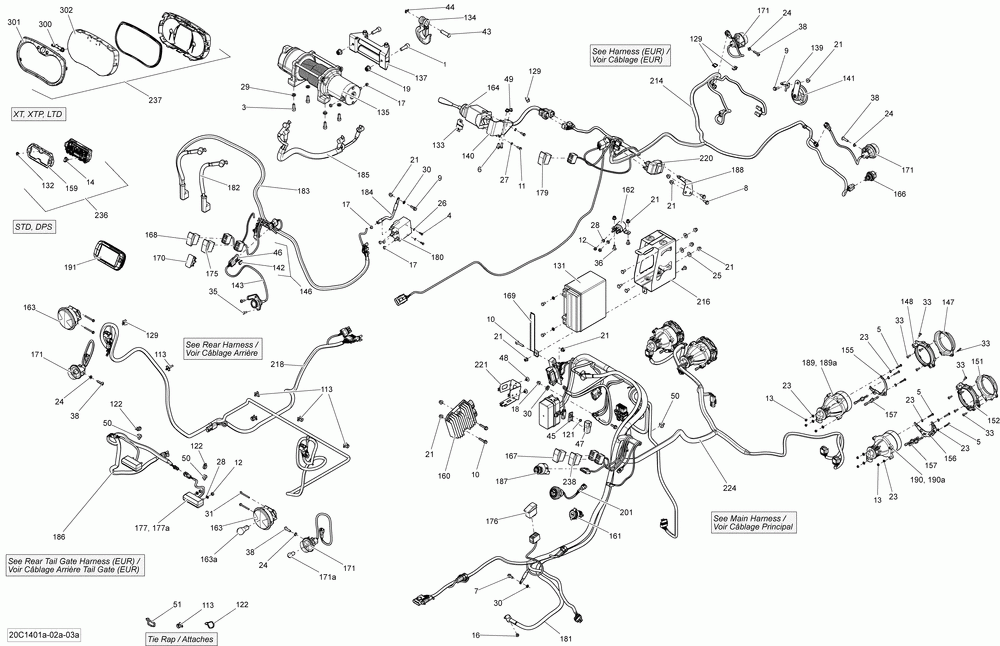

10- electrical system all models

Cam-am Commander 800 STD, DPS, XT
Cam-am
#oem кодцена
1
205003044
Screw-socket Hd.din.912 (2.000 Per Pack)
3
205082044
Screw-socket Hd.din.912 (10.000 Per Pack)
4
207141044
Screw-hex.cap Din.933 (10.000 Per Pack)
5
207142544
Screw-hex.cap Din.933 (4.000 Per Pack)
6
207361644
Screw-hex.cap Din.933 S.grip (25.000 Per Pack)
7
207561644
Screw-hex.flange Din.6921 S.grip (25.000 Per Pack)
8
207661644
Screw-hex.flange Din.6921 (25.000 Per Pack)
9
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
10
207663034
Screw-hex.flange Din.6921 (5.000 Per Pack)
11
210251680
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
12
232061600
Nut-hexagonal Din.934a2 (5.000 Per Pack)
13
232541414
Гайка-стоп
14
715900265
Bouton *button
16
232561434
Гайка с тефлоном
17
232561434
Гайка с тефлоном
18
233061414
Nut-flange Hexagonal Din.6927 (10.000 Per Pack)
19
233201414
Гайка Din.6926 (отпускается по 10 шт)
21
233261414
Гайка Din.6926 (отпускается по 10 шт)
23
234051410
Шайба Din.125a (отпускается по 10 шт)
24
234061410
Washer-flat M6 Din.125a (10.000 Per Pack)
25
234062410
Washer-flat Din.9021b (10.000 Per Pack)
26
234141601
Washer-lock Helical Din.127b-a2 (5.000 Per Pack)
27
234151401
Washer-lock Helical Din.127b (10.000 Per Pack)
28
234161601
Washer-lock Helical Din.127b-a2 (5.000 Per Pack)
29
234181401
Washer-lock Din.127b (50.000 Per Pack)
30
234461608
Washer-lock Serrated Din.6798a-a2 (5.000 Per Pack)
31
241154540
Ind.hex.washer Head Pt.screw K50 X 45 (4.000 Per Pack)
33
250000084
Phil-truss Pt Gm6047m K40 X 16 (5.000 Per Pack)
35
250000146
Torx-screw Truss Head Pt.k50x16 (5.000 Per Pack)
36
250000223
Torx-truss M/s Gm6047m Nylon Patch (5.000 Per Pack)
38
250000284
Torx-truss M/s M6 X 25 Gm6047m
43
250400021
Палец
44
250400022
Goupille Fendue*cotter Pin (25.000 Per Pack)
45
270000141
Clip *clip (5.000 Per Pack)
46
278000281
Bloc 3 Circ.fem*housing-tab (5.000 Per Pack)
47
278002704
Capuchon *connect-cap
48
293150103
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
49
293450274
Вставка
50
293730040
Шуруп
51
293750008
Tie Rap 368mm *tie-rap 368mm (10.000 Per Pack)
113
293750009
Tie Rap 173mm *tie-rap 173mm (5.000 Per Pack)
121
390402400
Rivet-pop 3/16 *rivet-pop 3/16 (50.000 Per Pack)
122
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
129
414227300
Clip - Spring (10.000 Per Pack)
131
410301203
Batterie Ytx20l*battery18amps(wet Gel)
132
704901270
Наклейка
133
704902614
Etiq. Clignotan*label Flasher
134
705002329
Крюк
135
705003944
Лебедка
137
715001119
Guide *cable Guide
139
709200284
Суппорт
140
709400810
Суппорт
141
710000983
Клаксон
142
710000992
Зажим
143
710001023
Connec. Treuil *winch Connec.
146
710001059
Connec Ass E *connector Ass
147
710001081
Logement Avbd *housing Flrh
147
710001083
Logement Avbg *housing Fllh
148
710001082
Logement Arbd *housing Rlrh
148
710001084
Logement Arbg *housing Rlgh
151
710001085
Logement Avhd *housing Fhrh
151
710001087
Logement Avhg *housing Fhgh
152
710001086
Logement Arhd *housing Rhgh
152
710001088
Logement Arhg *housing Rhgh
155
710001094
Sup Lumire Bdr*light Sup Lrh
155
710001037
Sup Lumire Bga*light Sup Llh
156
710001115
Support Hd *light Sup Hr
156
710001036
Sup Lumire Hg *light Sup Hl
157
710001147
Vis Ajust. *setting Screw
159
710001183
Anneau Cadran *trim Ring
160
710001191
Регулятор
161
710001248
Дополнительная розетка DC
162
710001364
Solenoide Dem. *relay-starter
163
710001645
Feu Arriere *tail Light (includes 163a )
164
710001721
Bras Clignotant*turn Signal Le
166
710001726
Lumire De Jour*day Light
167
710001737
Датчик
168
710001781
Inter Dps *inter Dps
169
710001916
Attache Batteri*battery Holder
170
710001999
Capuchon *plug (dps )
171
710002047
Clignotant *flasher
175
710002052
Interruptteur *switch
176
710002053
Interupteur *switch
177
710002055
Lumiere Immatri*licence Light (includes 177a )
179
710001725
Inter Hi Low *inter Hi Low (except Europe )
179
710002076
Interrupteur *switch (europe )
180
710003922
Solenoide *solenoid
181
710002146
Cable Positif *cable-positive
182
710002148
Cable Positif *cable-positive (dps, Std )
183
710002159
Cable Positif *cable-positive (xt )
184
710002214
Cable Negatif *negative Cable
185
710002216
Cables Treuil *winch Cables
186
710002220
Cablage Arrire*rear Harness
187
710002327
Inter Allumage *ignition
188
710002408
Суппорт
189
710002524
Phare Basse *low Beam ( Includes 189a)
190
710002525
Phare Haute *high Beam ( Includes 190a)
201
710002594
Bouton Demarrag* Start Bouton
214
710003008
Cablage Ass. *harness-assy.
216
710003129
Support Batteri*battery Suppor
218
710003219
Cablage Arrire*rear Harness (except Europe )
218
710003220
Cablage Arrire*rear Harness (europe )
220
710003239
Unit Cligno. *flasher Unit
221
710003335
Support Fusible*fuse Holder
224
710003342
Cablage Ass. *harness-assy.
236
710003851
Indicateur *speedometer
237
710003532
Indicateur *speedometer
238
710003541
Inter Pps Sport*switch Sport
300
415129355
Кнопки спидометра
301
415129348
Защитное кольцо
302
415129349
Стекло
163a
520000758
Ampoule *bulb (10.000 Per Pack)
177a
219800128
Ampoule *bulb
189a
415129249
Ampoule Halogen*bulb-hal.hb3
190a
415129249
Ampoule Halogen*bulb-hal.hb3
