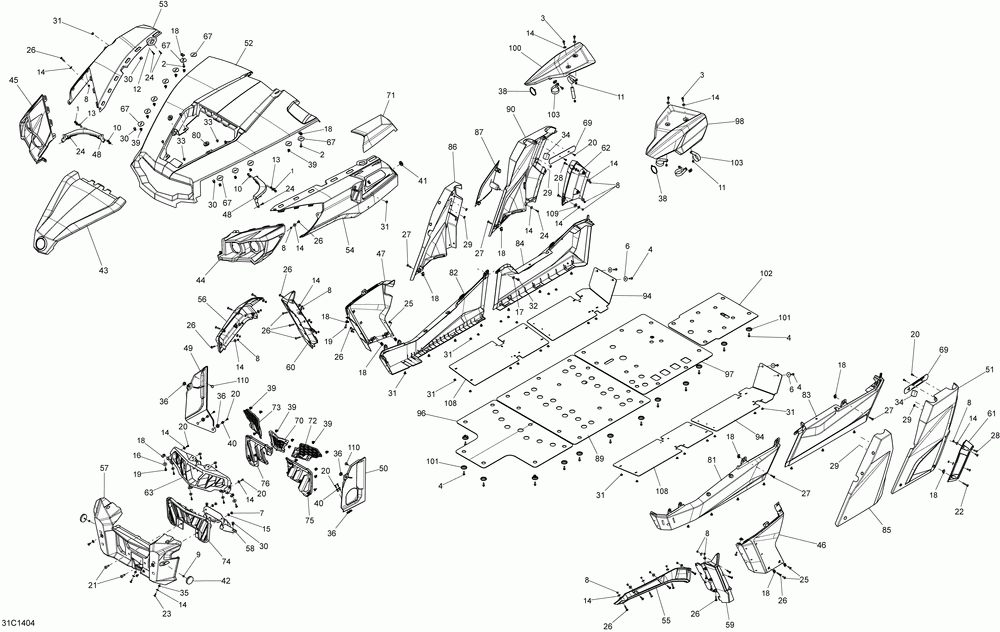

09- body and accessories _31c1404

Cam-am Commander MAX 1000_DPS, XT
Cam-am
#oem кодцена
1
207661644
Screw-hex.flange Din.6921 (25.000 Per Pack)
2
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
3
207662084
Screw-hex.flange Din.6921 (10.000 Per Pack)
4
210262080
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
6
224081301
Washer-flat (25.000 Per Pack)
7
232081414
Nut-hexagonal Din.934 (model-dps ) (10.000 Per Pack)
8
232561434
Гайка с тефлоном
9
233251434
Nut-flange Elastic Din.6926 (4.000 Per Pack)
10
233261414
Гайка Din.6926 (отпускается по 10 шт)
11
233261494
Гайка Din.6926 (отпускается по 10 шт)
12
234051410
Шайба Din.125a (отпускается по 10 шт)
13
234061600
Washer-flat Din.125a-a2 (25.000 Per Pack)
14
234062670
Washer-flat Din.9021 A2 Black Oxide (10.000 Per Pack)
15
234081410
Washer-flat Din.125a (model-dps ) (10.000 Per Pack)
16
234082410
Washer-flat Din.9021b (10.000 Per Pack)
17
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
18
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
19
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
20
250000146
Torx-screw Truss Head Pt.k50x16 (5.000 Per Pack)
21
250000197
Torx Truss M/s M8 X 30 (model-dps ) (6.000 Per Pack)
22
250000215
Винт Torx
23
250000261
Torx-truss M/s Gm6047m M6 X 16 (12.000 Per Pack)
24
250000297
Винт
25
250000350
Torx-truss M/s Stlss Nylon Patch (5.000 Per Pack)
26
250000371
Torx-truss M/s M6 X 30 Stlss
27
250000398
Torx-truss M/s Stlss Nylon Patch (4.000 Per Pack)
28
250000488
Torx-truss M/s Stlss (model-xt ) (2.000 Per Pack)
29
705005156
Washer-oblong
30
293150089
Plastique Rivet Tuflok (25.000 Per Pack)
31
293150104
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
32
250200025
Rondelle M5 *washer M5 (10.000 Per Pack)
33
293150104
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
34
293250318
Anneau Etanche *seal-tray
35
293450274
Вставка
36
293720053
Passe-fils *grommet (10.000 Per Pack)
38
293750008
Tie Rap 368mm *tie-rap 368mm (10.000 Per Pack)
39
517302785
Pince *clip (10.000 Per Pack)
40
517303439
Bouton *knob (6.000 Per Pack)
41
517303756
Втулка
42
705002409
Reeflecteur Reflector
43
705007072
Capot *hood (model-yellow )
43
705007075
Capot *hood (model-camo )
43
705007076
Capot *hood (model-magnesium )
44
705002885
Facia Av Ga *front Facia Lh
45
705002886
Facia Av Dr *front Facia Rh
46
705002887
Panneau Gauche *lh.panel (model-dps )
46
705006378
Panneau Gauche *lh. Panel (model-camo )
46
705006382
Panneau Gauche *lh. Panel (model-magnesium )
47
705002888
Panneau Droit *rh. Panel (model-dps )
47
705006379
Panneau Droit *rh. Panel (model-camo )
47
705006383
Panneau Droit *rh. Panel (model-magnesium )
48
705002891
Кронштейн крепления переднего крыла
49
705002894
Deflecteur Dr *deflector Rh
50
705002895
Deflecteur Ga *deflector Lh (model-dps )
50
705005113
Deflecteur Ga *deflector Lh (model-xt )
51
705006112
Panneau Lat. *side Panel (model-dps )
51
705006122
Panneau Lat. *side Panel (model-camo )
51
705006126
Panneau Lat. *side Panel (model-magnesium )
52
705002915
Capot *hood (model-yellow )
52
705004380
Capot *hood (model-camo )
52
705005289
Capot *hood (model-magnesium )
53
705006755
Aile Avant *front Fender (model-dps )
53
705006769
Aile Avant *front Fender (model-camo )
53
705006773
Aile Avant *front Fender (model-magnesium )
54
705006754
Aile Avant *front Fender (model-dps )
54
705006768
Aile Avant *front Fender (model-camo )
54
705006772
Aile Avant *front Fender (model-magnesium )
55
705003058
Garde-boue *mudguard (model-xt )
56
705003059
Garde-boue *mudguard (model-xt )
57
705003306
Передняя панель
58
705003399
Deflecteur Bas *bottom Deflect (model-dps )
59
705003601
Garde-boue *mudguard (model-xt )
60
705003602
Garde-boue *mudguard (model-xt )
61
705003605
Garde-boue *mudguard (model-xt )
62
705003606
Garde-boue *mudguard (model-xt )
63
705003629
Facia Superieur*upper Facia
67
705003841
Plaque D Appuie*support
69
705004261
Plaque Soutien *support
70
705004336
Grille Central *facia Protect.
71
705004337
Couv Entree Cvt*cvt Inlet Cove (model-yellow )
71
705004382
Couv Entree Cvt*cvt Inlet Cove (model-camo )
71
705005287
Couv Entree Cvt*cvt Inlet Cove (model-magnesium )
72
705004350
Grille Lateral *facia Protect.
73
705004351
Grille Lat. *facia Protect.
74
705004755
Grille Facia *protect Facia
75
705004819
Grille Facia *protect Facia
76
705004820
Grille Facia *protect Facia
80
705005156
Washer-oblong
81
705005423
Panneau Bas *lower Panel (model-dps )
81
705007035
Panneau Bas *lower Panel (model-xt )
82
705005424
Panneau Bas *lower Panel (model-dps )
82
705007036
Panneau Bas *lower Panel (model-xt )
83
705005425
Panneau Bas *lower Panel
84
705005426
Panneau Bas *lower Panel
85
705005427
Panneau De Cage*cage Panel (model-yellow )
85
705007022
Panneau De Cage*cage Panel (model-camo )
85
705007023
Panneau De Cage*cage Panel (model-magnesium )
86
705005428
Panneau De Cage*cage Panel (model-yellow )
86
705007024
Panneau De Cage*cage Panel (model-camo )
86
705007025
Panneau De Cage*cage Panel (model-magnesium )
87
705005437
Couvercle *panel Cover (model-yellow )
87
705007027
Couvercle *panel Cover (model-camo )
87
705007028
Couvercle *panel Cover (model-magnesium )
89
705005939
Plaque *skid Plate
90
705005948
Panneau Lat. *side Panel (model-dps )
90
705006874
Panneau Lat. *side Panel (model-xt Yellow )
90
705007621
Panneau Lat. *side Panel (model-camo )
90
705007622
Panneau Lat. *side Panel (model-magnesium )
94
705007038
Plaque Protect.*skid Plate
96
705007055
Plaque Protect.*protec Skid
97
705007056
Plaque *skid Plate
98
705007058
Couvercle Cage *gace Cover (model-xt Yellow )
98
705008452
Couvercle Cage *gace Cover (model-camo )
100
705007059
Couvercle Cage *gace Cover (model-xt Yellow )
100
705008453
Couvercle Cage *gace Cover (model-camo )
101
705007171
Чашка
102
705007227
Plaque Protect *skid Plate
103
705005626
Attache *""p"" Clamp
108
705008421
Plaque Protect.*skid Plate
109
250200086
Rondelle Plate *flat Washer (model-xt )
110
708000759
Стопор резиновый
