  6. 09- cab interior _77c1404

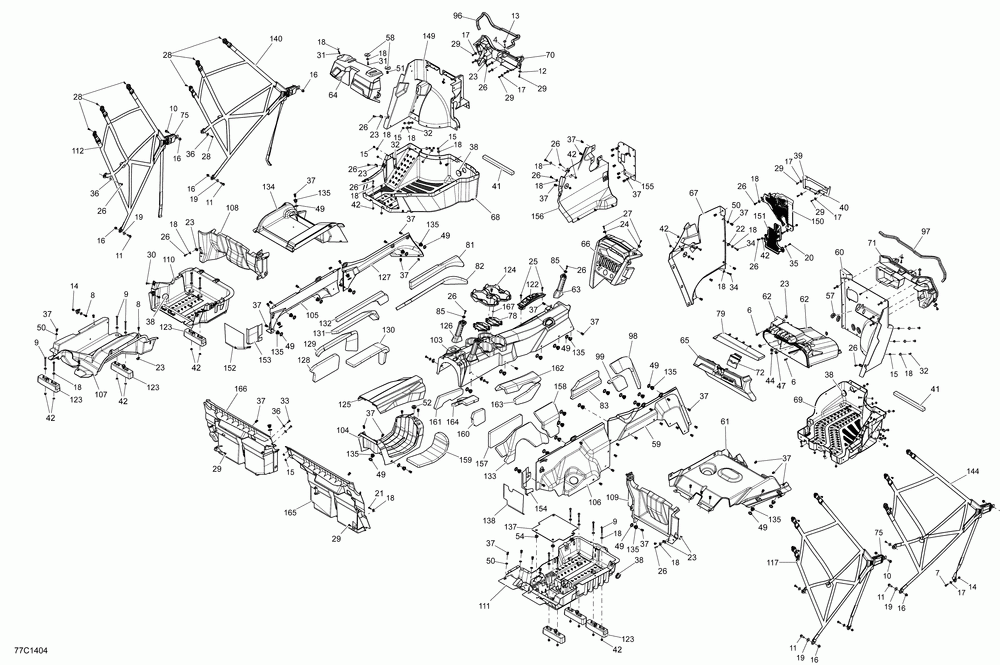

09- cab interior _77c1404

Cam-am Commander MAX 1000_DPS, XT
Cam-am
#oem кодцена
4
207162544
Screw-hex.cap Din.933 (10.000 Per Pack)
6
207662034
Винт
7
207662044
Screw-hex.flange Din.6921 (25.000 Per Pack)
8
207662084
Screw-hex.flange Din.6921 (10.000 Per Pack)
9
207667056
Винт
10
207682044
Screw-hex.flange Din.6921 (10.000 Per Pack)
11
207682534
Screw-hex.flange Din.6921 (10.000 Per Pack)
12
224060201
Flat Washer (10.000 Per Pack)
13
224061201
Washer-flat (10.000 Per Pack)
14
233261414
Гайка Din.6926 (отпускается по 10 шт)
15
233261494
Гайка Din.6926 (отпускается по 10 шт)
16
233281414
Гайка Din.6926 (отпускается по 10 шт)
17
234062410
Washer-flat Din.9021b (10.000 Per Pack)
18
234062670
Washer-flat Din.9021 A2 Black Oxide (10.000 Per Pack)
19
234082410
Washer-flat Din.9021b (10.000 Per Pack)
20
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
21
241152060
Hex.washer Head Pt.screw K50 X 20 (5.000 Per Pack)
22
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
23
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
24
250000079
Extruded Panel Nut M5 X 0.8 (10.000 Per Pack)
25
250000081
Screw-torx Button Head M6 X 25 (2.000 Per Pack)
26
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
27
250000130
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
28
250000145
Torx-truss M/s Gm6047m (10.000 Per Pack)
29
250000146
Torx-screw Truss Head Pt.k50x16 (5.000 Per Pack)
30
250000284
Torx-truss M/s M6 X 25 Gm6047m
31
250000297
Винт
32
250000335
Screw-socket Truss Hd. M6x20
33
250000350
Torx-truss M/s Stlss Nylon Patch (5.000 Per Pack)
34
250000398
Torx-truss M/s Stlss Nylon Patch (4.000 Per Pack)
35
250200025
Rondelle M5 *washer M5 (10.000 Per Pack)
36
250200040
Rondelle Plate *flat Washer (3.000 Per Pack)
37
293150089
Plastique Rivet Tuflok (25.000 Per Pack)
38
293250242
Couvercle Caout*cover-rubber
39
293250252
Joint Sup. *upper Seal
40
293250253
Joint Inf. *bottom Seal
41
293250319
Anneau Etanche *seal-tray
42
293450274
Вставка
44
293830005
Butee *rubber Stopper (5.000 Per Pack)
47
414859400
Bouchon *cap (10.000 Per Pack)
49
503189273
Шайба (отпускается по 25 шт)
50
506151252
Шайба (отпускается по 25 шт)
51
517302785
Pince *clip (10.000 Per Pack)
52
517303756
Втулка
54
705003264
Люверс
57
705003668
Rondelle Oblong*oblong Grommet
58
705003841
Plaque D Appuie*support
59
707900002
Console Lat. *side Dash
60
707900004
Plancher *floor
61
707900006
Dessous Siege *under Cover
62
707900009
Coffre Bagage *storage Bin (model-dps )
62
707900046
Coffre Bagage *storage Bin (model-xt )
63
707900011
Ручка
64
715001250
Tab. De Bord *dashboard
65
707900221
Ens. Coffre *bin Cover Kit
66
715002178
Ens. Tableau *dashbord Kit
67
707900021
Console Lat. *side Dash
68
707900022
Plancher *floor
69
707900023
Plancher *floor
70
707900029
Support Planche*floor Support
71
707900030
Support Planche*floor Support
72
707900031
Loquet *latch
75
707900035
Boucle *buckle
78
707900036
Reteneur Verre *cup Retainer
79
707900062
Enjoliveur *glove Box Trim
81
707900043
Поролон
82
707900044
Поролон
83
707900045
Поролон
85
707900048
Connecteur Tube*tube Connector
96
293200093
Anneau Neoprene*neoprene Seal (8.000 Per Pack)
97
293200093
Anneau Neoprene*neoprene Seal (8.000 Per Pack)
98
707900055
Поролон
99
707900056
Поролон
103
715002193
Ens. Console *console Kit
104
707900075
Console *dash
105
707900079
Console Lat. *rear Lh Consol
106
707900080
Console Lat. *rear Rh Consol
107
707900081
Plaque *under Cover
108
707900082
Couvercle Siege*seat Cover
109
707900083
Couvercle Siege*seat Cover
110
707900084
Plancher *floor
111
707900231
Plancher *floor
112
707900086
Filet *safety Net
117
707900087
Filet *safety Net
122
707900088
Индикатор
123
707900099
Plaque *support
124
707900100
Support Verre *cup Retainer
125
707900229
Ens. Console *console Kit
126
707900103
Ручка
127
707900001
Console Lat. *side Dash
128
707900116
Поролон
129
707900117
Поролон
130
707900118
Поролон
131
707900119
Поролон
132
707900120
Поролон
133
707900121
Поролон
134
707900130
Plaque Siege *under Seat Cov
135
707900133
Ajout *holder
137
707900163
Couvercle *battery Cover
138
707900167
Теплозащита
140
707900171
Filet *safety Net
144
707900172
Filet *safety Net
149
707900175
Plancher *floor
150
707900178
Решетка
151
707900180
Grille *grid
152
707900182
Теплозащита
153
707900183
Теплозащита
154
707900184
Теплозащита
155
707900192
Дефлектор
156
707900193
Console Lat. *side Dash
157
707900205
Поролон
158
707900206
Поролон
159
707900295
Поролон
160
707900209
Поролон
161
707900210
Поролон
162
707900211
Поролон
163
707900212
Поролон
164
707900213
Поролон
165
707900219
Defl Arr Dr *rh Rear Defl.
166
707900220
Defl Arr. Ga *lh Rear Defl
167
732610072
Ecrou Pression *push Nut (10.000 Per Pack)
