10- engine harness and electronic module _51r1430
10- engine harness and electronic module _51r1430

10- engine harness and electronic module _51r1430

Cam-am Commander MAX 1000_DPS, XT

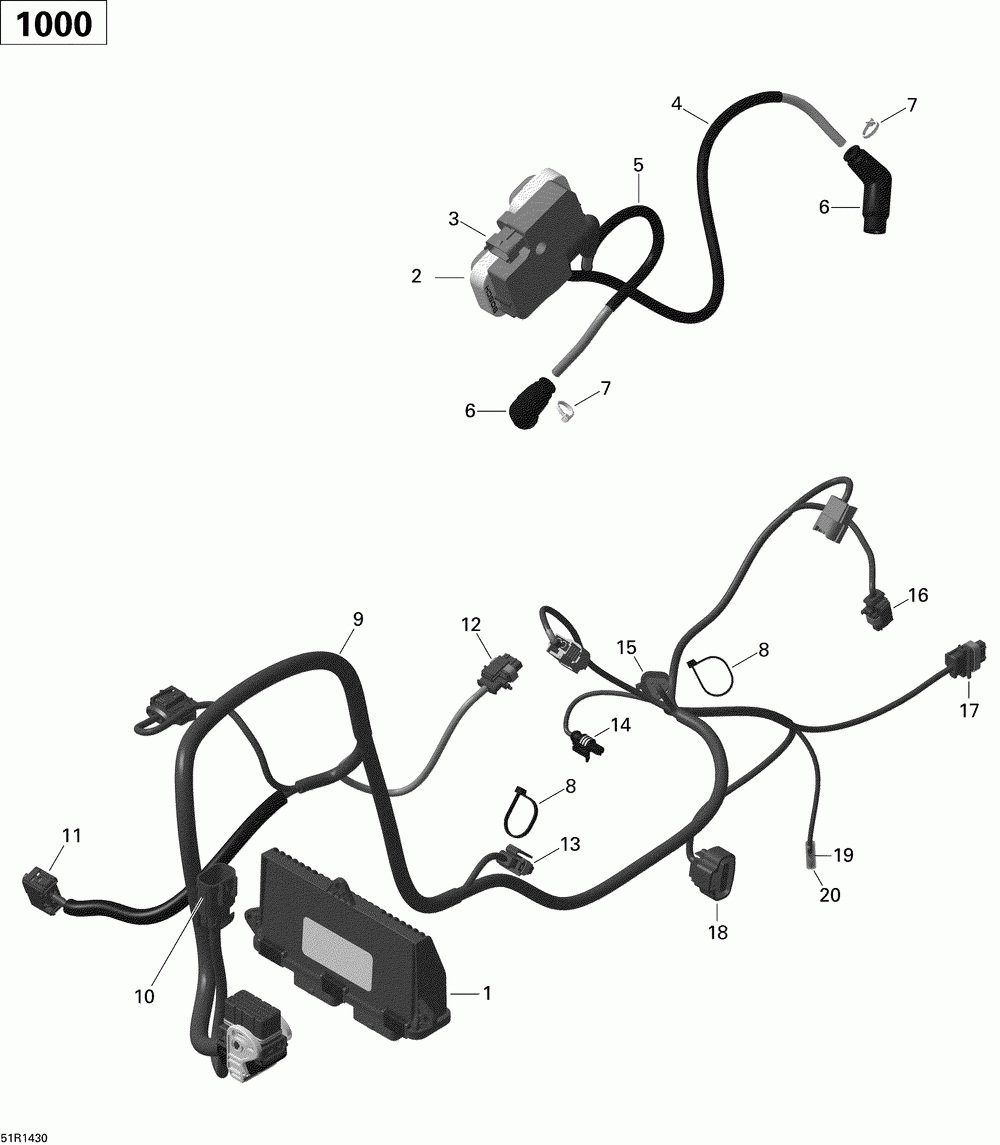

10- engine harness and electronic module _51r1430

#

oem код

название

цена

1

Module Ecu *ecu Module (model-north America )

Module Ecu *ecu Module (model-north America )

2

Bobine Allumage*coil-ignition (includes 2 To 3 )

Bobine Allumage*coil-ignition (includes 2 To 3 )

3

Корпус

Корпус

4

Cable Ass. *cable-assy 610 Mm Pto

Cable Ass. *cable-assy 610 Mm Pto

5

Cable-assy 365 Mm Mag

Cable-assy 365 Mm Mag

6

Spark Plug Connector

Spark Plug Connector

7

Tie Wrap*tie Wrap 142x 2.5mm (2.000 Per Pack)

Tie Wrap*tie Wrap 142x 2.5mm (2.000 Per Pack)

8

Attache *tie Rap

Attache *tie Rap

9

Cablage *wiring Harness (includes 9 To 20 )

Cablage *wiring Harness (includes 9 To 20 )

10

Корпус

Корпус

11

Корпус

Корпус

12

Bloc 3 Circ.mal*housing-tab

Bloc 3 Circ.mal*housing-tab

13

Bloc 2 Circ.mal*housing-tab

Bloc 2 Circ.mal*housing-tab

14

Bloc 1 Circ.mal*housing-tab (5.000 Per Pack)

Bloc 1 Circ.mal*housing-tab (5.000 Per Pack)

15

Корпус-папа

Корпус-папа

16

Bloc 2 Circ.mal*housing-tab

Bloc 2 Circ.mal*housing-tab

17

Bloc 3 Circ.mal*housing-tab

Bloc 3 Circ.mal*housing-tab

18

Logement Male *male Housing 4 Circ.

Logement Male *male Housing 4 Circ.

19

Etui Thermique *sheath-insulat (5.000 Per Pack)

Etui Thermique *sheath-insulat (5.000 Per Pack)

20

Cosse Femelle *terminal-femal (5.000 Per Pack)

Cosse Femelle *terminal-femal (5.000 Per Pack)
