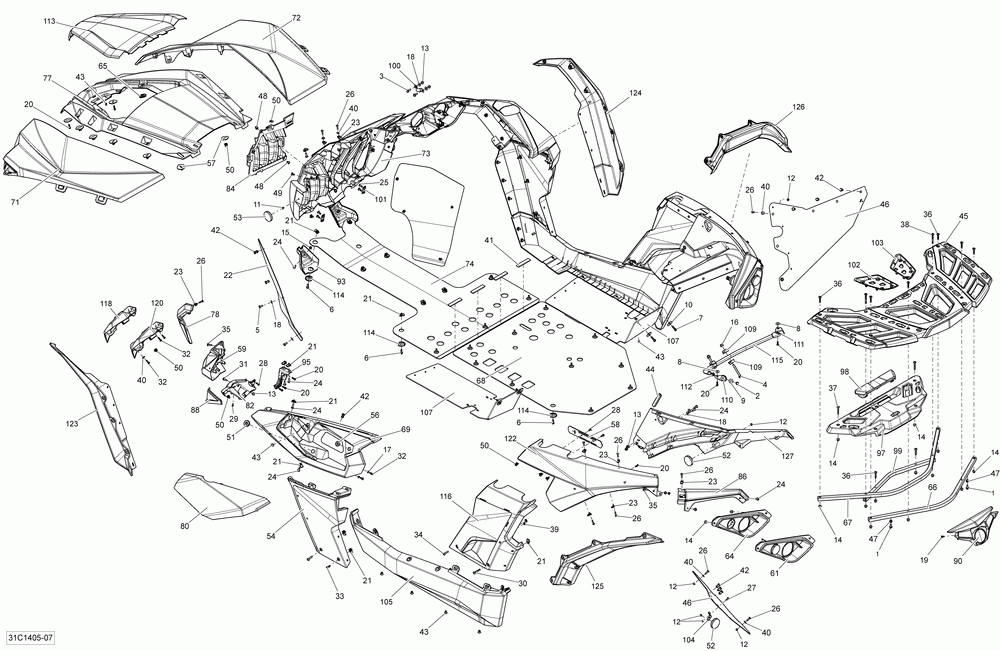

Корпус и аксессуары

Cam-am Maverick 1000, STD, XRS, XRS-DPS
Cam-am
#oem кодцена
1
207561634
Винт
2
207562544
Screw-hex.flange Din.6921 S.grip (10.000 Per Pack)
3
207662084
Screw-hex.flange Din.6921 (10.000 Per Pack)
4
207687044
Винт
5
210261680
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
6
210262080
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
7
210262580
Винт
8
224060201
Flat Washer (10.000 Per Pack)
9
224061201
Washer-flat (10.000 Per Pack)
10
224081301
Washer-flat (25.000 Per Pack)
11
233251434
Nut-flange Elastic Din.6926 (except Model-europe ) (4.000 Per Pack)
12
233251494
Nut-flange Elastic Din.6926 (5.000 Per Pack)
13
233261414
Гайка Din.6926 (отпускается по 10 шт)
14
233261434
Nut-flange Elastic Din.6926 (8.000 Per Pack)
15
233261494
Гайка Din.6926 (отпускается по 10 шт)
16
233281414
Гайка Din.6926 (отпускается по 10 шт)
17
234051410
Шайба Din.125a (отпускается по 10 шт)
18
234062670
Washer-flat Din.9021 A2 Black Oxide (10.000 Per Pack)
19
241151640
Screw-pt.hex.flange K50 X 16 (5.000 Per Pack)
20
241152060
Hex.washer Head Pt.screw K50 X 20 (5.000 Per Pack)
21
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
22
705007827
Fausse Aile *inner Fender
23
250000079
Extruded Panel Nut M5 X 0.8 (10.000 Per Pack)
24
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
25
250000129
Torx-truss M/s Gm6047m Nylon Patch (12.000 Per Pack)
26
250000130
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
27
250000145
Torx-truss M/s Gm6047m (model-europe ) (10.000 Per Pack)
28
250000146
Torx-screw Truss Head Pt.k50x16 (5.000 Per Pack)
29
250000202
Screw-tapp.hex.wr.hd.sltd. # 8 X 5/8 (5.000 Per Pack)
30
250000215
Винт Torx
31
250000284
Torx-truss M/s M6 X 25 Gm6047m
32
250000297
Винт
33
250000350
Torx-truss M/s Stlss Nylon Patch (5.000 Per Pack)
34
250000398
Torx-truss M/s Stlss Nylon Patch (4.000 Per Pack)
35
250000488
Torx-truss M/s Stlss (2.000 Per Pack)
36
250000646
Torx-t-30 M/s Oxyde Black M6 X 35
37
250000647
Torx-t-30 M/s Oxyde Black M6 X 45
38
250000648
Torx-t30 M/s Oxyde Black M6 X 60
39
250100129
Ecrou Pression *push-nut (2.000 Per Pack)
40
250200025
Rondelle M5 *washer M5 (10.000 Per Pack)
41
291001932
Tampon *pad
42
293150089
Plastique Rivet Tuflok (25.000 Per Pack)
43
293150104
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
44
293200093
Anneau Neoprene*neoprene Seal (8.000 Per Pack)
45
715001852
Ens Rack Arr *rear Rack Kit
46
705007828
Дефлектор
47
293450274
Вставка
48
293830005
Butee *rubber Stopper (5.000 Per Pack)
49
414644300
Крепеж-дротик(отпускается по 10 шт)
50
517302785
Pince *clip (10.000 Per Pack)
51
517303756
Втулка
52
705002408
Reflecteur *reflector (model-europe )
53
705002409
Reeflecteur Reflector (except Model-europe )
54
705002887
Panneau Gauche *lh.panel (model-std Yellow )
54
705002888
Panneau Droit *rh. Panel (model-std Yellow )
54
705007358
Panneau Gauche *lh.panel (model-white )
54
705007359
Panneau Droit *rh Panel (model-white )
54
705007360
Panneau Gauche *lh.panel (model-red )
56
705003264
Люверс
57
705003841
Plaque D Appuie*support
58
705004261
Plaque Soutien *support
59
705004508
Facia Gauche *facia Lh
59
705004509
Facia Droit *facia Rh
61
705004731
Facia Gauche *left Facia (except Model-europe )
61
705004732
Facia Droit *right Facia (except Model-europe )
64
705004927
Facia Gauche *left Facia (model-europe )
64
705004926
Facia Droit *right Facia (model-europe )
65
705005156
Washer-oblong
66
705005469
Трубка
67
705005470
Трубка
68
705005480
Plaque *skid Plate
69
705007978
Aile Avant *front Fender (model-std White )
69
705007979
Aile Av. Dr. *rh. Fr. Fender (model-std White )
69
705006558
Aile Avant *front Fender (model-xrs )
69
705006559
Aile Av. Dr. *rh. Fr. Fender (model-xrs )
69
705005779
Aile Avant *front Fender (model-yellow )
69
705005780
Aile Av. Dr. *rh. Fr. Fender (model-yellow )
69
705007336
Aile Avant *front Fender (model-red )
69
705007337
Aile Av. Dr. *rh. Fr. Fender (model-red )
71
705005781
Capot *hood (model-std Yellow )
71
705007348
Capot *hood (model-white )
71
705007350
Capot *hood (model-red )
72
705005782
Capot *hood (model-std Yellow )
72
705007349
Capot *hood (model-white )
72
705007351
Capot *hood (model-red )
73
705005784
Grille Avant *radiator Grill
74
705005798
Plaque Protect *skid Plate
77
705005821
Капот
78
705005824
Couv. Pare-choc*bumper Cap (model-black )
78
705005825
Couv. Pare-choc*bumper Cap (model-black )
78
705007352
Couv. Pare-choc*bumper Cap (model-std White )
78
705007353
Couv. Pare-choc*bumper Cap (model-std White )
78
705007354
Couv. Pare-choc*bumper Cap (model-xrs White )
78
705007355
Couv. Pare-choc*bumper Cap (model-xrs White )
80
705007983
Couvre Aile *cover Fender (model-std White )
80
705007984
Couvre Aile *cover Fender (model-std White )
80
705006566
Couvre Aile *cover Fender (model-xrs )
80
705006567
Couvre Aile *cover Fender (model-xrs )
80
705005852
Couvre Aile *cover Fender (model-yellow )
80
705005853
Couvre Aile *cover Fender (model-yellow )
80
705007340
Couvre Aile *cover Fender (model-red )
80
705007342
Couvre Aile *cover Fender (model-red )
82
705007981
Enjoliveur *fender Trim (model-std White )
82
705007982
Enjoliveur *fender Trim (model-std White )
82
705006562
Enjoliveur *fender Trim (model-xrs )
82
705006563
Enjoliveur *fender Trim (model-xrs )
82
705005953
Enjoliveur *fender Trim (model-yellow )
82
705005954
Enjoliveur *fender Trim (model-yellow )
82
705007338
Enjoliveur *fender Trim (model-red )
82
705007341
Enjoliveur *fender Trim (model-red )
84
705005983
Grille Arr. *radiator Grill
84
705005984
Grille Arr. *radiator Grill
86
705006583
Enjoliveur *trim (model-black )
86
705006584
Enjoliveur *trim (model-black )
86
705007370
Enjoliveur *trim (model-std White )
86
705007371
Enjoliveur *trim (model-std White )
86
705005990
Enjoliveur *trim (model-yellow )
86
705005991
Enjoliveur *trim (model-yellow )
86
705007372
Enjoliveur *trim (model-red )
86
705007373
Enjoliveur *trim (model-red )
88
705005992
Enjoliveur *facia Trim
88
705005993
Enjoliveur *facia Trim
90
705005994
Суппорт
93
705006038
Plaque *skid Cap
93
705006039
Plaque *skid Cap
95
705006078
Support Facia *facia Support
95
705006079
Support Facia *facia Support
97
705006128
Porte-bagage *central Rack
98
705006132
Крышка
99
705006279
Трубка
100
705006623
Хомут
101
705006635
Support *bracket
102
705006713
Couvercle *rack Cover
103
705006714
Couvercle *rack Cover
104
705006828
Sup. Reflect. *reflect. Sup. (model-europe )
105
705006991
Panneau Cent. *middle Panel
105
705006992
Panneau Cent. *middle Panel
107
705007038
Plaque Protect.*skid Plate
109
705007044
Attache Arr. *rear Clip
110
705007045
Support Facia *facia Support
111
705007046
Support Facia *facia Support
112
705007047
Connecteur Tube*tube Connector
113
705007060
Капот
114
705007171
Чашка
115
705007299
Трубка
116
705006000
Panneau Lat. *side Panel (model-std Yellow )
116
705006001
Panneau Lat. *side Panel (model-std Yellow )
116
705007362
Panneau Lat. *side Panel (model-white )
116
705007363
Panneau Lat. *side Panel (model-white )
116
705007364
Panneau Lat. *side Panel (model-red )
116
705007365
Panneau Lat. *side Panel (model-red )
118
705007497
Grill Pare-choc*bumper Grill (except Model-europe )
118
705007498
Grill Pare-choc*bumper Grill (except Model-europe )
120
705007499
Grill Pare-choc*bumper Grill (model-europe )
120
705007500
Grill Pare-choc*bumper Grill (model-europe )
122
705006579
Aile Arr. *rear Fender (model-black )
122
705006580
Aile Arr. *rear Fender (model-black )
122
705007366
Aile Arr. *rear Fender (model-std White )
122
705007367
Aile Arr. *rear Fender (model-std White )
122
705005801
Aile Arr. *rear Fender (model-yellow )
122
705005802
Aile Arr. *rear Fender (model-yellow )
122
705007368
Aile Arr. *rear Fender (model-red )
122
705007369
Aile Arr. *rear Fender (model-red )
123
705008988
Deflecteur *deflector (model-red )
124
705008989
Deflecteur *deflector (model-red )
125
705007637
Deflecteur *deflector (model-red )
126
705007638
Deflecteur *deflector (model-red )
127
705007910
Fausse Aile *inner Fender
127
705007911
Fausse Aile *inner Fender
128
293250318
Anneau Etanche *seal-tray
