Электрика

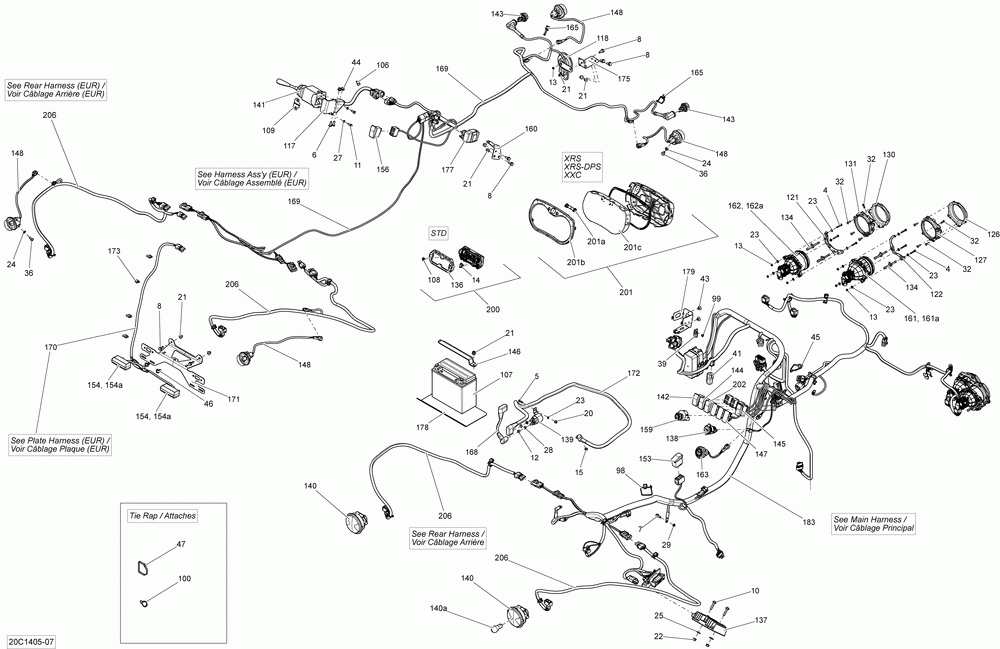

Cam-am Maverick 1000, STD, XRS, XRS-DPS
Cam-am
#oem кодцена
4
207142544
Screw-hex.cap Din.933 (4.000 Per Pack)
5
207151644
Screw-hex.cap Din.933 (10.000 Per Pack)
6
207361644
Screw-hex.cap Din.933 S.grip (25.000 Per Pack)
7
207561644
Screw-hex.flange Din.6921 S.grip (25.000 Per Pack)
8
207661644
Screw-hex.flange Din.6921 (25.000 Per Pack)
10
207663034
Screw-hex.flange Din.6921 (5.000 Per Pack)
11
210251680
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
12
232061600
Nut-hexagonal Din.934a2 (5.000 Per Pack)
13
232541414
Гайка-стоп
14
715900265
Bouton *button
15
232561434
Гайка с тефлоном
20
233251434
Nut-flange Elastic Din.6926 (4.000 Per Pack)
21
233261414
Гайка Din.6926 (отпускается по 10 шт)
22
233261494
Гайка Din.6926 (отпускается по 10 шт)
23
234051410
Шайба Din.125a (отпускается по 10 шт)
24
234061410
Washer-flat M6 Din.125a (10.000 Per Pack)
25
234062670
Washer-flat Din.9021 A2 Black Oxide (10.000 Per Pack)
27
234151401
Washer-lock Helical Din.127b (10.000 Per Pack)
28
234161601
Washer-lock Helical Din.127b-a2 (5.000 Per Pack)
29
234461608
Washer-lock Serrated Din.6798a-a2 (5.000 Per Pack)
32
250000084
Phil-truss Pt Gm6047m K40 X 16 (5.000 Per Pack)
36
250000439
Torx-truss M/s S.grip Gm6047m (2.000 Per Pack)
39
270000141
Clip *clip (5.000 Per Pack)
41
278002704
Capuchon *connect-cap
43
293150103
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
44
293450274
Вставка
45
293730040
Шуруп
46
293750002
Tie Rap 142mm *tie-rap 142mm (10.000 Per Pack)
47
293750008
Tie Rap 368mm *tie-rap 368mm (10.000 Per Pack)
98
293750063
Clip Tie-rap *clip Tie-rap
99
390402400
Rivet-pop 3/16 *rivet-pop 3/16 (50.000 Per Pack)
100
414115200
Tie Rap 188mm *tie-rap 188mm (50.000 Per Pack)
106
414227300
Clip - Spring (10.000 Per Pack)
107
410301203
Batterie Ytx20l*battery18amps(wet Gel)
108
704901270
Наклейка
109
704902614
Etiq. Clignotan*label Flasher
117
709400810
Суппорт
118
710000983
Клаксон
121
710001115
Support Hd *light Sup Hr
121
710001036
Sup Lumire Hg *light Sup Hl
122
710001094
Sup Lumire Bdr*light Sup Lrh
122
710001037
Sup Lumire Bga*light Sup Llh
126
710001081
Logement Avbd *housing Flrh
126
710001083
Logement Avbg *housing Fllh
127
710001082
Logement Arbd *housing Rlrh
127
710001084
Logement Arbg *housing Rlgh
130
710001085
Logement Avhd *housing Fhrh
130
710001087
Logement Avhg *housing Fhgh
131
710001086
Logement Arhd *housing Rhgh
131
710001088
Logement Arhg *housing Rhgh
134
710001147
Vis Ajust. *setting Screw
136
710001183
Anneau Cadran *trim Ring
137
710001191
Регулятор
138
710001248
Дополнительная розетка DC
139
710001364
Solenoide Dem. *relay-starter
140
710001645
Feu Arriere *tail Light
141
710001721
Bras Clignotant*turn Signal Le
142
710001725
Inter Hi Low *inter Hi Low
143
710001726
Lumire De Jour*day Light
144
710001737
Датчик
145
710001781
Inter Dps *inter Dps
146
710001916
Attache Batteri*battery Holder
147
710001999
Capuchon *plug (xrs-dps )
148
710002047
Clignotant *flasher
153
710002053
Interupteur *switch
154
710002055
Lumiere Immatri*licence Light
156
710002076
Датчик
159
710002327
Inter Allumage *ignition
160
710002408
Суппорт
161
710002524
Phare Basse *low Beam
162
710002525
Phare Haute *high Beam
163
710002594
Bouton Demarrag* Start Bouton
165
710002896
Ancrage Tie-rap*tie-rap Clip
168
710003123
Cable Positif *cable-positive
169
710003127
Cablage Ass. *harness-assy.
170
710003128
Cablage Ass. *harness-assy.
171
710003150
Support Lumire*light Support
172
710003151
Cable Positif *cable-positive
173
710003168
Tie-rap *tie-rap
175
710003170
Суппорт
177
710003239
Unit Cligno. *flasher Unit
178
710003265
Deflecteur *heat Deflector
179
710003335
Support Fusible*fuse Holder
183
710003907
Cablage Ass. *harness-assy.
201
710003535
Indicateur *speedometer
202
710003541
Inter Pps Sport*switch Sport
206
710003680
Cablage Arrire*rear Harness (except Europe )
206
710003681
Cablage Arrire*rear Harness (europe )
140a
520000758
Ampoule *bulb (10.000 Per Pack)
154a
219800128
Ampoule *bulb
161a
415129249
Ampoule Halogen*bulb-hal.hb3
162a
415129249
Ampoule Halogen*bulb-hal.hb3
201a
415129355
Кнопки спидометра
201b
415129348
Защитное кольцо
201c
415129349
Стекло
