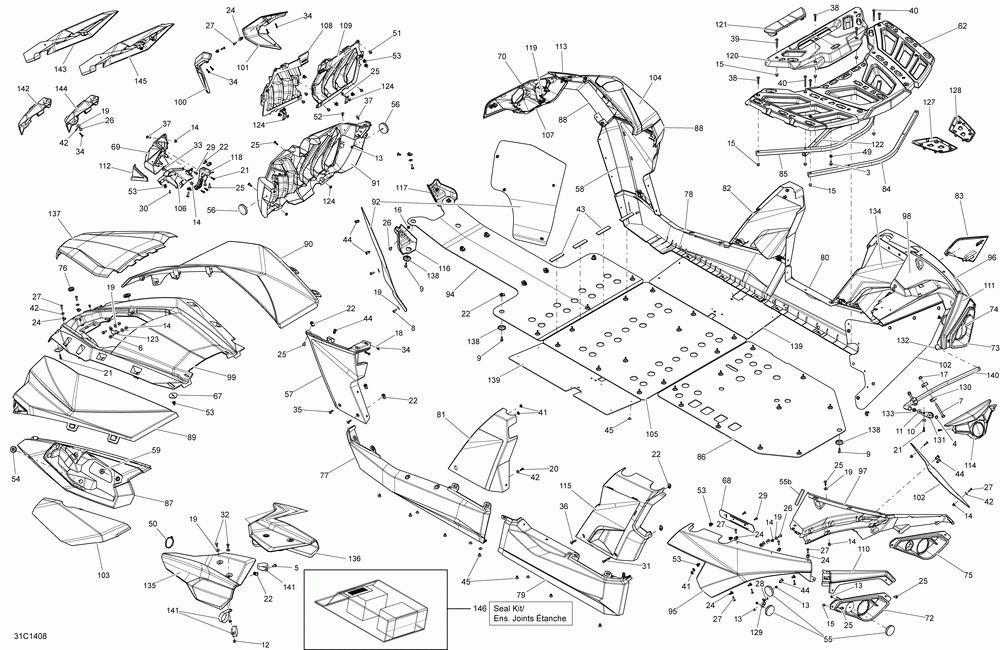

Корпус и аксессуары

Cam-am Maverick MAX 1000, STD, XRS, XRS-DPS
Cam-am
#oem кодцена
3
207561634
Винт
4
207662544
Screw-hex.flange Din.6921 (25.000 Per Pack)
5
210262040
Screw-forming Hex.hd.flange M6 X 20 (5.000 Per Pack)
6
207662084
Screw-hex.flange Din.6921 (10.000 Per Pack)
7
207687044
Винт
8
210261680
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
9
210262080
Screw-forming Hex.hd.fl.gm6174m (10.000 Per Pack)
10
224060201
Flat Washer (10.000 Per Pack)
11
224061201
Washer-flat (10.000 Per Pack)
12
233061414
Nut-flange Hexagonal Din.6927 (10.000 Per Pack)
13
233251494
Nut-flange Elastic Din.6926 (5.000 Per Pack)
14
233261414
Гайка Din.6926 (отпускается по 10 шт)
15
233261434
Nut-flange Elastic Din.6926 (8.000 Per Pack)
16
233261494
Гайка Din.6926 (отпускается по 10 шт)
17
233281414
Гайка Din.6926 (отпускается по 10 шт)
18
234051410
Шайба Din.125a (отпускается по 10 шт)
19
234062670
Washer-flat Din.9021 A2 Black Oxide (10.000 Per Pack)
21
241152060
Hex.washer Head Pt.screw K50 X 20 (5.000 Per Pack)
22
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
24
250000079
Extruded Panel Nut M5 X 0.8 (10.000 Per Pack)
25
250000128
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
26
250000129
Torx-truss M/s Gm6047m Nylon Patch (12.000 Per Pack)
27
250000130
Torx-truss M/s Gm6047m Nylon Patch (10.000 Per Pack)
28
250000145
Torx-truss M/s Gm6047m (10.000 Per Pack)
29
250000146
Torx-screw Truss Head Pt.k50x16 (5.000 Per Pack)
30
250000202
Screw-tapp.hex.wr.hd.sltd. # 8 X 5/8 (5.000 Per Pack)
31
250000215
Винт Torx
32
250000261
Torx-truss M/s Gm6047m M6 X 16 (12.000 Per Pack)
33
250000284
Torx-truss M/s M6 X 25 Gm6047m
34
250000297
Винт
35
250000350
Torx-truss M/s Stlss Nylon Patch (5.000 Per Pack)
36
250000398
Torx-truss M/s Stlss Nylon Patch (4.000 Per Pack)
37
250000488
Torx-truss M/s Stlss (2.000 Per Pack)
38
250000646
Torx-t-30 M/s Oxyde Black M6 X 35
39
250000647
Torx-t-30 M/s Oxyde Black M6 X 45
40
250000648
Torx-t30 M/s Oxyde Black M6 X 60
41
250100129
Ecrou Pression *push-nut (2.000 Per Pack)
42
250200025
Rondelle M5 *washer M5 (10.000 Per Pack)
43
291001932
Tampon *pad
44
293150089
Plastique Rivet Tuflok (25.000 Per Pack)
45
293150104
Rivet-pop 3/16 *pop Rivet 3/16 (25.000 Per Pack)
49
293450274
Вставка
50
293750008
Tie Rap 368mm *tie-rap 368mm (10.000 Per Pack)
51
293830005
Butee *rubber Stopper (5.000 Per Pack)
52
414644300
Крепеж-дротик(отпускается по 10 шт)
53
517302785
Pince *clip (10.000 Per Pack)
54
517303756
Втулка
55
705002408
Reflecteur *reflector
56
705002409
Reeflecteur Reflector
57
705002887
Panneau Gauche *lh.panel
57
705007358
Panneau Gauche *lh.panel
57
705007360
Panneau Gauche *lh.panel
58
705002888
Panneau Droit *rh. Panel
58
705007359
Panneau Droit *rh Panel
58
705007361
Panneau Droit *rh.panel
59
705003264
Люверс
62
715001852
Ens Rack Arr *rear Rack Kit
67
705003841
Plaque D Appuie*support
68
705004261
Plaque Soutien *support
69
705004508
Facia Gauche *facia Lh
70
705004509
Facia Droit *facia Rh
72
705004731
Facia Gauche *left Facia
73
705004732
Facia Droit *right Facia
74
705004926
Facia Droit *right Facia (model-europe )
75
705004927
Facia Gauche *left Facia (model-europe )
76
705005156
Washer-oblong
77
705005423
Panneau Bas *lower Panel
78
705005424
Panneau Bas *lower Panel
79
705005425
Panneau Bas *lower Panel
80
705005426
Panneau Bas *lower Panel
81
705005427
Panneau De Cage*cage Panel
81
705007421
Panneau De Cage*cage Panel
81
705007423
Panneau De Cage*cage Panel
82
705005428
Panneau De Cage*cage Panel
82
705007422
Panneau De Cage*cage Panel
82
705007424
Panneau De Cage*cage Panel
83
705005437
Couvercle *panel Cover
83
705007419
Couvercle *panel Cover
83
705007420
Couvercle *panel Cover
84
705005469
Трубка
85
705005470
Трубка
86
705005480
Plaque *skid Plate
87
705005779
Aile Avant *front Fender
87
705006558
Aile Avant *front Fender
87
705007336
Aile Avant *front Fender
88
705005780
Aile Av. Dr. *rh. Fr. Fender
88
705006559
Aile Av. Dr. *rh. Fr. Fender
88
705007337
Aile Av. Dr. *rh. Fr. Fender
89
705005781
Капот
89
705007348
Капот
89
705007350
Капот
90
705007351
Капот
90
705005782
Капот
90
705007349
Капот
91
705005784
Grille Avant *radiator Grill
92
705007827
Fausse Aile *inner Fender
94
705005798
Plaque Protect *skid Plate
95
705005801
Aile Arr. *rear Fender
95
705006579
Aile Arr. *rear Fender
95
705007368
Aile Arr. *rear Fender
96
705007369
Aile Arr. *rear Fender
96
705005802
Aile Arr. *rear Fender
96
705006580
Aile Arr. *rear Fender
97
705007910
Fausse Aile *inner Fender
98
705007911
Fausse Aile *inner Fender
99
705005821
Капот
100
705005824
Couv. Pare-choc*bumper Cap
100
705007354
Couv. Pare-choc*bumper Cap (model-white )
100
705007356
Couv. Pare-choc*bumper Cap
101
705007357
Couv. Pare-choc*bumper Cap
101
705005825
Couv. Pare-choc*bumper Cap
101
705007355
Couv. Pare-choc*bumper Cap
102
705007828
Дефлектор
103
705007340
Couvre Aile *cover Fender
103
705005852
Couvre Aile *cover Fender
103
705006566
Couvre Aile *cover Fender
104
705005853
Couvre Aile *cover Fender
104
705006567
Couvre Aile *cover Fender
104
705007342
Couvre Aile *cover Fender
105
705005939
Plaque *skid Plate
106
705005953
Enjoliveur *fender Trim
106
705006562
Enjoliveur *fender Trim
106
705007338
Enjoliveur *fender Trim
107
705007341
Enjoliveur *fender Trim
107
705005954
Enjoliveur *fender Trim
107
705006563
Enjoliveur *fender Trim
108
705005983
Grille Arr. *radiator Grill
109
705005984
Grille Arr. *radiator Grill
110
705007372
Enjoliveur *trim
110
705005990
Enjoliveur *trim
110
705006583
Enjoliveur *trim
111
705007373
Enjoliveur *trim
111
705005991
Enjoliveur *trim
111
705006584
Enjoliveur *trim
112
705005992
Enjoliveur *facia Trim
112
705005993
Enjoliveur *facia Trim
114
705005994
Суппорт
115
705007364
Panneau Lat. *side Panel
115
705006000
Panneau Lat. *side Panel
115
705007362
Panneau Lat. *side Panel
116
705006038
Plaque *skid Cap
117
705006039
Plaque *skid Cap
118
705006078
Support Facia *facia Support
119
705006079
Support Facia *facia Support
120
705006128
Porte-bagage *central Rack
121
705006132
Крышка
122
705006279
Трубка
123
705006623
Хомут
124
705006635
Support *bracket
127
705006713
Couvercle *rack Cover
128
705006714
Couvercle *rack Cover
129
705006828
Sup. Reflect. *reflect. Sup. (model-europe )
130
705007044
Attache Arr. *rear Clip
131
705007045
Support Facia *facia Support
132
705007046
Support Facia *facia Support
133
705007047
Connecteur Tube*tube Connector
134
705007624
Panneau Lat. *side Panel
134
705007054
Anneau Lat. *side Panel
134
705008458
Panneau Lat. *side Panel
135
705007058
Couvercle Cage *gace Cover (model-xrs )
135
705007425
Couvercle Cage *gace Cover (model-xrs )
136
705007059
Couvercle Cage *gace Cover (model-xrs )
136
705007426
Couvercle Cage *gace Cover (model-xrs )
137
705007060
Капот
138
705007171
Чашка
139
705008421
Plaque Protect.*skid Plate
140
705007299
Трубка
142
705007497
Grill Pare-choc*bumper Grill
143
705007498
Grill Pare-choc*bumper Grill
144
705007499
Grill Pare-choc*bumper Grill (model-europe )
145
705007500
Grill Pare-choc*bumper Grill (model-europe )
55b
293200093
Anneau Neoprene*neoprene Seal (8.000 Per Pack)
